    In the initial versions, this system uses AN/MPQ-53 passive Phased Array radar, in the next generation AN/MPQ-65 passive phased array radar and in the latest generation of this system it use active phased array radar using GaN semiconductor called LTAMDS.

    The AN/MPQ-53 and AN/MPQ-65 radars have a 120 degree coverage angle limit. Therefore, the lack of full coverage was one of the major weaknesses of this system; But in the new generation of radar, this problem is solved and the coverage angle is 360 degrees.

    The Patriot system mainly uses two missiles, PAC-2 and PAC-3. To use the PAC-3 missile, it is necessary to have MPQ-65 radar. PAC-2 missiles have a range of more than 100 km and are commonly used to hunt aerodynamic targets such as aircraft, drones, warplanes, AWACS, etc. and PAC-3 missiles with a range of 20-35 km (depending on the version) are more suitable for hunting ballistic and cruise missiles.

    Currently, 16 US allies use the Patriot system; Saudi Arabia is the largest user of the Patriot system after the United States.

    Patriot air defense system specifications:
    Maximum range: +100 km (PAC-2)
    Radar range: +100 km
    Radar type: Phased array
    Radar band: C band
    Number of radar elements: 5000
    Missile length: 8.5 m (PAC-2)
    Missile weight: 900 kg
    Max number of missiles loaded per launcher: 4 rounds (PAC-2) – 16 rounds (PAC-3)
    Origin: USA

    Read more:
    Military Knowledge: MIM-103C PAC-2 missile
    Military Knowledge: MIM-104F PAC-3 MSE missile

    Click to see the full size image

    Patriot Missile System collection of posters in Persian, Arabic, Kurdish, Azeri, Russian for Social Media:

  • Military Knowledge: MIM-104F PAC-3 MSE missile

    Military Knowledge: MIM-104F PAC-3 MSE missile

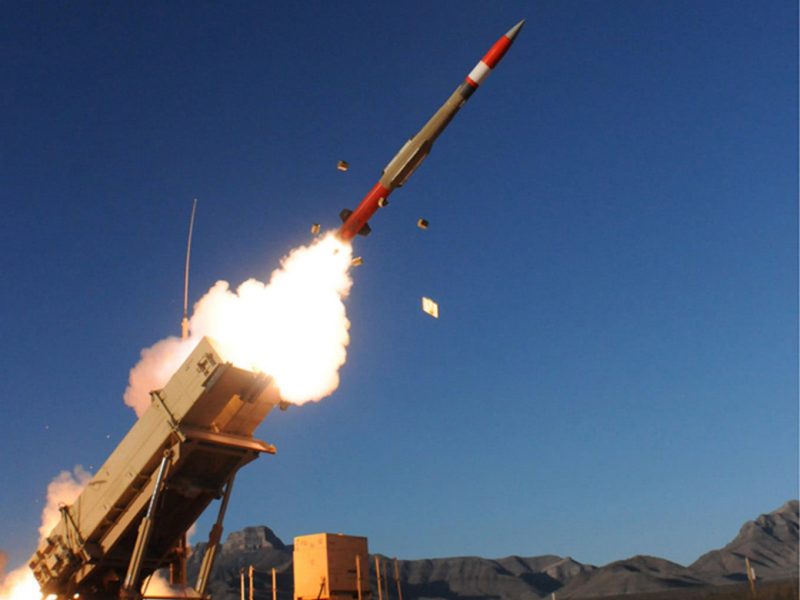

    The PAC-3 MSE missile with a length of 2.5 meters and a weight of 312 kg has a range of 40 km and a maximum altitude of 20 km, and due to its small size, it can install 16 of these missiles on the Patriot launcher.

    The seeker of this missile is based on active radar homing, which receive the target coordinates by AN/MPQ65 radar and the navigation is based on the missile’s own radar. This reduces the volume of calculations and removes the limit on the number of conflicting targets in the system at the same time.

    The radar of the PAC-3 has increased detection and tracking ranges. It also has improved discrimination abilities. The radar can discriminate whether or not the aircraft is manned, or which of multiple re-entering ballistic objects are carrying ordnance. Also the software of the PAC-3 ensures that ballistic missiles with chemical warheads or with early release submunitions are destroyed at a certain altitude.

    However, the use of active radar guidance has increased the cost of missile, with each PAC-3 MSE missile costing more than $ 9 million for US partners and about $ 5 million for the US military.

    The missile has a small High Explosive Fragmentation (HE-FRAG) warhead to enhance the kill probability, however it may be not enough for engaging with heavy aircraft targets such as warplanes and bombers. So for this reason, this missile is used in combination with the PAC-2 missile in the Patriot system.

    The target hunting mechanism in the PAC-3 missile is based on Hit-To-Kill. In this method, kinetic energy is the main factor in destroying the target, but in order to increase the destruction and self-destructive ability, there is also a small warhead of high explosive fragmentation type in this missile.

    MIM-104F PAC-3 missile specifications:
    Range: 40 km
    Maximum (engage) altitude: 20 km
    Missile length: 2.5 meters
    Missile weight: 320 kg
    Origin: USA

    Read more:
    Military Knowledge: Patriot Missile System
    Military Knowledge: MIM-103C PAC-2 missile
