  • Military Knowledge: Kaman 22 Combat Drone

    Military Knowledge: Kaman 22 Combat Drone

    “Kaman 22” is a new reconnaissance combat drone of the Iranian Air Force, equipped with various combat, optical and electronic warfare systems. This drone has the ability to identify, monitor and collect information and photograph distant targets and is designed based on the operational needs of the Iranian Air Force and is in the final stages of production.

    The Kaman 22 drone with a range of 3,000 km and a 24-hour flight duration and carrying a variety of smart ammunition will bring a high combat capability to the Iranian army.

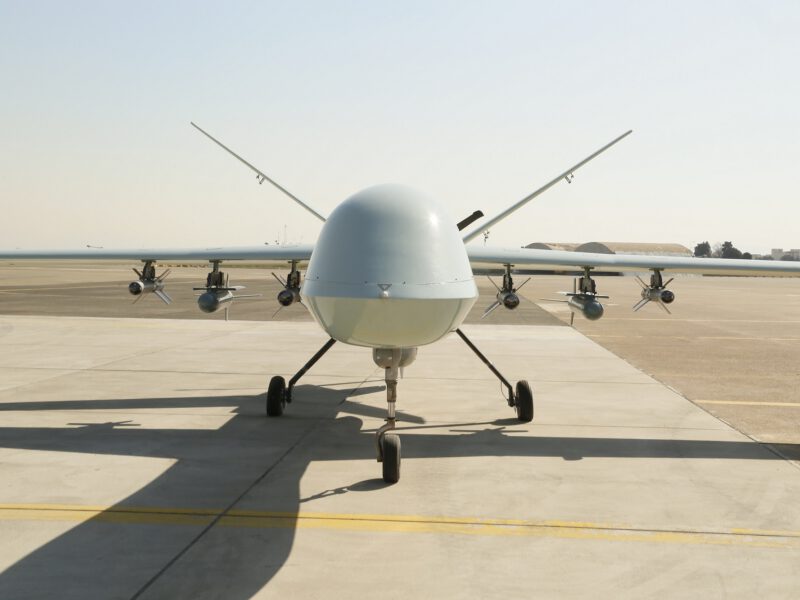

    The Kaman 22 drone uses a design almost identical to the US MQ-9B drone and has seven pylons for carrying weapons, with six pylons under the two wings and one pylon under the fuselage.

    In the position under the wing, four Qaem smart bomb, two unidentified glider bombs and below the fuselage an electronic warfare pod can be seen. Next to the drone is the Sattar-4 laser guidance bomb and the Shahin electronic warfare pod (AN / ALQ-101).

    Specifications:
    Length: 6.5 m
    Wingspan: 17 m
    Height: 2.5 m
    Gross weight: 1,700 kg
    Powerplant: Unknown
    Service ceiling: 8,000 m
    Weapons payload: 300 kg
    Range: 3,000 km
    Endurance: 24 hours

    Click to see the full size map
  • Iran’s ‘Kaman 22’ combat drone + Images

    Iran’s ‘Kaman 22’ combat drone + Images

    Iran’s Air Force commander visiting ‘Kaman 22 project’ said: This drone is armed with weapons, optical and ECM pods and is about to finish the production phase.

    It is the first wide body drone of Iran and has a flight duration of 24 hours and range of more than 3,000 km.
    It can carry 300 kg of payload. This drone resembles American drone MQ-9.

    General Nasirzadeh said recently that Iran’s Air Force used this drone to control and guide the drill fields lately.

    The previous model of Kaman, i.e., Kaman 12, was unveiled in 2018 which has a flight duration of 10 hours and range of 1,000 km. It was used in Iran’s army drill last year to control and observe the drill area.
