  • Military Knowledge: Eitan (Heron TP) Drone

    Military Knowledge: Eitan (Heron TP) Drone

    Introduction

    The Eitan UAV is rooted in Israel’s legacy of innovation in unmanned aerial systems. The primary driver behind the development of advanced drones in Israel was the intelligence failures during the 1973 Yom Kippur War—an experience that underscored the urgent need for real-time, persistent situational awareness for ground and air forces, without risking pilot lives. Today, UAVs account for nearly 80% of the Israeli Air Force’s total operational flight hours, highlighting their central role in modern military strategy.

    Israel Aerospace Industries (IAI), originally founded in 1953 under the name Bedek Aviation, evolved from a modest aircraft repair facility into a leading aerospace and defense manufacturer. It took on the mission of bridging the intelligence gap exposed by past conflicts.

    The predecessor to the Eitan—marketed as Heron TP—is the highly successful Heron-1, also known as Shoval or Machatz-1, which first flew in 1994. Heron became the backbone of Israel’s drone fleet, logging hundreds of thousands of operational flight hours both domestically and with over 13 international clients. It played a critical role in strategic and tactical ISR (Intelligence, Surveillance, Reconnaissance) missions, including operations in Gaza and Lebanon. Heron’s design philosophy centered on three pillars: long endurance, multi-role flexibility, and high levels of automation—principles that later formed the foundation for the more advanced Eitan platform.

    The Heron-1 has the following specifications: its wingspan is 16.6 meters and its length is 8.5 meters long. The drone is capable of climbing to an altitude of 10,000 meters (30,000 feet) and has an endurance of more than 50 hours. The Heron-1 has a maximum takeoff weight of about 1,150 kilograms and can carry up to 250 kilograms of surveillance and combat payload under the wings.

    The evolution of the Heron series drones to the Eitan (Heron TP)

    Strategic Shift and Operational Demands

    In the early 2000s, Israel’s strategic threat landscape underwent significant transformation. The Israeli regime faced a complex network of non-state actors equipped with advanced technologies, as well as hostile state adversaries located beyond its immediate borders. These evolving threats exposed the limitations of existing UAVs like the Heron, particularly in terms of altitude, range, and payload capacity.

    This shift created an urgent operational need for a High-Altitude Long-Endurance (HALE) platform capable of multi-role intelligence gathering across vast geographic areas. The new UAV had to sustain flight for over 24 hours, carry heavy payloads—including advanced radar systems, optical sensors, and signal intelligence equipment—and operate at altitudes that would place it beyond the reach of most air defense systems.

    More than just an intelligence-gathering tool, this platform was designed to support the entire operational cycle, including joint missions with fighter aircraft. Its role was to reinforce Israel’s proactive military doctrine known as the “campaign between wars,” aimed at neutralizing threats before they escalate into full-scale conflict.

    Israel’s “Campaign Between Wars” strategy is built on the premise that the country periodically faces short but significant military confrontations. The core objective of this doctrine is to delay the onset of future conflicts while simultaneously strengthening Israel’s strategic posture—ensuring that the quasi-state regime is well-prepared for the next round of tensions.

    The development path of the Eitan UAV reflects Israel’s distinctive model of defense innovation, which prioritizes rapid advancement and operational feedback over linear, incremental progress. The program was first publicly acknowledged in April 2004 by the Israeli Air Force magazine, which reported the flight of two prototype units. In March 2005, a brief collaboration was initiated with the U.S.-based Aurora Flight Sciences to develop a platform named “Orion,” though the effort did not yield results. Conflicting reports about Eitan’s maiden flight—citing both July 2006 and January 2007—suggest a development process marked by continuous testing and iterative refinement.

    The drone was officially unveiled on October 8, 2007, at Tel Nof Airbase. The showcased configuration featured a large Synthetic Aperture Radar (SAR) pod mounted beneath the fuselage, a multispectral electro-optical sensor suite, and signal intelligence (SIGINT) arrays—confirming its role as a versatile, multi-mission platform.

    Notably, Eitan was reportedly deployed during Operation Cast Lead in Gaza (2008–2009), prior to its formal induction into the Israeli Air Force’s 210th “White Eagle” Squadron in December 2010. This pattern of combat deployment before official service entry exemplifies Israel’s “spiral” development approach, where systems are battle-tested before public rollout—a critical advantage in the competitive global defense market.

    Technical Specifications and Design Features of the Eitan UAV

    The Eitan is a large unmanned aerial vehicle, measuring 14 meters in length with a wingspan of 26 meters—comparable to that of a Boeing 737 passenger jet. These dimensions are essential for generating sufficient lift to support long-endurance, high-altitude missions.

    Its airframe is constructed entirely from lightweight composite materials, offering a high strength-to-weight ratio that enhances both performance and durability. The aerodynamic design features a cantilever wing structure and a twin-boom tail configuration. This layout not only provides excellent flight stability but also preserves unobstructed space beneath the fuselage, allowing for the integration of large payloads such as advanced sensors and radar systems.

    The Eitan UAV is powered by a Pratt & Whitney Canada PT6A-67A turboprop engine, delivering 1,200 horsepower. This robust propulsion system enables the drone to reach altitudes exceeding 45,000 feet (approximately 14,000 meters)—well above commercial air traffic and beyond the effective range of most short-range air defense systems.

    With a top speed of 407 kilometers per hour, Eitan offers sufficient velocity for tactical responsiveness, allowing it to adapt quickly to dynamic mission requirements while maintaining high-altitude endurance.

    Pratt & Whitney Canada PT6A-67A turboprop engine

    Estimates regarding the Eitan UAV’s range and endurance vary across sources. Typically, its flight endurance is reported between 30 and approximately 70 hours, with a maximum range exceeding 7,400 kilometers. Its operational Beyond-Line-of-Sight (BLOS) range surpasses 1,000 kilometers, though this is primarily constrained by command-and-control limitations rather than fuel capacity.

    In armed missions carrying heavier payloads, endurance naturally decreases. The drone’s maximum takeoff weight is reported to range between 4,650 and 5,670 kilograms, while its standard payload capacity is around 1,000 kilograms—sufficient for a wide array of surveillance and combat equipment.

    For export purposes, the Heron TP-XP variant has been introduced with a reduced payload capacity of 450 kilograms to comply with the Missile Technology Control Regime (MTCR) restrictions. This ensures the platform remains within international arms control guidelines while still offering robust ISR capabilities to foreign clients.

    Avionics, Autonomy, and Data Link Systems of the Eitan UAV

    The Eitan UAV is equipped with a triple-redundant avionics architecture, ensuring that the failure of a single subsystem does not compromise the integrity or control of the platform. This robust design enhances mission reliability and survivability in contested environments.

    Eitan is capable of fully autonomous operation—from takeoff to landing—thanks to its advanced Automatic Takeoff and Landing (ATOL) systems. These allow the drone to follow pre-programmed flight profiles with minimal operator intervention, significantly reducing workload and enabling safe return in the event of communication loss.

    The platform is also equipped with de-icing systems and is engineered to operate in harsh weather conditions, expanding its mission envelope across diverse climates.

    To counter electronic warfare threats, Eitan integrates advanced anti-jamming GNSS and communication systems, including IAI’s proprietary ADA system. These technologies ensure resilient positioning, navigation, and secure data transmission even under electronic attack.

    As a Multi-INT platform, Eitan can simultaneously carry and operate multiple high-end sensors. Its modular design allows flexible sensor integration tailored to specific mission requirements. Key payloads include:

    • Electro-Optical/Infrared (EO/IR): Featuring multi-sensor suites such as the Tamam M-19HD and AMPS systems, equipped with HD cameras, laser rangefinders, and laser designators for precision targeting and surveillance.

    • Radar Systems: Eitan is equipped with a high-resolution Synthetic Aperture Radar (SAR), enabling detailed imaging in all weather conditions and across day-night cycles. It also features Ground Moving Target Indicator (GMTI) functionality for tracking mobile ground targets in real time. Additionally, the platform includes a maritime patrol radar with Identification Friend or Foe (IFF) and Automatic Identification System (AIS) capabilities, allowing it to monitor and classify naval traffic with precision.

    • Signal and Electronic Intelligence (SIGINT/ELINT): The UAV carries advanced antenna arrays designed for intercepting and analyzing radar emissions and radio communications. These systems enable Eitan to perform strategic electronic surveillance, contributing to situational awareness and threat assessment across multiple domains.

    Antenna arrays for analyzing radar and radio communications activities

    Collected data is transmitted in real time to the command center via direct Line-of-Sight (LOS) links and satellite communications (SATCOM). Israel’s collaboration with Western partners such as Thales has enabled NATO-compatible data links (STANAG 7085) for export users like Germany. Additionally, advanced Software-Defined Radios (SDRs), such as the ARC-840 ELTA, ensure interoperability among various forces.

    Combat and Strike Capabilities of the Eitan UAV

    Although the Israeli military maintains a policy of ambiguity regarding the arming of its drones, various reports and analyses describe Eitan as a potent strike platform. It is believed to be capable of carrying a range of Israeli-made guided munitions, including missiles from the Spike family.

    Germany’s decision to arm its Heron TP fleet—following extensive political debate—further validates the drone’s weaponization potential. This confirms that Eitan’s role extends well beyond intelligence gathering.

    Mission Profile and Operational Roles

    Eitan serves as a persistent Intelligence, Surveillance, and Reconnaissance (ISR) platform. Its primary function is to act as an “ever-watchful eye in the sky,” delivering a continuous, real-time stream of high-precision data to battlefield commanders. This capability underpins nearly all modern military operations. With its extended flight endurance, Eitan can loiter over target areas for days, enabling intelligence analysts to build detailed assessments of enemy movement patterns and behavioral profiles—tasks that are impractical for manned aircraft with limited flight durations.

    Beyond ISR, Eitan excels in target acquisition. Using advanced EO/IR sensors and laser designators, it can precisely locate and mark targets for engagement by other assets such as artillery, attack helicopters, or fighter jets. After a strike, it performs Battle Damage Assessment (BDA), using its sensors to provide immediate feedback on the effectiveness of the attack.

    Eitan also functions as a critical airborne node for Command, Control, Communications, Computers, and Intelligence (C4I). Its altitude and endurance allow it to serve as a stable relay, connecting ground forces, naval units, and other aircraft that may be beyond each other’s line of sight. This capability is foundational to network-centric warfare, ensuring a shared operational picture across all levels of the combat force.

    Electronic Warfare (EW) and Cyber Support

    Eitan is a powerful electronic warfare platform. It can map the enemy’s electromagnetic spectrum, identifying command nodes, communication links, and radar frequencies. This intelligence can then be used to jam or deceive enemy systems, effectively blinding and silencing them at critical moments during operations.

    Eitan’s versatility extends to the maritime domain, where it is deployed for patrol missions within Israel’s Exclusive Economic Zone (EEZ) and for monitoring offshore infrastructure. Its long-range sensors and endurance make it ideal for persistent surveillance over vast oceanic areas.

    Operational History

    • Gaza: Eitan, alongside the broader Heron family, has been a cornerstone of Israeli operations in Gaza for over a decade. It played key roles in major campaigns such as Operation Cast Lead (2008–09), Operation Protective Edge (2014), and Operation Iron Swords (2023). In densely populated urban environments, its ability to provide 24/7 surveillance has been critical. During Operation Iron Swords, which began on October 7, 2023, Heron and Eitan drones were among the first assets deployed. With ground command posts caught off guard by Hamas’s initial assault, these UAVs became the primary source of real-time intelligence for higher command levels.
    • Northern Front (Syria and Lebanon): Eitan is routinely used for surveillance along the Lebanese border and for deep reconnaissance and strike missions inside Syria. These missions often target weapons shipments and military infrastructure linked to Iranian interests. Its high altitude and long range allow it to monitor vast territories and engage fleeting targets with precision.
    Eitan’s flight over Lebanon

    Export and International Operators of the Eitan UAV

    • Germany: The acquisition of Heron TP drones by Germany marked a significant milestone in defense cooperation between Tel Aviv and Berlin. For Germany, the platform serves as a critical interim solution to bridge operational capability gaps in the HALE UAV domain until the joint European “Eurodrone” becomes operational. The 2022 Russian invasion of Ukraine acted as a key geopolitical catalyst, accelerating political decisions to arm the fleet.
    • India: India operates a large fleet of Heron-1 drones and has procured the more advanced Heron TP variant—referred to as Heron Mk2—to enhance its surveillance and strike capabilities along its tense borders with China and Pakistan.
    • Greece: Amid rising tensions with Turkey, the Hellenic Air Force has temporarily leased the Heron TP in a maritime configuration, using it for coastal surveillance and strategic monitoring in the Aegean region.

    Eitan (Heron TP) drone specifications:

    Type: Surveillance and reconnaissance (and possibly combat)
    Origin: Israel
    Manufacturer: Israel Aerospace Industries
    First flight: 2004
    Unveiled: 2007
    Length: 14 m
    Wingspan: 26 m
    Engine: PT6-67A, 1,200 hp
    Range: 7,400 km
    Speed: 400 km/h
    Service ceiling: 14,000 m (46,000 ft)
    Endurance: +30 hours
    Maximum takeoff weight: 5,400 kg
    Payload weight: 2,700 kg

    More pictures of Eitan’s drone:

  • Military Knowledge: Hermes 900 Drone

    Military Knowledge: Hermes 900 Drone

    Introduction: Getting to Know the Hermes 900 Drone

    The Hermes 900 drone was designed and developed as the direct successor—and essentially the “big brother”—of the highly successful Hermes 450. Its development was shaped by field experience and operational lessons learned from the extensive deployment of the Hermes 450 in conflict zones. These insights highlighted the need for greater flight endurance, a higher operational ceiling, and increased payload capacity.

    Elbit Systems’ design philosophy for this project was clearly rooted in evolution, not revolutionary change. The goal was to create a platform that would perform twice as well as the Hermes 450, while maintaining maximum compatibility with existing operational infrastructure. As a result, operators familiar with the Hermes 450 could transition to the Hermes 900 with minimal additional training.

    The Hermes 900 successfully completed its maiden flight on December 9, 2009. Between 2010 and 2012, it was introduced to the global market, with its first export contract signed in July 2011 with Chile. Although full operational deployment was initially scheduled for the end of 2015, urgent needs led to its emergency use during Operation Protective Edge in Gaza in July 2014.

    The drone officially entered service with the Israeli Air Force on November 11, 2015. As of 2024, the Israeli Air Force has established Squadron 147, named Ram, at Palmachim Airbase specifically for Hermes 900 operations. Additionally, Squadron 166 has also adopted the drone for its missions.

    Hermes family drones

    Technical Specifications and Design Features of the Hermes 900 Drone:

    Aerodynamics: In terms of design, the Hermes 900 has a conventional structure for MALE-class drones. This design includes a cylindrical fuselage, high-aspect-ratio wings to achieve greater aerodynamic efficiency and long flight endurance, and a V-shaped tail configuration. Prominent aerodynamic features include retractable landing gear to reduce drag, and full-length flaperons that optimize wing performance under various flight conditions. This indicates that the Hermes 900 sacrifices high-speed flight capability in favor of long-endurance performance.

    Structure and Airframe:
    The main body structure of the Hermes 900 is primarily composed of lightweight composite materials. Kanfit Ltd, half-owned by Rafael, is recognized as the certified supplier of composite components and structural assemblies for the Hermes 900.

    Propulsion:
    The base model of the Hermes 900 is equipped with a four-cylinder turbocharged Rotax 914 engine, delivering an output of approximately 74.6 kilowatts (equivalent to 100 to 115 horsepower).
    Upgraded variants, such as the Hermes 900 StarLiner, are fitted with more powerful engines. Some sources mention the Rotax 916 engine with 160 kilowatts of power and the Rotax 915 iS engine with a maximum continuous output of 114 kilowatts, likely used for heavier models like the StarLiner.

    Performance Specifications:
    In various sources, differences can be observed regarding the physical specifications of the Hermes 900 drone. These discrepancies are primarily due to the existence of multiple versions (including the base model, maritime variant, and StarLiner), as well as custom modifications tailored for purchasing countries.

    The base model of the Hermes 900 has a fuselage length of approximately 8.3 meters and a wingspan of 15 meters. Its maximum takeoff weight is reported to range between 970 and 1,180 kilograms. In advanced versions such as the StarLiner or the maritime patrol model, the fuselage length remains unchanged, but the wingspan is extended to 17 meters to enhance aerodynamic performance and flight endurance. Meanwhile, the maximum takeoff weight in upgraded variants like the Hermes 900 StarLiner and the Indian export version, Adani Drishti StarLiner, has increased to around 1,600 kilograms.

    Payload Capacity and Operational Ceiling:
    The payload capacity of the Hermes 900 varies depending on the version. The base model is capable of carrying between 300 to 350 kilograms, while heavier variants can support up to 450 kilograms. The drone’s maximum operational altitude is typically reported to be 30,000 feet (9,100 meters).

    Flight Endurance and Operational Range:
    The flight endurance of the Hermes 900 varies depending on the payload and version, and is typically reported to exceed 30 hours. Maximum endurance is often cited as up to 36 hours, with some sources even suggesting a figure of 40 hours.

    The Hermes 900 has a top speed ranging between 220 to 222 kilometers per hour. Its cruising speed generally falls within the range of 103 to 112 kilometers per hour.

    The drone’s operational range is largely tied to its endurance. Utilizing satellite communications (SATCOM), the Hermes 900 is capable of operating at distances exceeding 1,000 kilometers from its ground control station.

    A view of the electro-optical payload and the location of satellite communications equipment in the dome-shaped nose of the drone.

    Avionics, Autonomy, and Data Link Review:
    The Hermes 900 features a high level of autonomy and is capable of performing all flight phases—from takeoff to landing—completely automatically. It is equipped with an advanced flight control system that includes the Integrated Autonomous Takeoff and Landing (IATOL) system, enabling precise landings even on runways lacking ground-based equipment.

    Additionally, the drone incorporates an Automatic Launch and Recovery (ALR) system. This system ensures safe landing in the event of communication loss with the ground control station, preventing potential accidents. To further enhance safety, the Hermes 900 is equipped with internal autonomous emergency procedures.

    The Hermes 900 drone is equipped with a dual communication architecture that enables connectivity in both Line-of-Sight (LOS) and Beyond-Line-of-Sight (BLOS) modes.

    In line-of-sight (LOS) mode, a broadband digital data link is used, which communicates via a Ground Data Terminal (GDT). For beyond-line-of-sight (BLOS) flights, the Hermes 900 utilizes an integrated satellite communication terminal, typically housed in the drone’s dome-shaped nose. This system enables control and data transmission over distances exceeding 1,000 kilometers.

    The Hermes 900 drone is operated via Elbit Systems’ ground control station known as UGCS—a system designed for unified control of the entire Hermes UAV family, including the H450 and H900. The UGCS station can be deployed either as a fixed installation or in a mobile configuration, such as within a standard S-280 military shelter. A single UGCS unit is capable of simultaneously managing two independent UAV missions using two separate data links. Optionally, the UGCS station supports NATO’s STANAG 4586 standard.

    Combat and Offensive Capabilities of the Hermes 900 Drone:

    One of the most significant strengths of the Hermes 900 is its ability to carry a wide range of multi-purpose combat and reconnaissance payloads. The drone features a large internal payload bay measuring 2.5 meters in length, capable of accommodating up to 250 kilograms of sensor equipment. This space allows for the installation of complex and advanced sensor arrays.

    The drone’s nose houses two fixed forward-looking cameras. Beneath the nose and at the rear of the fuselage, two dedicated mounts are provided for electro-optical systems. In addition to the internal bay, the Hermes 900 is equipped with four hardpoints under its wings, enabling it to carry additional payloads such as sensor pods or guided munitions.

    Electro-Optical / Infrared Systems of Hermes 900:
    The main sensor of this drone is the DCoMPASS, manufactured by Elbit Systems. This 39-kilogram sensor with a diameter of 370 mm includes a high-definition color TV camera, a large-format thermal imager (FLIR), a laser rangefinder, and a laser designator/illuminator for guiding semi-active laser munitions. This system also features an internal inertial measurement unit (IMU), advanced image processing for fog penetration or resolution enhancement, and automatic target tracking capability.

    Alongside DCoMPASS, the Hermes 900 can also be equipped with other optical systems such as SPECTRO XR, SkEye, and AMPS.

    Radar Systems:
    The Hermes 900 drone supports a variety of advanced radar systems for different mission profiles. One commonly used option is the Synthetic Aperture Radar (SAR) with Ground Moving Target Indicator (GMTI) capability, designed for detecting moving targets, generating high-resolution ground imagery, and conducting round-the-clock surveillance in all weather conditions.

    For maritime missions, the drone is typically equipped with the Gabbiano T-200 maritime patrol radar, manufactured by Leonardo.

    Gabbiano T-20 radar

    Electronic Warfare and Signals Intelligence:

    ELINT System:
    The primary ELINT system onboard this drone is the AES-210V Emerald, developed by Elbit/Elisra. It is designed to intercept, classify, and locate radar emissions from ground, sea, and air sources. Its advanced version, the AES-212, covers a broader frequency range from 0.1 to 40 GHz and is capable of identifying over 10,000 transmitters.

    Communications Intelligence (COMINT):
    The Skyfix system is designed for intercepting and locating communication signals, covering a range between 30 MHz and 3 GHz. It can monitor advanced low-probability-of-intercept (LPI) communications such as frequency-hopping systems. Versions of this system are also available for intercepting mobile (GSM) and satellite communications.

    Communications Jamming (COMJAM):
    Alongside Skyfix, the Skyjam system is used for conducting communication jamming operations. It can operate automatically or manually across multiple sub-frequency bands to disrupt enemy communications during electronic warfare missions.

    Skyjam system

    Armaments:
    In its combat missions, the Hermes 900 is capable of carrying twin or quad pods of a type of air-dropped bomb. This capability has been documented and confirmed following the downing of several drones in Iran. However, no official information regarding this specific payload has been publicly released.

    The wreckage of an Israeli Hermes 900 drone that was shot down over Iran, along with evidence of the weapons it carried

    Operational History of the Hermes 900:

    The Hermes 900 drone made its combat debut during Operation “Protective Edge” in Gaza in 2014. In this operation, it was deployed for intelligence gathering, reconnaissance, targeting, and surveillance roles, as well as for precision strikes against high-value targets.

    In the Nagorno-Karabakh conflict, Azerbaijan confirmed ownership of 15 Hermes 900 drones by 2018 and used them during the 2020 clashes against Armenia. Although Armenia claimed to have shot down one of these drones, Azerbaijan denied the claim. The use of Israeli drones—especially the Hermes 900—is considered one of the key factors behind Azerbaijan’s military successes in that conflict.

    A satellite image (March 2023) of the military base in Baku at the Yevlakh airport shows at least one Hermes 450 and three Hermes 900 drones stationed there, located approximately 125 kilometers from the Iranian border. It is believed that Azerbaijan may have supported Israel during the 12-day war against Iran.

    During the conflicts in Lebanon throughout 2024 and 2025, as well as cross-border and reconnaissance operations over Iranian territory, the Hermes 900 UAV was extensively deployed for surveillance missions and precision strikes targeting Hezbollah and other strategic assets.

    At least three of these drones were shot down by Hezbollah forces, while another three were intercepted and destroyed by Iranian air defenses.

    Operators and Export History of the Hermes 900 UAV

    Israel
    As the launch customer, the Israeli Air Force introduced the Hermes 900 under the official name Kochav (meaning “Star”). Operational deployment began in 2014, with both standard and maritime patrol variants in service. The exact number of active units remains undisclosed.

    Azerbaijan
    The Azerbaijani Armed Forces have acquired up to 15 Hermes 900 drones. Their official operational use was confirmed in 2018, and the country operates the standard variant.

    Brazil
    The Brazilian Air Force maintains a mixed fleet of Hermes 450 and Hermes 900 UAVs.

    Canada
    Transport Canada purchased a single Hermes 900 StarLiner for Arctic surveillance missions.

    Chile
    Chile became the first export customer in 2011, acquiring three units for its Air Force.

    Colombia
    The Colombian Air Force also operates a combined fleet of Hermes 450 and Hermes 900 drones.

    European Union
    The European Maritime Safety Agency (EMSA) employs the Hermes 900 for maritime patrol and border security. The number of units in use has not been publicly disclosed.

    Iceland
    Iceland’s Coast Guard uses the maritime patrol version of the Hermes 900 to monitor its Exclusive Economic Zone (EEZ). Operational quantities are unknown.

    India
    India’s Navy and Army have inducted at least four Drishti-10 StarLiner drones, a customized version developed in partnership with Adani. These are tailored for maritime surveillance and reconnaissance.

    Mexico
    Mexico’s Federal Police acquired at least two standard Hermes 900 UAVs under a $50 million contract signed in 2012.

    Philippines
    The Philippine Air Force operates nine standard Hermes 900 drones as part of a $175 million defense procurement deal.

    Switzerland
    The Swiss Air Force ordered six Hermes 900 StarLiner (HFE) units. However, full delivery has been delayed due to technical issues and regulatory requirements.

    Thailand
    In 2022, the Royal Thai Navy signed a $120 million contract for the maritime patrol version of the Hermes 900. Details on the number of units have not been released.

    Hermes 900 UAV specifications:

    Type: Combat and reconnaissance
    Origin: Israeli regime
    Manufacturer: Elbit Systems
    First Flight: 2009
    Unveiled: 2010
    Length: 8.3 meters
    Wingspan: 15 meters
    Engine: Rotax 914, 115 horsepower
    Range: Over 1,000 kilometers
    Cruising Speed: 220 km/h
    Operational Altitude: 9,100 meters (30,000 feet)
    Endurance: Up to 36 hours
    Maximum Takeoff Weight: 1,120 kilograms
    Payload Capacity: 450 kilograms

    More pictures of Hermes-900:

  • Military Knowledge: Raytheon Multi-Spectral Targeting Systems

    Military Knowledge: Raytheon Multi-Spectral Targeting Systems

    Introduction to Multi-Spectral Targeting Systems (MTS):

    Multi-Spectral Targeting Systems (MTS) are advanced sensors that operate by receiving and processing data across several electromagnetic spectrum bands. At the heart of these systems is the fusion of electro-optical (EO) technology in the visible and infrared (IR) ranges. This technology gained prominence with the expansion of long-range reconnaissance UAV usage, allowing military drones to take on roles traditionally reserved for manned reconnaissance aircraft.

    Unlike conventional imaging systems that are limited to a single spectral range, MTS combines images from multiple bands—including Long-Wave Infrared (LWIR: 8–12 µm), Mid-Wave Infrared (MWIR: 3–5 µm), Short-Wave Infrared (SWIR: 1–2.5 µm), and Near-Infrared (NIR: 0.7–1 µm)—making it effective not only in daylight and nighttime but also in challenging weather conditions like dust, smoke, and fog.

    Raytheon, now part of the RTX group, has secured a significant portion of the market for this technology by leveraging extensive operational experience and close collaboration with the U.S. armed forces. The MTS system family is one of Raytheon’s most distinguished achievements, developed in 44 different versions for use on 21 different platforms.

    In the following, the flagship models will be introduced in more detail.

    MTS-A: Foundational Multi-Spectral Targeting System (AN/AAS-52 and AN/AAS-44C)

    The MTS-A model, known by designations AN/AAS-52 (used by the U.S. Air Force) and AN/AAS-44C(V) (used by the U.S. Navy), is considered one of the earliest members of Raytheon’s Multi-Spectral Targeting System family. This system integrates core electro-optical (EO) capabilities in the visible and infrared (IR) spectrum with laser range-finding, laser designation, and laser illumination functions.

    These features enable long-range surveillance and reconnaissance, target detection and identification, tracking of moving targets, precise distance measurement to targets, and most importantly, accurate laser designation for guiding various laser-guided munitions such as the AGM-114 Hellfire missile and other precision-guided weapons.

    Operational History of MTS-A

    MTS-A entered operational service in the late 1990s, with the AN/AAS-52 deployed on MQ-1 Predator UAVs by the U.S. Air Force during covert operations in Kosovo, and later in Afghanistan following the events of September 11. At the time, the U.S. Air Force was heavily focused on arming Predator drones with Hellfire missiles, and the MTS-A system played a pivotal role in enabling that capability.

    Beyond the Air Force, the U.S. Navy adopted MTS-A with the designation AN/AAS-44V on SH-60B and HH-60H helicopters, and the AN/AAS-44C variant on MH-60S and MH-60R helicopters.

    Raytheon also declared that the MTS-A system is suitable for installation on fixed-wing aircraft.

    Special Operations Variant: AN-ZSQ-2

    The MH-47 and MH-60M helicopters used by the U.S. Army’s Special Operations Aviation Regiment (SOAR) are equipped with an evolved sensor variant based on MTS-A and MTS-B, designated AN-ZSQ-2, which is mounted on the aircraft’s nose.

    Technical Specifications of MTS-A:

    • Payload Weight:
      • Sensor Module: approx. 59 kg
      • Control & Processing Unit: 11.3 kg
    • Dimensions:
      • Sensor Module Diameter: 45.7 cm
      • Control & Processing Unit: 36.6 × 12.4 × 19.3 cm
    • Field of View (FOV):
      • Wide: 34 × 45° – battlefield overview
      • Semi-wide: 17 × 22° – focused regional scans
      • Medium: 5.7 × 7.6° – balance between scope and detail
      • Semi-narrow: 2.8 × 3.7° – targets at mid-range
      • Narrow: 1.2 × 1.6° – for tracking moving targets
      • Ultra-narrow IR: 0.6 × 0.8° – precise night targeting
      • Ultra-narrow TV: 0.21 × 0.27° – high-resolution daytime imagery
    • Stabilization: 6-axis gimbal mount

    AN/AAS-53 Common Sensor Payload (CSP)

    In November 2007, the United States Army selected Raytheon to provide the Common Sensor Payload (CSP) for use on a variety of manned and unmanned aircraft. The sensor is based on technologies used in the MTS-A system. The AN/AAS-53 CSP was initially intended for installation on the ARH-70A armed reconnaissance helicopter (which was later canceled) and for installation on the MQ-1C Grey Eagle multirole unmanned aerial vehicle.

    MTS-B: Advanced System for High-Altitude, Long-Range Surveillance (AN/DAS-1)

    The MTS-B system, designated AN/DAS-1, is an evolved version of the earlier MTS-A model, optimized specifically for high-altitude operational environments. It’s larger in size and tailored for long-endurance, high-flying platforms such as the MQ-9 Reaper (Predator B) UAV.

    Read more: Military Knowledge: MQ-9 Reaper Drone

    Capabilities and Applications

    MTS-B is a multi-functional system that incorporates electro-optical (EO) and infrared (IR) sensors along with laser detection, range-finding, and target tracking technologies. This system is capable of performing:

    • Long-range surveillance missions
    • Precision target acquisition
    • Continuous tracking of moving targets
    • Laser designation for air-to-ground munitions

    Besides the MQ-9 Reaper, the MTS-B system is also used on U.S. Navy’s MQ-4C Triton UAVs.

    Technical Specifications of MTS-B:

    • Payload Weight:
      • Sensor Module: 104 kg
      • Control & Processing Unit: 11.3 kg
    • Dimensions:
      • Sensor Module Diameter: 56 cm
      • Processing Unit: 36.6 × 12.4 × 19.3 cm
    • Field of View (FOV):
      • Wide: 34 × 45° – broad coverage for reconnaissance missions
      • Semi-wide: 17 × 22° – moderate area focus
      • Medium: 5.7 × 7.6° – balance between clarity and scope
      • Semi-narrow: 2.8 × 3.7° – mid-range target focus
      • Narrow: 0.47 × 0.63° – effective for target tracking
      • Ultra-narrow IR: 0.23 × 0.31° – sharp night-time imaging
      • Ultra-narrow TV: 0.08 × 0.11° – extremely high resolution
    • Digital Zoom: 2× and 4× magnification
    • Motion Range:
      • Azimuth (horizontal): 360° continuous rotation
      • Elevation (vertical): from +40° to –135°
    • Rotation Speed: Up to 2 radians/second in elevation axis
    • Auto-tracker Modes: Three types: centroid, regional, and selective
    • Data & Control Interface: MIL-STD-1553 data bus
    • Video Output Formats: RS-170 (525 lines), digital, and other formats
    • Power Requirement: 28V DC from aircraft supply

    MTS-D: Next-Generation Multi-Spectral Targeting System (AN/DAS-4)

    The AN/DAS-4, also known as MTS-D, is the latest and most sophisticated evolution in Raytheon’s family of multi-spectral targeting systems. This new generation was developed in 2016 under a $90 million contract with the U.S. Air Force, featuring significant upgrades—especially in fire control and target location accuracy. The system is deployed on platforms such as the MQ-9 Reaper UAV and the MQ-4C Triton long-range maritime surveillance UAV used by the U.S. Navy.

    MTS-A, MTS-B, MTS-D systems in one frame

    Core Advancements and Capabilities

    At the heart of MTS-D lies an advanced suite of electro-optical sensors that includes four high-resolution cameras capable of capturing imagery across five distinct spectral bands. This multi-spectral imaging capability allows for the breakdown of visuals into varying optical wavelengths, enabling the extraction of fine details and intelligence not discernible to the naked eye or single-band systems.

    Aboard the MQ-9 Reaper equipped with the AN/DAS-4, these capabilities enhance both situational awareness and precision engagement.

    Laser Targeting and Tracking Enhancements

    The AN/DAS-4 system is equipped with a three-color diode-pump laser designator/rangefinder, which provides highly accurate targeting data. It also supports Laser Spot Search and Track—a feature that allows the system to detect and lock onto targets designated by another source using laser markers. Automatic alignment between sensor and laser components ensures consistent targeting precision while minimizing the need for frequent manual calibration.

    MTS-D AN/DAS-4

    Intelligent Target Acquisition

    The system supports three target tracking modes and includes automatic target acquisition capabilities. Combined with the standard MTS features—such as multi-mode fields of view and digital zoom—these intelligent enhancements significantly streamline and speed up the processes of detection, locking, and tracking of both stationary and moving targets.

    The AN/DAS-4 system can provide precision laser tracking and designation for a wide range of laser-guided munitions used by U.S. and NATO armed forces, including missiles like Griffin and bombs such as the Paveway series.

    MS-110 & MS-177: Strategic-Level ISR Sensors

    These advanced members of Raytheon’s MTS family are built for intelligence, surveillance, and reconnaissance (ISR) missions, offering superior imaging capabilities at long ranges and high altitudes. Unlike MTS-A/B/D systems that are typically mounted on tactical UAVs and helicopters, MS-110 and MS-177 are designed for integration into larger fixed-wing aircraft.

    MS-110: Tactical Electro-Optical Imaging System

    • Developed to deliver long-range, high-resolution imagery using multiple spectral bands.
    • Often installed on aircraft such as the U-2 Dragon Lady or RQ-4 Global Hawk.
    • It uses improved optics and sensor resolution over previous systems for detailed reconnaissance missions.
    MS-110 sensor

    MS-177: Enhanced Long-Range Surveillance Sensor

    • A successor to MS-110, boasting even higher fidelity and more powerful imaging capabilities.
    • Can operate across multiple spectral bands, including visible, infrared, and short-wave infrared.
    • Provides automated target detection and classification, improving real-time battlefield awareness.
    • Compatible with various platforms including E-8 JSTARS, RQ-4 Global Hawk, and other long-endurance aircraft.
    • Supports modular payload architecture, allowing easy upgrades and adaptations for new missions.
    MS-177 sensor

    Sources:
    AN/DAS-4: Sharper Eyes for the Reaper | Multi-Spectral Targeting System (MTS) | Raytheon - RTX | MTS Brochure | PDF | Unmanned Aerial Vehicle | Surveillance - Scribd | MTS-B Multi-Spectral Targeting System | Raytheon Integrates and Tests SeaVue Radar and MTS Onboard Predator B | AIRBORNE IMAGING 2011 - Piloto Policial | Raytheon's Airborne FLIR Sensor Ball Systems | Multi-Spectral Targeting System (MTS) AN/AAS-52 | Raytheon unveils compact Multi-Spectral Targeting System | RTX to produce 9 AN/DAS-4 targeting systems for US Navy MQ-9Cs | Raytheon to produce multi-spectral targeting system for USAF | MQ-9 Reaper Armed Unmanned Aircraft System (UAS) | Global ISR Sensors and Software | Raytheon | Lockheed Martin Selects Raytheon to Deliver Next Generation F-35 Sensor | MH-60S Multi-Mission Combat Support Helicopter | Raytheon (RTX) Wins Deal for Multi-Spectral Targeting Systems | U.S. Navy, Northrop Grumman Near Delivery of Baseline Triton | AN/AAS-44

  • Polish Special Forces Deploy U.S.-Made USVs to Counter Russian Threats

    Polish Special Forces Deploy U.S.-Made USVs to Counter Russian Threats

    Training scenarios for Polish forces include night navigation, intelligence gathering, and simulated infiltration of enemy installations. These exercises reflect Poland’s readiness for potential conflict in the Baltic Sea and its adaptation to modern naval warfare trends.

    Founded just 18 months ago, HavocAI has already designed and mass-produced the Rampage Gen 1 and Gen 2 USVs. These vessels can carry up to 136 kilograms of payload and are equipped with solar panels to extend their operational range. They are controlled via Starlink satellite antennas—similar to those used in Ukrainian USVs. One of their standout features is swarm capability, allowing a single operator to simultaneously control dozens of Rampage drones from anywhere in the world. Each unit is priced at approximately $100,000, making them relatively affordable within their class of military equipment.

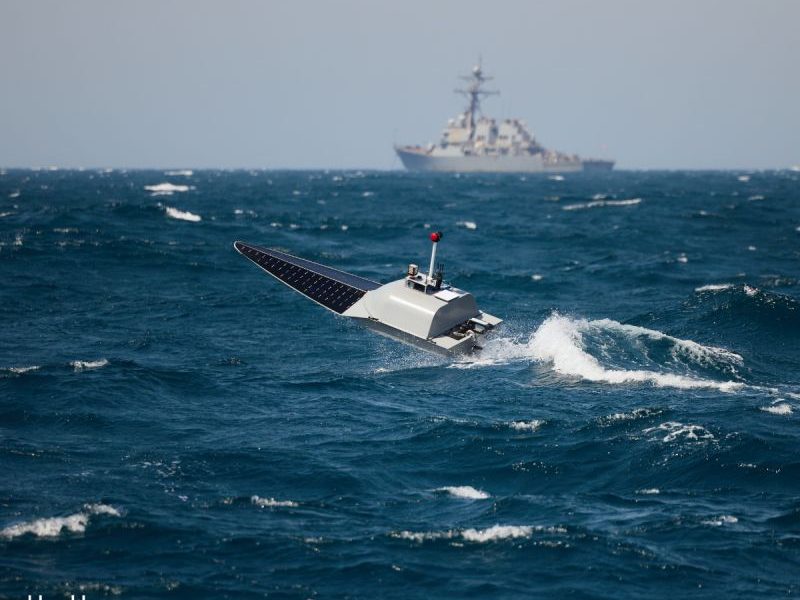

    Rampage USV by HavocAI

    In addition, HavocAI is developing larger USVs ranging from 12 to 45 meters in length, which will integrate into the same Rampage operational system. The company has also initiated a strategic partnership with defense giant Lockheed Martin to advance its projects.

    The use of low-cost, mass-producible remote-controlled USVs signals a shift in Eastern European military doctrine. Swarm tactics, which overwhelm enemy defense systems, significantly increase the likelihood of mission success. Satellite-based communication systems like Starlink enable remote control even in areas lacking traditional infrastructure.

    Through these efforts, Poland aims to enhance its asymmetric warfare capabilities and respond effectively to regional threats. This approach could serve as a model for other NATO member states. However, the widespread use of autonomous drones in military operations raises new legal and ethical concerns—such as accountability for civilian harm, transparency in AI-driven decision-making, and compliance with international maritime laws.

    Overall, Poland’s testing of naval drones marks a significant step toward modernizing its military capabilities and aligning with emerging trends in naval warfare. With its focus on technological collaboration and scalable production, Poland is preparing to confront potential Russian threats in the Baltic region.

    Source DefenseExpress

  • Military Knowledge: GBU-57 Massive Ordnance Penetrator

    Military Knowledge: GBU-57 Massive Ordnance Penetrator

    Introduction and Development History of the GBU-57 MOP:

    As a heavy-duty penetrator bomb, the GBU-57 MOP (Massive Ordnance Penetrator) can target and destroy heavily fortified underground facilities like bunkers, command centers, and weapons depots. Designed for daytime or nighttime attacks on targets deep underground, as well as for deterring enemies with buried infrastructure, the bomb is built for planned strikes.

    The GBU-57 MOP project started in the early 2000s, a joint effort by Northrop Grumman and Lockheed Martin. However, due to financial and technical hurdles, the initial attempt was halted. After the US invasion of Iraq in 2003, an analysis of bunker-busting bombs used showed they lacked the penetration power to take out fortified targets.

    This sparked renewed interest in developing a larger bunker-busting bomb, and the MOP project was launched by the Defense Threat Reduction Agency (DTRA) to meet a long-standing Air Force need. The concept of “Big BLU” – large penetrating and explosive bombs like MOP and MOAB – was also proposed.
    In the end, Boeing won the contract to design and produce the bomb.

    Boeing and US Army weapons specialists stand in front of a mock-up of the MOP bomb at Whiteman Air Force Base

    The first static detonation test of the bomb was conducted in 2007 at the White Sands Missile Range. Flight tests of the weapon were conducted from 2008 to 2010, including launches from B-52 and B-2 bombers. In February 2010, the project was transferred to the Air Force, and the first deliveries of operational units of the bomb began in September 2011.

    B-2 bomber releases and tests GBU-57 MOP bomb

    Read more: Military Knowledge: B-2 Spirit Bomber

    Technical Specifications of the GBU-57 MOP Bomb:

    The estimated weight of the GBU-57 Massive Ordnance Penetrator (MOP) is between 12,300 and 13,600 kilograms, depending on various sources. The bomb measures approximately 6.2 meters in length and about 0.8 meters in diameter. To put this into perspective, its weight is comparable to that of two adult African elephants, highlighting its significant scale.

    The warhead of this bomb is composed of a mixture of AFX-757 and PBXN-114 explosives. The total weight of the warhead ranges from 2,400 to 2,600 kilograms, which includes around 2,080 kilograms of AFX-757 and 341 kilograms of PBXN-114. The body of the warhead is made from a high-performance steel alloy, designed to maintain its integrity upon impact. This construction enables the bomb to deliver a substantial explosive payload while preserving the penetrator’s structure during impact. The bomb’s considerable weight and specialized alloy are crucial to its penetration capability, much like driving a steel nail into rock. Most of the bomb’s weight resides in its body.

    The GBU-57 MOP is estimated to penetrate approximately 60 meters of reinforced concrete with a strength of 5,000 PSI. It can also penetrate about 40 meters of relatively hard rock and around 8 meters of reinforced concrete with a strength of 10,000 PSI. It is important to note that the reported penetration capabilities of 60 meters are based on preliminary information and prototypes of the bomb, and there is currently no precise information available regarding the ultimate penetration capacity of the latest model.

    Comparison of penetration of the MOP bomb (possibly a prototype) with the BLU-109 and GBU-28 bombs

    The GBU-57 Massive Ordnance Penetrator (MOP) is a precision-guided munition that utilizes a GPS/INS (Global Positioning System/Inertial Navigation System) for enhanced targeting accuracy, achieving precision within a few meters. The bomb features four fixed trapezoidal wings along its midsection and four lattice fins at its tail, which help adjust its trajectory during flight.

    Equipped with a smart fuze (LPSF), the GBU-57 MOP can modify its detonation timing based on the depth and configuration of the underground target. It incorporates void-sensing fuzes that trigger detonation if a large cavity is detected within the bunker. Additionally, the weapon includes a delay fuse, allowing the warhead to survive the initial impact upon penetrating the target before it detonates.

    In comparison to BLU-109, the MOP bomb possesses over ten times the explosive power and significantly greater penetration capabilities. The BLU-109 weighs only 910 kg and has a much shallower penetration depth.

    Comparison of penetration of the MOP bomb (probably a prototype) with the BLU-109 and GBU-28 bombs

    Variants of GBU-57:

    The GBU-57 has undergone numerous upgrades and modifications over the years, resulting in a variety of variants. These upgrades have included improvements to the fuze system, advanced guidance systems, and increased penetration capabilities, currently spanning seven generations. Common variants of this bomb use the BLU-127A/B, BLU-127B/B, and BLU-127C/B warheads, respectively.

    GBU-57/B: This version is equipped with the BLU-127/B warhead. The United States Air Force has addressed an integration issue that existed with the original version of the bomb on the B-2 Spirit stealth bomber. A new smart fuse has also been tested to enhance its effectiveness in situations where the depth or precise location of a buried target is uncertain.

    GBU-57A/B: This version uses the BLU-127A/B warhead.

    GBU-57B/B: This model is equipped with the BLU-127B/B warhead.

    GBU-57C/B: The specific upgrades made by Boeing to this version are not detailed in the available sources.

    GBU-57D/B: Information about the modifications made by Boeing to this version is also unclear, but it is believed that its fuse and primer have been upgraded.

    GBU-57E/B: This version has been part of the operational inventory since at least 2016 and is equipped with the BLU-127C/B warhead. It has improved capabilities for penetrating concrete structures compared to earlier models. It can be reasonably assumed to have greater penetration power than the 2007 models, which could penetrate to a depth of 60 meters. The BLU-127C/B warhead features a booster in its front section, although its exact function remains unknown. Currently, the US Air Force does not have a newer version of the GBU-57E/B in operational use.

    GBU-57F/B: This model is described as the latest version, but little is known about its exact capabilities.

    Overall, the US is working to boost the effectiveness of this bomb by continually upgrading it. As noted, the 60-meter penetration power is from the early models, and there’s no information available on the bomb’s penetration after receiving later upgrades. Additionally, the US is reportedly developing a version of this bomb with similar characteristics to the GBU-57, but lighter in weight, to enable its use in fighter jets.

    Production numbers and costs of the GBU-57:

    Developing the GBU-57 MOP weapon is expected to cost around $400 to $500 million. Each unit’s production cost is estimated to be roughly $3.5 million, with upgraded versions likely to be even more expensive. Although the exact number of MOP bombs produced is classified, estimates suggest a relatively small stockpile – about 20 by 2015, with potential for increased production.

    GBU-57 MOP specifications:

    Type: bunker buster bomb
    Origin: U.S.
    Manufacturer: Boeing
    Length: 6.2 m
    Diameter: 80 cm
    Total bomb weight: around 12.5 tons
    Warhead weight: around 2.5 tons
    Penetration: 61 m
    Guidance: GPS/INS

    GBU-57 bomb MOP

    Sources:
    GBU-57A/B_MOP – MOP – massive-gbu-57ab-mop-was-built-war-china – what-aircraft-carry-us-air-force-30000-pound-massive-ordnance-penetrator – gbu-57-massive-ordnance-penetrator
    the-evolution-and-strategic-imperative-of-the-gbu-57 – massive-ordnance-penetrator – mop – our-best-look-yet-at-the-massive-ordnance-penetrator – mopping-up-the-usas-30000-pound-bomb

  • Military Knowledge: AEGIS Defence System; Standard Missiles

    Military Knowledge: AEGIS Defence System; Standard Missiles

    Overview of the AEGIS System:

    The Aegis Ballistic Missile Defense System (ABMD) is a component of the AEGIS comprehensive combat system. It is an integrated, sea-based defense system designed to protect US naval fleets from enemy aircraft and cruise missiles. The system employs various types of missiles, including the Standard-2 (SM-2), Standard-3 (SM-3), Standard-6 (SM-6), and Sea Sparrow, alongside Phalanx Close-In Weapon System to counter potential threats.

    Additionally, Aegis can launch Tomahawk land-attack cruise missiles. A specific subset of Aegis-equipped vessels operates in key regions, including the Mediterranean Sea, Red Sea, Black Sea, Western Pacific, and Persian Gulf, providing a defensive shield against potential ballistic missile attacks from countries such as Russia, China, North Korea, and Iran.

    SM-3 and SM-6 missile replicas

    The Aegis anti-ballistic system consists of three main components: sensors, interceptors, and a command and control system.

    The main interceptor missile of this system is the RIM-161 Standard Missile 3 (SM-3), which is designed in three versions: Block IA, IB, and IIA. Each version has been improved in range and performance capabilities compared to its predecessor. This missile employs a kinetic warhead to destroy ballistic missile warheads during the midcourse phase of flight, which occurs outside the Earth’s atmosphere. Additionally, the Aegis system utilizes intra-atmospheric missiles such as the SM-2 Block IV and SM-6, designed to intercept missiles in the terminal phase of flight. All of these interceptors are deployed through the Mark 41 Vertical Launch System (VLS).

    The primary sensor used in the Aegis system is the AN/SPY-1D radar, which operates in the S-band and provides nearly 360-degree coverage. As technology has advanced, newer Aegis platforms have been equipped with upgraded radars, such as the SPY-6 and SPY-7. Additionally, enhanced Aegis platforms can launch interceptor missiles based on data from long-range sensors, including the THAAD TPY-2 radar, which operates in the X-band.

    The anti-ballistic component of the Aegis system is managed by the Aegis comprehensive combat system, which has undergone upgrades over time through hardware and software enhancements known as “Baseline.” The latest version of this system, called Baseline 9, enables a ship to simultaneously conduct air defense and missile defense operations. Previous versions of the software could only support one of these two missions at a time, often requiring Aegis ships to operate in pairs—one ship managing air defense while the other focused on anti-ballistic defense.

    An overview of how US missile defense systems intercept threats

    Background and history of the development of the Aegis system:

    The development of the Aegis system was initially driven by the increasing threat of Soviet anti-ship missiles in the 1960s. The sinking of the Israeli warship Eilat in 1967 by four Soviet-made Styx missiles highlighted the vulnerability of naval assets to new-generation weapons. In the aftermath of World War II, the United States aimed to strengthen its naval fleet, while the Soviet defense strategy relied on utilizing heavy cruise missiles, sometimes equipped with nuclear warheads, launched from smaller vessels or bombers and fighter jets. These missiles, flying at high speeds and close to the water’s surface, made detection and interception extremely difficult.

    The United States Navy recognized that existing radar technology was inadequate for tracking and effectively engaging multiple high-speed, near-surface missiles simultaneously. To address this critical gap, the Advanced Missile System (ASMS) program was initiated in 1964, marking the beginning of what would later become known as Aegis. In December 1969, the ASMS program was officially renamed “Aegis,” inspired by the shield of Zeus in Greek mythology.

    The Aegis program was later expanded to include the emerging threat of ballistic missiles. In the mid-1980s, the Aegis Anti-Ballistic Missile Defense System (Aegis BMD) program was launched as part of Ronald Reagan’s Strategic Defense Initiative (SDI), informally known as “Star Wars.” This program was developed as a defense measure against potential attacks from long-range ballistic missiles launched by the former Soviet Union.

    Initially, the Aegis BMD concept included a space-based railgun system. However, technological limitations prompted the exploration of alternative solutions, leading to the development of anti-ballistic missiles instead. The first successful interception test of the Aegis BMD system occurred in January 2002, marking a significant milestone in its evolution. The experiences gained from the first and second Persian Gulf Wars, alongside the growing proliferation of short- and intermediate-range ballistic missiles by countries like North Korea and Iran in the late 1990s and early 2000s, further emphasized the necessity for a robust sea-based ballistic missile defense capability like Aegis. This evolution transformed Aegis from a purely anti-ship system into one with a crucial anti-ballistic missile capability.

    Role of Aegis in the US Navy and the National Missile Defense Program:

    As mentioned earlier, the Aegis anti-ballistic system is part of the larger Aegis Combat System. Note that almost all US Navy warships and destroyers are considered Aegis vessels because they’re equipped with the Aegis combat system, which includes sensors, computers, software, displays, and weapon launchers. However, not all these vessels can engage ballistic targets or have received the Aegis BMD upgrade. This article will focus specifically on the Aegis anti-ballistic capabilities.

    Ticonderoga-class cruiser

    • A total of 27 Ticonderoga-class ships were purchased between 1978 and 1988, and entered service between 1983 and 1994. The Navy retired the first five ships of the class, which were technically built to an older standard, by 2005. Retirement of the remaining 22 ships began in 2022 and has now reached nine, with at least five of the class reportedly upgraded to anti-ballistic capabilities.
    USS Ticonderoga (CG-47)

    Arleigh Burke-class destroyers

    • The U.S. Navy began purchasing the DDG-51 class in 1985, with a total of 94 ships expected to be purchased by 2024. The first destroyer of the class entered service in 1991, and a total of 74 ships will be operational by the end of 2023. Retirement of the older ships will begin in fiscal year 2028. The DDG-51 design has been updated many times over the years. The first 28 ships are known as Class I/II, the next 34 as Class IIA, and the next ships as Generation III. The third generation of the class will use the new SPY-6 radar instead of the older SPY-1. According to the Missile Defense Agency, by the end of fiscal year 2025, there will be a total of 56 ships of the class with anti-ballistic capabilities. By 2023, that number had increased to 49, increasing to 69 by fiscal year 2030.
    USS Arleigh Burke (DDG-51)

    The Aegis missile defense system is a key part of the U.S. and allied strategies to defend against ballistic missiles. It’s part of the U.S. National Ballistic Missile Defense System, mainly designed to protect against short- to intermediate-range ballistic missiles, which have a range of around 2,200 miles (3,500 km). However, recent upgrades have also given it the ability to counter intercontinental ballistic missiles, which can travel up to 6,200 miles (10,000 km). That’s why the system gets its own funding from the Department of Defense’s Missile Defense Agency.

    US Comprehensive Ballistic Missile Defense Program

    The Aegis system, led by the Missile Defense Agency, is integrated with other components of the Ballistic Missile Defense System (BMDS), such as THAAD and Patriot defense systems, through the Command, Control, Battle Management, and Communications (C2BMC) system. This integration enables a coordinated response to missile threats by utilizing the strengths of each system. As a result, Aegis can support other interceptors by providing long-range surveillance and radar data.

    In addition to the United States, the Aegis combat system is currently deployed by Australia, Canada, Japan, South Korea, Norway, and Spain, all of which share intelligence data.

    First Intercontinental Ballistic Missile Intercept Test by SM-3 Block IIA Missile in 2020 in Hawaiian Sea Area

    The video above shows a graphical representation of the first live test of an intercontinental ballistic missile (ICBM) interception. On November 17, 2020, a prototype ICBM was launched from the Ronald Reagan Ballistic Missile Defense Test Site on Kwajalein Atoll in the Marshall Islands, headed toward the Hawaiian Sea. In this test, a destroyer used remote engagement capabilities through the Command and Control Battle Management communications network, as part of a scenario to defend Hawaii. After getting tracking data from the system, the destroyer fired an SM-3 Block IIA missile that successfully hit the target.

    Review of the radar and satellite capabilities of the Aegis system:

    The Aegis system uses a set of advanced radar systems to detect, track, and engage ballistic missile threats. The main fire control radar for Aegis, the AN/SPY-1, is a Lockheed Martin Advanced Passive Electronically Scanned Array (PESA) radar that operates in the S-band. This powerful radar has four array panels for 360-degree coverage and can search, track, and guide missiles at the same time. Although the official range of the radar is not publicly disclosed, its estimated range is between 310 and 370 kilometers, making it capable of detecting various ballistic, cruise, and air targets.

    AN/SPY-1 radar

    Originally, Aegis wasn’t built for anti-ballistic missions. Despite policymakers allocating funds to update the system, the SPY-1 radar is still a major weakness in the Aegis chain, limiting interception by standard missiles.

    AN/SPY1D(V) radar on the Japanese destroyer GS Ashigara, an Atago-class destroyer.

    SPY-1 radar gives interceptors enough accuracy to track targets up to about 370 km. This is enough for the Standard-2 missile, which has a range of around 160 km. However, it’s not enough for Standard-3 anti-ballistic missiles, especially the Block IA/B versions with a range of up to 700 km and the Block IIA with a range of up to 2500 km. The SPY-1 radar also has limitations for the Standard-6, which has an active seeker and can reach a range of about 460 km.

    Variants of AN/SPY-1 radar

    Raytheon’s AN/SPY-6 radar, also referred to as AMDR, is the next generation of radar for Aegis. This active electronically scanned array (AESA) radar works in both S and X bands, providing significantly more advanced capabilities.

    Various AN/SPY-6 radar models

    The system comprises two main radars and a Radar Set Controller (RSC) that coordinates these sensors. The S-band radar is responsible for tasks such as searching for and tracking targets, accurately detecting ballistic missile warheads, and communicating with interceptor missiles. In contrast, the X-band radar is designed for near-horizon search, offering more accurate tracking and guidance for short- and medium-range missiles. This radar is reported to be 30 times more sensitive than the SPY-1, allowing it to handle 30 times more targets. Different versions of this radar, varying in dimensions, are used on various vessels, including the new generation of Arleigh Burke destroyers.

    AN/SPY-6 System Overview

    The AN/SPY-7 radar, manufactured by Lockheed Martin, is another advanced radar being integrated into the Aegis system. This radar is currently installed on some Japanese ships equipped with the Aegis system (ASEV), as well as on the Spanish F-110 ships and the Canadian River-class ships. Additionally, the AN/SPY-7 radar is intended for land-based Aegis systems in the United States, specifically in Hawaii and Alaska, as well as in Japan, where it will be deployed in Yamaguchi and Akita. Overall, the AN/SPY-7 radar is expected to be used on more ships belonging to the United States and its allies in the future.

    AN/SPY-7 radar at Clear Space Force Station, Alaska

    The land-based version of Aegis is being developed under the name Aegis Ashore. This development began in 2014, with the first site opened in Romania in 2016 as part of the NATO missile defense network in Europe. A second site is scheduled to open in Poland in 2024. Additionally, Japan is developing its own land-based version of Aegis in the prefectures of Yamaguchi and Akita. The United States also has three other land-based Aegis systems located in Guam, Hawaii, and Alaska.

    Lockheed Martin’s video of the Aegis land-based prototype explaining that Aegis Ashore uses the same components used in Aegis-equipped destroyers.

    Satellite networks serve as the backbone of the Aegis missile defense system, significantly enhancing its range, accuracy, and speed of response. A crucial component of this network is the Space Tracking and Surveillance System (STSS), which is designed to intercept ballistic missiles during all phases of their flight: from launch (boost phase) through the ascent (midcourse phase) and re-entry into the atmosphere. STSS satellites are capable of detecting and tracking a wide variety of missiles, including short-range, intermediate-range, and intercontinental missiles. The data collected by these satellites is transmitted to Aegis-equipped ships, enabling a critical capability known as Launch on Remote, which substantially extends the effective range of interception.

    Overview of the Space Tracking and Surveillance System (STSS) operation

    Along with STSS, the Defense Support Program (DSP) and Spaceborne Infrared System (SBIRS) also provide crucial early warning capabilities. By using infrared sensors, these systems pick up the thermal signatures of missile launches early on and transmit valuable data on position and velocity to Aegis and other parts of the US missile defense system.

    Review of AEGIS interceptor missiles:

    AEGIS Missile Defense System – SM-3 and SM-6 missiles

    RIM-161 SM-3 missile

    The Standard Missile-3 (SM-3) is the main interceptor used in the Aegis system. The SM-3 program was developed as a variant of the Standard SM-2ER Block IV missile, known as NTW-TBMD. Initial testing took place from 1992 to 1995 as part of Project Terrier/LEAP. The first test flight of the RIM-161A SM-3 occurred in September 1999, and the program achieved its first successful intercept of a ballistic target in January 2002. The Standard Missile officially entered operational service in 2005. Its first combat deployment took place in April 2024, when U.S. Navy warships used the missile to intercept ballistic missiles fired by Iran toward Israel.

    The SM-3 missile closely resembles the Standard-2 but has two key differences: first, it employs a solid-fuel booster as a third stage, enabling greater range and altitude engagement; second, it uses a kinetic warhead instead of a conventional high-explosive warhead. The SM-3 family is specifically designed to intercept ballistic missiles outside the atmosphere, at altitudes above 100 km. Because ballistic missiles follow a parabolic flight path, they maintain a relatively constant speed after the boost phase and during the midcourse phase or reentry into the atmosphere, losing the ability to perform complex maneuvers. This characteristic allows anti-ballistic interceptors equipped with heat seekers to detect ballistic warheads and destroy them through direct collision.

    The different generations of the Standard-3 missile are as follows:

    • SM-3 Block IA: Following the prototype, this version was launched to boost reliability, ease of maintenance, and lower costs, marking the first model in this family to go into mass production.
    • SM-3 Block IB: Set to enter service in 2010, this missile featured a dual-spectral infrared seeker and a new space propulsion system in its warhead. These upgrades boosted the missile’s ability to counter maneuvering warheads, enabling it to defend against intermediate-range ballistic missiles and some medium-to-long-range missiles.
    • SM-3 Block II: For this version, we increased the fuselage diameter to 530 mm and scaled down the wings to boost speed and range. However, this model never made it into operational use.
    • SM-3 Block IIA: Co-developed by Raytheon and Mitsubishi Heavy Industries, this system boasted a larger warhead, improved maneuverability, and more advanced sensors. It can also intercept certain intercontinental ballistic missiles (ICBMs) and satellites, and went into service in 2015.

    In terms of operational performance, the Block IA and Block IB versions have an estimated range of between 900 and 1,200 kilometers. The more advanced Block IIA version significantly increases this range to around 2,500 kilometers and even exceeds 5,500 kilometers. Regarding engagement altitude, the Block IA and IB versions can intercept targets at altitudes of up to 500 kilometers, while the Block IIA can operate at altitudes between 900 and 1,050 kilometers, depending on the type of target. Additionally, the terminal speed of the Block IA and IB versions is approximately Mach 8.8, whereas the Block IIA can attain a speed equivalent to Mach 13.2.

    How the SM-3 interceptor missile works:

    When the Aegis missile defense system detects an incoming ballistic missile, an SM-3 interceptor missile is fired from one of the ships in the engagement zone. The Aerojet MK 72 solid-fuel rocket booster launches the SM-3 from the ship’s Mark 41 vertical launch system. Once launched, the missile communicates with the ship that fired it. After the booster burn is complete, the booster separates, and the Aerojet MK 104 solid-fuel rocket motor takes over propulsion while the missile is in the atmosphere. The rocket continues to receive mid-course guidance information from the launch vessel and is also assisted by GPS data.

    The ATK MK 136 solid-fuel third-stage rocket motor ignites after the second stage burns out, propelling the missile (if necessary) into the upper atmosphere and providing pulsed propulsion for the SM-3 until the final 30 seconds before interception.

    In the final, fourth stage, the third stage engine separates, and the Lightweight Extra-Atmospheric Projectile (LEAP) kinetic warhead begins to search for the target using targeting data from the launch vehicle. Aerojet’s Tunable Direction and Attitude Control System (TDACS) allows the warhead to maneuver in the final phase of engagement. The kinetic warhead’s sensors identify the target and attempt to locate the most vulnerable part of the target, guiding the warhead to that point. If the kinetic warhead successfully engages the target, it generates 130 megajoules of kinetic energy at the point of impact, equivalent to 31 kilograms of TNT, thereby neutralizing the target.

    The accompanying video illustrates the four stages, from launch to the moment of interception and destruction of the target.

    How the SM-3 interceptor missile works, from the moment it is launched to the moment it intercepts and destroys the target

    RIM-161 SM-3 missile specifications:

    Type: Kinetic anti ballistic missile
    Manufacturer: Raytheon and Aerojet (Block I) and Raytheon and Mitsubishi (Block IIA)
    Country of manufacture: USA and Japan
    Entered service: 2014 (Block IB)
    Length: 6.55 m
    Wingspan: 1.57 m
    Diameter:
    34.3 cm Block I
    53.3 cm Block II
    Engine: Four-stage solid fuel
    Range:
    900 km Block IA
    1200 km Block IB
    5500 + km Block IIA
    Ceiling: 1050 km Block IIA
    Speed:
    8.8 Mach Block IA – IB
    13.2 Mach Block IIA
    Weight: 1.5 tons
    Warhead: Light extra-atmospheric kinetic warhead for Block I and heavy for Block II
    Guidance: GPS/INS/SARH/Passive IR homing

    RIM-156 SM-2ER missile

    The Block IV (RIM-156A) was the first long-range missile in the Standard family, specifically designed for use with Mk 41 vertical launch systems. It features more advanced guidance and control systems than previous models. This version primarily serves as a final-stage interceptor, which means it intercepts and destroys ballistic missiles during the final phase of their flight within the Earth’s atmosphere. The missile has an estimated engagement range of 185 to 370 km and can reach a maximum engagement altitude of up to 33 km, with a top speed of approximately Mach 3.5.

    At the time of the Block IV’s development, older missiles like the RIM-67 could only be launched from inclined deck-mounted launchers due to their large size. These launchers were heavy and bulky, restricting their use to larger vessels such as cruisers. In contrast, the SM-2 Block IV’s compatibility with the Mk 41 Vertical Launch System enabled its deployment on Ticonderoga-class cruisers and Arleigh Burke-class destroyers. Development of the Block IV missile began in July 1987, with the first test conducted at White Sands Missile Range in 1990 and its inaugural sea trial occurring in 1994. Initial limited production of the missile was authorized in 1995.

    The RIM-156 was not an overall successful interceptor due to instability in the development program. As a result, the U.S. Navy funded modifications for 75 of the 100 RIM-156 missiles that were produced. Of these, five were used for testing, while about 70 modified SM-2 Block IVs remain in the Aegis fleet, providing temporary defense against anti-ship ballistic missiles. The experiences gained from producing the RIM-156 also contributed to the development of the Standard-3 and Standard-6 missile families.

    Additionally, it is important to note that the SM-2 missile is the same type that the U.S. military fired twice on July 3, 1988, at Iran Air Flight IR655, resulting in the tragic loss of all 290 passengers on board, including 66 children under the age of 13.

    SM-2ER Block IV missile specifications:

    Type: Surface-to-air and anti-ship missile
    Manufacturer: Raytheon
    Country of manufacture: United States
    Length: 6.55 m (with booster)
    Wingspan: 1.07 m
    Diameter: 34.3 cm
    Engine: Two-stage solid fuel
    Range: 370 km
    Ceiling: 24.4 km
    Speed: Mach 3.5
    Weight: 1.463 tons
    Warhead: 64 kg Blast-Frag
    Guidance: INS/SARH

    RIM-174 SM-6 missile

    The ERAM (Standard Extended Range Active Missile), also known as the Standard Missile 6 (SM-6), provides a wide range of multi-mission capabilities, including long-range air defense, terminal ballistic missile defense, and anti-surface attack. The development of the SM-6 addressed a significant gap in long-range air defense following the cancellation of the SM-2ER Block IVA project. Manufactured by Raytheon, the missile utilizes the airframe of the SM-2ER Block IV (RIM-156A) and features an active radar seeker derived from the AIM-120C AMRAAM air-to-air missile.

    The SM-6’s development began around 2005, with the first missile being delivered to the United States Navy in April 2011. It achieved initial operational capability in November 2013. In 2016, the SM-6 demonstrated its anti-surface warfare capability, and an air-launched version, the AIM-174B, is anticipated to be introduced in 2024.

    The primary purpose of the SM-6 is to counter long-range aerial threats, effectively engaging aircraft, fighters, cruise missiles, and drones at extended ranges. Additionally, the Block IA and IB versions of the missile possess anti-surface warfare capabilities, allowing them to target both surface ships and ground installations. The missile has an official range of 240 miles (approximately 240 km), but in practical scenarios, its range can exceed 250 miles (around 370 km) against ground or sea targets. The air-launched version, the AIM-174B, has an estimated range of 250 miles (approximately 400 km).

    The SM-6 can engage targets at altitudes of up to 25 miles (33 km) and at a maximum speed of Mach 3.5. To enable these capabilities, the missile is equipped with a 140-pound (64 kg) high-explosive warhead.

    RIM-174 SM-6 missile specifications:

    Type: Surface-to-air, anti-ballistic (terminal phase), and anti-ship missile
    Manufacturer: Raytheon
    Country of manufacture: United States
    Entered service: 2013
    Length: 6.6 m
    Wingspan: 1.57 m
    Diameter: 34 cm Block I
    53 cm Block II
    Engine: Two-stage solid fuel
    Range: Up to 500 km
    Ceiling: 34 km
    Speed: Mach 3.5
    Weight: 1.5 tons
    Warhead: 64 kg Blast-Frag
    Guidance: GPS/INS/ARH, SARH

    Overall, the Aegis system serves as the core of the U.S. anti-ballistic defense program, which has two primary objectives. First, it aims to protect the naval fleet and strike groups. Second, it enhances the overall anti-ballistic program by relaying supplementary data to other land-based defense systems. It’s important to note that the Aegis system was initially developed to counter the long-range missiles of North Korea, China, and Russia—countries that have greater access to the oceans and are geographically closer to the United States. Additionally, the technology behind this system has been specifically provided to allied nations neighboring China or Russia.

    sources:
    RIM-161 Standard Missile 3 , RIM-174 Standard ERAM, RIM-67 Standard, SM-3 Block IIA Missile Excels in First Ever, ICBM Intercept Test, aegis-weapon-system, modernization-program-meets-key-milestones
    mda-test-successfully-intercepts-ballistic-missile-target, Aegis, Aegis-Successfully-Engages-Medium-Range-Ballistic-Missile-Target, Aegis, Ten-years-of-aegis-ballistic-missile-defense-operations
    us-and-allied-ballistic-missile-defenses-asia-pacific-region, Ten-years-of-aegis-ballistic-missile-defense-operations
    leading-way-ballistic-missile-defense, Aegis-continuum-excellence
    apl-plays-pivotal-role-successful-ftx-23-missile-defense-test, The-ballistic-missile-threat-to-the-united-states, PDF1 – PDF2 – PDF3 – PDF4 – PDF5 – PDF6 – PDF8 – PDF9 – PDF10 – PDF11 – PDF12 PDF13 – PDF14 – PDF15

  • Military Knowledge: USS Harry S. Truman (CVN-75) Aircraft Carrier

    Military Knowledge: USS Harry S. Truman (CVN-75) Aircraft Carrier


    A look at the USS Harry S. Truman aircraft carrier:

    This vessel is named to honor Harry S. Truman, the 33rd President of the United States. Truman guided the nation through pivotal events such as World War II and the early Cold War, playing a crucial role in shaping global political dynamics.

    The construction of this ship commenced on November 29, 1993, at Newport News Shipyard in Virginia. Its naming ceremony took place on September 7, 1996; shortly thereafter, on September 13 of that same year, the ship was launched. The final construction phase wrapped up on July 25, 1998, and she was officially commissioned into active duty during a ceremony at Norfolk Naval Base in Virginia, featuring a speech by then-President Bill Clinton.

    In the context of US military doctrine, the Harry S. Truman aircraft carrier is crucial for projecting naval power. Its capability to swiftly deploy a large carrier group anywhere globally makes it essential for quick crisis responses and safeguarding US interests.

    The carrier group is comprised of a varied assortment of air superiority fighters, attack planes, electronic warfare systems, and anti-submarine platforms, establishing the ship as a formidable and self-sufficient combat unit.

    Thanks to its nuclear propulsion, the ship can remain at sea for extended durations without needing to refuel, enhancing its strategic value and operational reach. Additionally, the recent design trend for this class of ships, which focuses on boosting anti-submarine capabilities, exemplifies the adaptability of US naval doctrine in response to emerging geopolitical challenges.

    We will explore the capabilities of this ship in greater detail below.

    General view of the aircraft carrier USS Harry S. Truman

    Physical specifications of the USS Harry S. Truman:

    The ship measures 332.85 meters in length, although some sources round this figure to approximately 333 meters. This significant length facilitates extensive flight operations. The flight deck’s width at its widest point is 76.8 meters, while the hull’s width at the waterline is 40.84 meters. This variation in width helps maintain the ship’s balance and provides ample space for air operations.

    The ship’s draft, which is the vertical distance from the waterline to the lowest point of the hull, is about 11.3 meters, with a maximum navigation draft of 12.5 meters. When fully loaded, the ship’s total weight is reported to be around 104,600 tons, indicating its substantial capacity to carry aircraft, ammunition, fuel, and crew members.

    The ship’s flight deck covers an area of ​​approximately 18,215 square meters. This large surface is perfectly suited for continuous takeoff and landing of aircraft. The angled design of this deck, with a 9-degree deviation from the longitudinal axis of the ship, allows simultaneous takeoff and landing.

    The command island, situated on the starboard side of the deck, serves as the flight control center and is outfitted with various communication and radar systems. Within the ship, there are three spacious aircraft maintenance hangars, divided by robust steel doors to inhibit the spread of fire or explosion. Four large elevators, each approximately 360 square meters in size, facilitate the movement of aircraft between the hangars and the deck.

    The maintenance department features advanced facilities, such as an Aviation Intermediate Repair Department (AIMD) for specialized aircraft repairs and an engine rewinding shop dedicated to electrical systems upkeep, both essential for maintaining the ship’s operational capability.

    USS Harry S. Truman’s propulsion and power distribution system:

    The USS Harry S. Truman achieves its remarkable operational capabilities through a nuclear propulsion system. Central to this system are two Westinghouse A4W pressurized water reactors, utilizing 93.5% pure highly enriched uranium (HEU) to produce heat via a controlled nuclear fission reaction. Each reactor generates approximately 550 megawatts of thermal power, supplying high-pressure steam that drives four steam turbines. These turbines deliver propulsion power to four propeller shafts, each linked to a five-blade propeller with a diameter of 7.62 meters. This formidable setup enables the ship to reach speeds exceeding 56 km/h (30 knots), with an estimated total power output of around 194 megawatts (260,000 horsepower).

    A key strategic benefit of this nuclear propulsion is its long-term operational stability, permitting the carrier to execute combat missions for 20 to 25 years without the need for refueling, which is vital for sustaining a constant presence in remote global regions.

    Alongside the propulsion system, the vessel incorporates a sophisticated power distribution network that supplies electricity to thousands of internal systems. While specific details on its structure and combat damage resilience are not elucidated in the sources, reports of electrical failures suggest that a robust, multi-layered design is essential for this component.

    Moreover, the steam generated by the reactors also powers four C-13 steam launchers, which are instrumental in accelerating aircraft during takeoff, thus playing a critical role in the ship’s air operations capabilities. In contrast, the newer Ford-class vessels are outfitted with the Electromagnetic Launch System (EMALS).

    USS Harry S. Truman combat and defense systems:

    The USS Harry S. Truman is equipped with a comprehensive suite of combat systems designed to counter a variety of threats. While aircraft carriers typically rely on other vessels, particularly destroyers, for long-range air defense, this does not mean that Truman is defenseless. It is equipped with medium- and short-range air defense systems located on islands around its hull.

    For medium-range air defense, the ship utilizes the Evolved Sea Sparrow Missile (ESSM), which is a medium-range, semi-actively guided missile. These missiles are mounted on eight Mk 29 launchers or Mk 57 vertical launch systems. The ESSM provides effective protection against fast, low-altitude anti-ship cruise missiles and other aerial threats.

    For closer-range defense, the ship is equipped with two Mk 49 guided missile launchers carrying RIM-116 Rolling Airframe (RAM) missiles, each capable of hosting 21 missiles. The lightweight, infrared-guided RAM missile is designed to engage anti-ship missiles and asymmetric threats at short ranges.

    Ultimately, the ship features three Mk 15 Phalanx CIWS systems as an additional layer of defense. These systems consist of radar-guided, automatic Gatling guns designed to engage incoming missiles and aircraft at extremely close ranges.

    The AN/SLQ-32(V)4 system equips the ship with electronic warfare capabilities, enabling passive detection, comprehensive analysis, and active jamming of enemy radar systems. Additionally, the Mk 53 Nulka decoy launch system is employed; this active decoy missile generates a false radar signature, drawing anti-ship missiles away. Furthermore, the ship employs passive systems like chaff, which consists of metal projectiles that increase the radar cross-section, and flare, which are high-temperature flares designed to mislead heat-seeking missiles.

    It is important to highlight that the ship, as a part of a Carrier Strike Group, reaps the advantages of coordination and synergy with AEGIS-equipped vessels, such as interceptors and destroyers. The AEGIS system ensures comprehensive air and missile defense for the entire group, as detailed in earlier discussions.

    Read more: Aegis Missile Defense System

    The ship’s main sensor array features the AN/SPQ-9B radar, an X-band pulse-Doppler radar that delivers accurate fire control for both air and surface targets. For extended air search capabilities, the AN/SPS-49(V)5 radar is employed, offering a range of up to 475 km.

    Aircraft landings are conducted with the AN/SPN-46 Precision Approach and Landing System (PALS), offering pilots comprehensive guidance regardless of weather conditions. Air traffic control is managed by the AN/SPN-43C radar, which monitors and directs aircraft surrounding the ship.

    Furthermore, the ship features advanced navigation radars and uses 3D systems, likely the AN/SPS-48E radar, to transmit essential information to other task force ships through data links like Link 16 and potentially CEC.

    AN/SPS-48E radar

    USS Harry S. Truman’s aviation capabilities:

    Aircraft carriers are specifically built to transport various types of aircraft, including those from the United States Navy, Marine Corps, and Air Force. The USS Harry S. Truman typically accommodates around 75 aircraft, with the number potentially rising to 85 or 90 depending on the mission.

    The air wing onboard the USS Harry S. Truman mainly features:

    The central strike and fighter planes comprise the single-seat F/A-18E Super Hornet and the dual-seat F/A-18F. Usually, four fighter-attack squadrons (VFA) operate on Nimitz-class carriers. Moreover, both the F-35C and F-35B stealth jets (the Marine variant) are capable of being launched from these carriers.

    For electronic warfare activities, the Electronic Warfare Squadron (VAQ) employs EA-18G Growler, which play a crucial role in electronic jamming and countermeasures.

    The Airborne Warning Squadron (VAW) handles airborne early warning and control, utilizing approximately four to five E-2D Advanced Hawkeye aircraft.

    Additional air units include the Reconnaissance Air Support Squadron (VRM), Helicopter Sea Combat Squadron (HSC), and Helicopter Sea Strike Squadron (HSM), which perform anti-submarine warfare, search and rescue, and logistical support operations with MH-60S and MH-60R Seahawks, respectively.

    Flight operations on the ship are facilitated by four C-13 steam catapults and four arrestor wires, which allow for rapid launch and recovery of aircraft. An Optical Landing System (OLS) equipped with a Fresnel lens assists pilots during landing and provides a visual sightline for the landing.

    Under operational stress, the carrier can achieve high sortie rates, with Nimitz-class carriers reportedly reaching up to 125 attack sorties daily. The Aviation Maintenance Department (AIMD) on board supports air wing maintenance by conducting mid-level aircraft system repairs.

    Equipment and ammunition are securely managed in designated ammunition stores.

    It’s important to note that a carrier may operate with various Carrier Air Wings (CVW) at different times, depending on the readiness levels of the air squadrons. During its most recent deployment, the carrier was paired with the 1st Aviation Wing, which includes the following squadrons: VFA-11, VFA-143, VFA-81, VFA-136, VAQ-144, VAW-126, HSC-11, HSM-72, and VRM-40.

    Command, Control, Communications, Computers, and Intelligence (C4I):

    The Combat Information Center (CIC) on the USS Harry S. Truman aircraft carrier functions as the core of command and control, where tactical data is gathered, analyzed, and relayed to the ship’s command to support operational decisions. This center is a component of the Navy’s integrated C4ISR framework, utilizing secure satellite communications to ensure stable and reliable connectivity across long distances. Truman employs the Joint Tactical Radio System (JTRS) and the Integrated and Floating Enterprise Network, referred to as CANES, to improve its communication capabilities. This sophisticated communications framework enables simultaneous connections to joint and coalition networks through Link 16 and the CEC Information Exchange System, facilitating real-time coordination of combat operations. Furthermore, the ship is likely linked to the Navy Integrated Fire Control System (NIFC-CA), which enhances the ability to track and engage airborne threats over extensive distances using a network of sensors and firing systems, significantly bolstering the task force’s air defense capabilities.

    Crew and operational history:

    The Nimitz-class generally accommodates around 3,200 personnel on board and roughly 2,480 aircrew members. The crew is divided into various departments, such as operations, engineering, navigation, weapons, medical, and logistics. The class features multiple facilities, including mess halls, gymnasiums, a media center, and medical and dental clinics. In-house logistical needs are fulfilled as well, with capabilities like desalination to produce drinking water and waste management.

    The Truman has a rich history and has been deployed to the Middle East multiple times, notably in the Persian Gulf and Red Sea as part of Operations Iraqi Freedom, Enduring Freedom, and Inherent Resolve. It has also played a significant role in NATO exercises in the Mediterranean and has responded to regional developments. Additionally, its operational record includes missions in the Indian Ocean.

    With an anticipated operational lifespan of about 50 years from its commissioning in 1998, and considering the execution of the Renovation and Overhaul (RCOH) program, the ship is projected to remain a key component of U.S. naval power into the 2040s. Ultimately, the USS Harry S. Truman will be succeeded by the next generation of Gerald R. Ford-class carriers.

    Specifications of USS Harry S. Truman aircraft carrier:

    Type: Nimitz-class aircraft carrier
    Origin: United States
    Manufacturer: Newport News Shipyard
    Commissioned: 1998
    Length: 332.8 m
    Breadth: 76.8 m
    Draft: 11.3 m
    Propulsion: Two A4W nuclear reactors, 260,000 hp
    Range: Unlimited
    Speed: 30 knots (56 km/h)
    Weight: 105,600 tons
    Armament:
    2 × Mk 57 launcher RIM-162 missile
    2 × Mk 49 launcher RIM-116 missile
    3 × Phalanx close-in weapon systems
    Aircraft carried: 90 fixed-wing and helicopters

    More images of the aircraft carrier USS Harry S. Truman:

    Sources:
    USS Harry S. Truman – Wikipedia – Facts & Figures – CVN-75 – U.S. Navy – Ship History – USS Truman Guide – Deployment Extension – Command History – Nimitz-Class Aircraft Carriers – New Challenges for Nimitz-Class – USS Truman Photo Album – Mid-Career Overhaul – Successful Ordnance Loading – Ship Departments – 2025 – Deployment Extension – Mediterranean Collision – CENTCOM Commander Visit – RIM-116 Rolling Airframe Missile (RAM) – Evolved Seasparrow Missile (ESSM) – Cooperative Engagement Capability (CEC) – AN/SPQ-9B Radar Set

  • Military Knowledge: Chengdu J-10 Multirole Fighter Jet

    Military Knowledge: Chengdu J-10 Multirole Fighter Jet

    The development of the J-10 fighter program started in the mid-1980s, initially referred to as Project 8610. It was originally designed as a high-performance air superiority fighter to face emerging fourth-generation aircraft, including the F-16 and MiG-29. However, with the Cold War’s conclusion and evolving requirements, the focus shifted towards creating a multi-role fighter suitable for both air-to-air and ground attack missions. Ultimately, the J-10 serves as a successor to the older Chinese J-7 and Q-5 fighters.

    The development of the J-10 benefited from the canceled Israeli Lavi lightweight fighter project, which itself is similar to and derived from the American F-16.

    The J-10 was originally intended to be powered by a Western jet engine, but the arms embargo imposed on China by the United States and the European Union in 1989 forced China to seek assistance from Russia. As a result, the J-10’s airframe underwent modifications to accommodate the larger Russian Saturn AL-31F engine.

    J-10A fighter jet with Russian AL-31 engine

    The design of the J-10 features a tailless delta wing, incorporating a vertical rudder and two fixed inverted ventral fins located on the underside of the fuselage near the tail (engine). Additionally, it has two canards positioned at the nose.

    The J-10 fighter made its inaugural flight on March 22, 1998, and began operational service with the People’s Liberation Army in 2003. Between 2004 and 2006, an initial batch of 100 units in both single-seat and two-seat variants was delivered to the PLA Air Force (PLAAF).

    The Chengdu J-10 has been developed into four variants, designated with the suffixes A, S, B, and C, each featuring slight differences in appearance.

    Appearance differences in different models of the J-10 fighter jet

    J-10A: The J-10A is the first variant introduced in the J-10 family. It is reported that approximately 300 units of this model are currently in service, although production has now ceased. The J-10A is equipped with a domestic Type 1473 pulse-Doppler radar, which can track up to 10 targets simultaneously and engage 2 targets with semi-active radar-guided PL-11 air-to-air missiles, or 4 targets using active radar-guided PL-12 (SD-10) air-to-air missiles. The Type 1473 radar is recognized as China’s first successful and operational pulse-Doppler radar system. The J-10A fighter is powered by a Russian Saturn AL-31FN turbofan engine, providing 79.43 kN of thrust in dry mode and 122.58 kN with afterburner. The naval variant of this model is known as the J-10AH.

    J-10S: A two-seat, trainer version of the J-10, which matches the performance and avionics of the J-10A. It features an extended front fuselage to fit an additional pilot seat. This aircraft serves both pilot training and standard fighter roles. The two-seat naval version is commonly referred to as the J-10SH.

    J-10S two-seat fighter jet participating in a military exercise in Russia
    J-10S fighter jet undergoing aerial refueling

    J-10B: An enhanced iteration of the J-10A, publicly unveiled in 2016. This model features a larger radome designed to accommodate the active electronically scanned array (AESA) radar system and infrared search/tracking suite (IRST) in the nose. It incorporates an electronic-optical targeting system (EOTS) and a redesigned air intake compared to the earlier version. Additionally, the aircraft boasts an upgraded avionics suite, which includes an indigenous passive electronic array (PESA) fire control radar capable of engaging four targets at once. Beyond standard armaments, the J-10B can deploy the new PL-10 infrared-guided and PL-15 active radar-guided missiles. Although the J-10B typically uses the AL31 engine, some variants are reportedly equipped with the WS-10.

    J-10C: This is the newest model in the J-10 series, which first flew in December 2013 and was introduced into service with the People’s Liberation Army Air Force (PLAAF) in 2018. Visually, it closely resembles the B model. Essentially, as an upgraded variant of the J-10B, this fighter incorporates all its predecessors’ capabilities in a more efficient and optimized manner. The J-10C features the Chinese Shenyang WS-10B engine and the domestically developed active electronically scanned array (AESA) fire control radar designated KLJ-10. This advanced radar can identify small targets with a radar cross-section (RCS) of 5 square meters from over 200 km away. Additionally, the J-10C is armed with short-range PL-10 air-to-air missiles featuring infrared guidance and long-range PL-15 air-to-air missiles with active radar guidance. The J-10C is characterized as a Chinese 4.5th generation fighter.

    Chinese Air Force J-10C fighter jet

    The article further discusses additional details and features of the J-10 fighter, which include:

    The J-10 cockpit incorporates “hands on throttle and stick” (HOTAS) controls, enabling operation of weapon systems without leaving the aircraft’s essential controls. It includes one color and two monochrome liquid crystal multifunction displays (MFDs), along with a holographic heads-up display (HUD) that provides a wide field of view. Additionally, the aircraft is equipped with the domestically developed Helmet Mounted Site (HMS).

    The J-10 B and C fighters feature an electronic-optical targeting system (EOTS) positioned on the right side in front of the cockpit. This system comprises an infrared search and track (IRST) sensor along with a laser rangefinder (LR), enabling passive target identification without activating the fire control radar, thus minimizing the chances of the aircraft being detected.


    The J-10B and J-10C models feature a diverterless supersonic inlet (DSI). This design removes all moving components from the air inlet, thereby decreasing the overall weight and minimizing the aircraft’s radar signature.

    The difference in air intake between the J-10A (right image) and the J-10B/C (left image) is visible.

    The J-10B and J-10C feature a curved upper edge on the tail, contrasting with the flat tail of the J-10A. Additionally, a significant lip has been introduced at the tail’s tip to house electronic warfare and electronic countermeasures (EW/ECM) systems. The fuselage is equipped with four black ECM antenna arrays: a larger one positioned on each side of the cockpit and a smaller one on each side of the rear fuselage close to the engine nozzle.

    The EW/ECM equipment in the tail section of the J-10B fighter

    The fighter jet is equipped with a Type 23-3 twin-barreled 23mm cannon, which is a reverse-engineered Russian GSh-23L cannon, and is mounted on the left side of the front landing gear.

    J-10B fighter jet firing with a 23mm cannon

    The fighter is equipped with 11 external weapons bays: six located under the wings, two beneath the air intakes, and three under the fuselage. Its primary air-to-air armaments consist of the PL-15 long-range missile, the PL-11 semi-active radar-guided medium-range missile, the PL-12 (SD-10) active radar-guided medium-range missile, and the PL-8 short-range infrared missile.

    The J-10C can carry the Russian Vympel R-73 (AA-11 Archer) or R-77 (AA-12 Adder) missiles, as well as the KH-31P anti-radar missile.

    For ground attack missions, the aircraft can carry conventional low-drag bombs weighing up to 250 kg or laser-guided bombs. A laser targeting pod can also be carried under the fuselage for target designation. More complete information on the weapons is provided at the end of the article in the fighter specifications section.

    Pakistani J-10C fighter equipped with PL-15E and PL-10E missiles and additional fuel tank

    The J-10C has an empty weight of approximately 9,750 kg and weighs 14,000 kg in a normal air-to-air combat configuration. In its maximum takeoff configuration, it weighs 19,277 kg. The aircraft has an internal fuel capacity of 4,950 kg and can carry a maximum external weapons load of 5,600 kg. It is capable of reaching a maximum speed of Mach 1.8 at high altitude and Mach 1.2 at sea level.

    Regarding its engine, the J-10C is powered by the domestically produced Shenyang WS-10B engine, which provides a thrust of 144 kN (32,000 lbf). This engine has a service life of 1,500 hours. A newer variant, the WS-10B-3, features a thrust vectoring nozzle (TVC) and was showcased at the 2018 Zhuhai Air Show in China.

    Overall, the WS-10 engine, developed from the Russian AL-31 engine, has multiple versions used to power various Chinese fighter jets, including the J-10, J-11, J-15, J-16, and the J-20.

    A Chinese J-10B fighter jet equipped with a WS-10B-3 engine performs the “Pugachev Cobra” maneuver at the 2018 Zhuhai Air Show [Photo by ZHOU GUOQIANG/FOR CHINA DAILY]

    Pakistan is the only country other than China to operate J-10 warplanes. The Pakistan Air Force operates 20 J-10CEs, with another 16 in the process of production and delivery.

    J-10CE fighter jet for export at the 2024 Zhuhai Air Show

    In May 2025, during the Indo-Pakistan air-to-air combat, the Pakistan Air Force’s J-10Cs successfully shot down at least four aircraft from the Indian Air Force, which were of French and Russian origin, using PL-15E missiles. This operation marked a significant milestone for the J-10C fighter jets.

    The PL-15 missile poses a considerable threat to American forces, as it can easily place fighter jets equipped with AIM-120 in a vulnerable position in the Pacific region. The Chinese version of the PL-15 has a range of 200–300 km, while its export variant, the PL-15E, utilized by the Pakistan Air Force, has an effective range of about 145 km. This missile is powered by a dual-pulse solid-fuel rocket motor, enabling it to reach speeds exceeding Mach 5. It is also equipped with an active electronically scanned array (AESA) radar seeker and a mid-flight datalink for enhanced targeting capabilities.

    The J-10C can be viewed as an alternative to the American F-16 and the Swedish Gripen. As a technologically updated and relatively affordable option, the J-10C is ideal for customers looking to enhance their fleet with advanced air defense systems, especially if they prefer to avoid political complications associated with Western fighter jets.

    This lightweight fighter boasts high maneuverability, a powerful engine, and an advanced radar system with a range exceeding 200 km. It is also compatible with long-range missiles and features an updated cockpit. In terms of ammunition capacity, the J-10C is comparable to the Gripen but has a smaller overall capacity than the F-16. To mitigate this limitation, China has equipped the J-10C with a dual missile pylon that can hold either two additional short-range missiles or two beyond-visual-range (BVR) missiles, thereby enhancing the fighter’s payload and operational range.

    J-10C with dual weapons pylon at the 2024 Zhuhai Air Show equipped with two PL-15 missiles

    J-10C specifications:

    Type: Multirole fighter jet
    Country of manufacture: China
    Manufacturer: Chengdu Aircraft Corporation (CAC)
    Crew: 1 (2 on J-10S)
    Length: 16.9 m
    Wingspan: 9.8 m
    Height: 5.7 m
    Wing area: 37 m2
    Empty weight: 9,750 kg
    Gross weight: 14,000 kg
    Maximum takeoff weight: 19,277 kg
    Fuel capacity: 4950 L (3860 kg) internal. 4000 L (3120 kg) external with 3 drop tanks (2 × 1600L + 1 × 800L)
    Engine: 1× Shenyang WS-10 turbofan with afterburner (AL-31 on J10-A/B)
    Top speed: 2,222 km/h (Mach 1.8)
    Range: 1,850 km (without external fuel tanks)
    Combat range: 550 km
    Ferry range: 4,600 km
    Ceiling: 18,000 m (59,000 ft)
    Armament:
    – 11 hardpoints with a capacity of 5,600 kg of external fuel and ammunition
    – One 23 mm Gryazev-Shipunov GSh-23 cannon
    – 90 mm rocket pod
    – PL-8, PL-10 (J-10C), PL-11, PL-12, PL-15 (J-10C) air-to-air missiles
    – KD-88 and YJ-91 air-to-surface missiles
    – LT-2 and LS-500J laser-guided bombs
    – LS-6, GB3, GB2A, GB3A air-to-air bombs
    – FT-1 satellite-guided bombs
    – 250 and 500 kg free-fall bombs
    External pods:
    K/JDC01A targeting pod (on J-10A)
    Hongguang-I infrared search and tracking pod (on J-10A)
    CM-802AKG targeting pod for KD-88 and YJ-91 (on J-10C)
    KG600 electronic warfare pod
    Blue Sky navigation and attack pod

    Chengdu J-10C multirole fighter jet

    More images of the Chengdu J-10C fighter jet:

    Sources:
    Chengdu J-10

    Chengdu J-10
    Chengdu-J-10
    J-10
    PLA’s J-10C fighter
    Chengdu J-10 Firebird
    Chengdu J-10

    KLJ-10
    Pakistan’s J-10CE fighter brings new radar and long-range missiles
    J-10 dual missile pylon
    WS-10

  • Military Knowledge: GBU-57 MOP

    Military Knowledge: GBU-57 MOP

    Introduction and Development History of the GBU-57 MOP:

    As a heavy-duty penetrator bomb, the GBU-57 MOP (Massive Ordnance Penetrator) can target and destroy heavily fortified underground facilities like bunkers, command centers, and weapons depots. Designed for daytime or nighttime attacks on targets deep underground, as well as for deterring enemies with buried infrastructure, the bomb is built for planned strikes.

    The GBU-57 MOP project started in the early 2000s, a joint effort by Northrop Grumman and Lockheed Martin. However, due to financial and technical hurdles, the initial attempt was halted. After the US invasion of Iraq in 2003, an analysis of bunker-busting bombs used showed they lacked the penetration power to take out fortified targets.

    This sparked renewed interest in developing a larger bunker-busting bomb, and the MOP project was launched by the Defense Threat Reduction Agency (DTRA) to meet a long-standing Air Force need. The concept of “Big BLU” – large penetrating and explosive bombs like MOP and MOAB – was also proposed.
    In the end, Boeing won the contract to design and produce the bomb.

    Boeing and US Army weapons specialists stand in front of a mock-up of the MOP bomb at Whiteman Air Force Base

    The first static detonation test of the bomb was conducted in 2007 at the White Sands Missile Range. Flight tests of the weapon were conducted from 2008 to 2010, including launches from B-52 and B-2 bombers. In February 2010, the project was transferred to the Air Force, and the first deliveries of operational units of the bomb began in September 2011.

    B-2 bomber releases and tests GBU-57 MOP bomb

    Read more: Military Knowledge: B-2 Spirit Bomber

    Technical Specifications of the GBU-57 MOP Bomb:

    The estimated weight of the GBU-57 Massive Ordnance Penetrator (MOP) is between 12,300 and 13,600 kilograms, depending on various sources. The bomb measures approximately 6.2 meters in length and about 0.8 meters in diameter. To put this into perspective, its weight is comparable to that of two adult African elephants, highlighting its significant scale.

    The warhead of this bomb is composed of a mixture of AFX-757 and PBXN-114 explosives. The total weight of the warhead ranges from 2,400 to 2,600 kilograms, which includes around 2,080 kilograms of AFX-757 and 341 kilograms of PBXN-114. The body of the warhead is made from a high-performance steel alloy, designed to maintain its integrity upon impact. This construction enables the bomb to deliver a substantial explosive payload while preserving the penetrator’s structure during impact. The bomb’s considerable weight and specialized alloy are crucial to its penetration capability, much like driving a steel nail into rock. Most of the bomb’s weight resides in its body.

    The GBU-57 MOP is estimated to penetrate approximately 60 meters of reinforced concrete with a strength of 5,000 PSI. It can also penetrate about 40 meters of relatively hard rock and around 8 meters of reinforced concrete with a strength of 10,000 PSI. It is important to note that the reported penetration capabilities of 60 meters are based on preliminary information and prototypes of the bomb, and there is currently no precise information available regarding the ultimate penetration capacity of the latest model.

    Comparison of penetration of the MOP bomb (possibly a prototype) with the BLU-109 and GBU-28 bombs

    The GBU-57 Massive Ordnance Penetrator (MOP) is a precision-guided munition that utilizes a GPS/INS (Global Positioning System/Inertial Navigation System) for enhanced targeting accuracy, achieving precision within a few meters. The bomb features four fixed trapezoidal wings along its midsection and four lattice fins at its tail, which help adjust its trajectory during flight.

    Equipped with a smart fuze (LPSF), the GBU-57 MOP can modify its detonation timing based on the depth and configuration of the underground target. It incorporates void-sensing fuzes that trigger detonation if a large cavity is detected within the bunker. Additionally, the weapon includes a delay fuse, allowing the warhead to survive the initial impact upon penetrating the target before it detonates.

    In comparison to BLU-109, the MOP bomb possesses over ten times the explosive power and significantly greater penetration capabilities. The BLU-109 weighs only 910 kg and has a much shallower penetration depth.

    Comparison of penetration of the MOP bomb (probably a prototype) with the BLU-109 and GBU-28 bombs

    Variants of GBU-57:

    The GBU-57 has undergone numerous upgrades and modifications over the years, resulting in a variety of variants. These upgrades have included improvements to the fuze system, advanced guidance systems, and increased penetration capabilities, currently spanning seven generations. Common variants of this bomb use the BLU-127A/B, BLU-127B/B, and BLU-127C/B warheads, respectively.

    GBU-57/B: This version is equipped with the BLU-127/B warhead. The United States Air Force has addressed an integration issue that existed with the original version of the bomb on the B-2 Spirit stealth bomber. A new smart fuse has also been tested to enhance its effectiveness in situations where the depth or precise location of a buried target is uncertain.

    GBU-57A/B: This version uses the BLU-127A/B warhead.

    GBU-57B/B: This model is equipped with the BLU-127B/B warhead.

    GBU-57C/B: The specific upgrades made by Boeing to this version are not detailed in the available sources.

    GBU-57D/B: Information about the modifications made by Boeing to this version is also unclear, but it is believed that its fuse and primer have been upgraded.

    GBU-57E/B: This version has been part of the operational inventory since at least 2016 and is equipped with the BLU-127C/B warhead. It has improved capabilities for penetrating concrete structures compared to earlier models. It can be reasonably assumed to have greater penetration power than the 2007 models, which could penetrate to a depth of 60 meters. The BLU-127C/B warhead features a booster in its front section, although its exact function remains unknown. Currently, the US Air Force does not have a newer version of the GBU-57E/B in operational use.

    GBU-57F/B: This model is described as the latest version, but little is known about its exact capabilities.

    Overall, the US is working to boost the effectiveness of this bomb by continually upgrading it. As noted, the 60-meter penetration power is from the early models, and there’s no information available on the bomb’s penetration after receiving later upgrades. Additionally, the US is reportedly developing a version of this bomb with similar characteristics to the GBU-57, but lighter in weight, to enable its use in fighter jets.

    Production numbers and costs of the GBU-57:

    Developing the GBU-57 MOP weapon is expected to cost around $400 to $500 million. Each unit’s production cost is estimated to be roughly $3.5 million, with upgraded versions likely to be even more expensive. Although the exact number of MOP bombs produced is classified, estimates suggest a relatively small stockpile – about 20 by 2015, with potential for increased production.

    GBU-57 MOP specifications:

    Type: bunker buster bomb
    Origin: U.S.
    Manufacturer: Boeing
    Length: 6.2 m
    Diameter: 80 cm
    Total bomb weight: around 12.5 tons
    Warhead weight: around 2.5 tons
    Penetration: 61 m
    Guidance: GPS/INS

    GBU-57 bomb MOP

    Sources:
    GBU-57A/B_MOP – MOP – massive-gbu-57ab-mop-was-built-war-china – what-aircraft-carry-us-air-force-30000-pound-massive-ordnance-penetrator – gbu-57-massive-ordnance-penetrator
    the-evolution-and-strategic-imperative-of-the-gbu-57 – massive-ordnance-penetrator – mop – our-best-look-yet-at-the-massive-ordnance-penetrator – mopping-up-the-usas-30000-pound-bomb

  • Military Knowledge: Kizilelma Drone, Turkish Army’s First Jet Engine Drone

    Military Knowledge: Kizilelma Drone, Turkish Army’s First Jet Engine Drone

    Kizilelma’s history:

    After Turkey was excluded from the F-35 production and delivery program by the United States, it commenced developing an advanced drone with a phased array radar and artificial intelligence capabilities in 2018 through Baykar.

    The Turkish Air Force aimed to purchase between 110 and 120 F-35A CTOL aircraft. However, Turkey’s official order was for only 6 aircraft, of which one, identified as 0001-18, was delivered in Texas, and a Turkish pilot was trained in the United States. Following Turkey’s acquisition of the S-400 missile system, the US Senate passed legislation on June 18, 2018, prohibiting the export of the F-35 fighter to Turkey.

    Prior to the US sanctions, the Turkish Ministry of Defense had shown interest in the vertical take-off variant of the F-35. Due to the delivery issues with this fighter, it announced that the Turkish Navy would instead utilize domestically produced unmanned aerial vehicles (UCAVs), such as the Bayraktar TB3, in the short term.

    At that time, Turkey was planning to construct a helicopter carrier to support ground operations, which was intended to operate with the F-35B fighter. This vessel is now in service under the name Anadolu and has been adapted to operate the Kızılımla drone.

    Despite Turkey being removed from the F-35 parts supply and the cancellation of the fighter jet sale, it had been producing key airframe and engine components for the F-35 program until 2022. Capitalizing on the partnership and the technology transferred, Turkey aimed to develop a stealth drone, leveraging most available components.

    For the drone’s engine, two Ivchenko-produced turbofan engines, the AI-25TLT and AI-322F, were chosen, with the AI-25TLT powering the prototypes. Engine integration was completed successfully on September 29, 2022, and two months later, on November 20, 2022, the taxi test was also successful.

    The Red Apple (Kızılımla) achieved its first successful flight 13 days after the taxi test, on November 3, 2022. Baykar shared a video on March 15, 2025, showcasing the flight test of its newest model, the Kızılımla. The video highlights minor modifications to the Kızılımla when compared to earlier versions.

    Video published on March 15, 2025 of the Kızılımla flight test

    In October 2024, Baykar President Selçuk Bayraktar announced that mass production of the Kızılımla had begun and that one drone had been produced. The company plans to produce more than 10 units by 2026. Efforts are ongoing to develop and optimize the drone, including its radar and sensors.

    Kızılımla’s design:

    The Kızılımla drone features a lightweight body made of carbon composite thermoplastic materials and incorporates a stealthy design. It is powered by a Ukrainian turbofan engine. The Kızılımla includes two air intakes positioned on the fuselage’s sides and a trapezoidal wing structure situated at the fuselage’s center.

    To enhance maneuverability, two canards are positioned at the drone’s nose. Additionally, it has two vertical rudders arranged in a V-shape at the rear for improved control, while the horizontal rudder at the back has been eliminated.

    This drone is equipped with an internal weapon compartment containing two weapon racks, along with three hardpoints under each wing, providing the Kızılımla a total of six hardpoints for ordnance.

    An image of the Kizilelma drone showing the general shape of the wings.

    The Kizilelma drone serves as both a combat drone (UCAV) and a wingman drone. A wingman drone operates alongside the main fighter jet, equipped with a radar to gather battlefield data before the fighter jet engages. In this role, the wingman drone can sacrifice itself to shield the manned fighter jet from unexpected attacks. Typically, wingman drones are engineered for air-to-air combat, benefiting from stealthy designs.

    The Kizilelma drone is built for a variety of missions, including air-to-air combat, strategic strikes, close air support (CAS), suppression of enemy air defenses (SEAD), destruction of enemy air defenses (DEAD), and interception and communication disruption (SIGINT/ELINT).

    Additionally, the Kizilelma drone can take off from short runways (LHD) or from drone carriers such as Anadolu and other aircraft carriers.

    Video of the Kizilelma drone test next to the Turkish Air Force F-16 fighter jet

    Kizilelma’s Engine:

    Two types of engines have been introduced for the Kizilelma drone, which, according to the infographic published by Baykar, will be used to build three types of this drone.

    • Kizilelma Drone Version A: This version is equipped with an AI-25TLT turbofan engine that does not have an afterburner.
    • Kizilelma Drone Version B: This version features an AI-322F turbofan engine with an afterburner.
    • Kizilelma Drone Version C: This version is equipped with two AI-322F turbofan engines, both with afterburners.

    These three versions will differ in terms of speed, range, and flight altitude. According to the available information, all three types will be developed over time, with Version A still under development.

    Infographic published by Baykar Defence

    The infographic indicates that the ongoing development project incorporates the AI-25TLT turbofan engine, which does not feature an afterburner. This military engine was initially created by the Ivchenko OKB in Soviet Ukraine and is now manufactured by the Sich company, based in Zaporizhzhia. Beyond the AI-25TLT, Sich also produces engines for aircraft and helicopters, in addition to turbines and industrial gas installations for marine use.

    The Kizilelma features a camera located beneath its nose and a phased array radar produced by ASELSAN. The specific details of the camera and radar have not been disclosed. Nonetheless, the images available suggest that the camera is seamlessly integrated into the body, helping to minimize the drone’s radar cross-section. Additionally, this drone is equipped with a sophisticated electronic warfare system.

    A view of the camera used in the Kizilelma drone on a drone model at the exhibition

    This drone appears to incorporate the Israeli-made ADA-O anti-jamming system, which ensures GPS functionality for ground platforms amidst electronic warfare targeting GPS signals. The system is compatible with various armored platforms, vehicles, artillery, and different aerial platforms. Generally, it aims to counter jamming of GNSS on a global scale. It has also been deployed on Israeli Hermes and Eitan drones. This evidence suggests that alongside American technologies utilized in the Ukrainian airframe and engine, an Israeli system was integral to the development of this drone.

    Armament:

    The Kizilelma drone is capable of carrying 1.5 tons of ordnance, including laser-guided bombs, TEBER and Lacin precision-guided bombs, Gökdoğan and Bozdoğan air-to-air missiles, and SOM-J, HGK, LGK, and Minyatür Bomba air-to-surface cruise missiles.

    Specifications of the Kızılelma multirole combat drone (Kızılelma-A model):

    Type: Multi-role combat drone
    Manufacturer: Baykar Defense
    Manufacturer: Turkey
    First flight: 2022
    Length: 14.7 m
    Wingspan: 10 m
    Height: 3.3 m
    Engine:
    One AI-25TLT turbofan engine in Kızılelma-A
    Two AI-322F turbofan engines in Kızılelma-B
    Combat Range: 926 km
    Maximum Speed: 1,100 km/h (Mach 0.9)
    Cruise speed: 735 km/h (Mach 0.6)
    Altitude: 45,000 ft (14,000 m)
    Endurance: 5 hours
    Maximum takeoff weight: 6,000 kg
    Weapon payload: 1,500 kg
    Radar: Active phased array (AESA)
    Armament:
    – Two hardpoints in the internal weapons bay and six hardpoints under the wings (three on each wing)
    Cruise missiles SOM, LAÇİN Kit Guided Freefall Bombs, Turkish Miniature Bombs, GÖKDOĞAN (Shahin) Air-to-Air Missile, and BOZDOĞAN or Merlin Infrared Air-to-Air Missile

    Sources:
    Bayraktar KIZILELMA
    Bayraktar KIZILELMA Unmanned Combat Aircraft System
    ” Kızılelma ” 2023’de semalarda olacak!
    Baykar Bayraktar Kizilelma
    UAV Bayraktar Kizilelma: New Generation Turkish Combat Drone
    Bayraktar KIZILELMA ilk motor entegrasyon testini başarıyla tamamladı
    Kızılelma takes to the sky!
    Bayraktar Kızılelma
    IAI Unveils ADA-O to enable land platforms deal with GNSS anti-jammers

  • Military Knowledge: MQ-9 Reaper Drone

    Military Knowledge: MQ-9 Reaper Drone

    History of the MQ-9 Design and Development:

    The MQ-9 Reaper drone is the result of the evolution of one of the most successful UAV projects in the United States: the MQ-1 Predator. This project was initially initiated by the American company General Atomics Aeronautical Systems, Inc. (GA-ASI) as a private venture.

    In 1998, as the U.S. military’s operational needs expanded to include unmanned systems with greater range, altitude, and payload capacity, GA-ASI engineers began designing a new platform based on the Predator. This new platform, later known as the Predator B, also received financial support from NASA.

    The first flight of the Predator B prototype took place in February 2001. Although the drone appeared similar to the MQ-1 Predator, it was completely redesigned in terms of dimensions, engine power, and body layout. The most significant design change was the introduction of an upward-facing V-shaped tail, which improved flight stability compared to the classic downward-facing tail of the MQ-1 Predator.

    During the testing phase, two types of engines were installed on the drone: a Honeywell TPE-331-10T turboprop engine, which provided acceptable performance, and a Williams FJ44-2A turbofan engine, which was eventually discarded due to its high cost and limited efficiency.

    In February 2003, the United States Air Force officially joined the project by ordering a turboprop-powered variant, the MQ-9A. They received two prototypes, known as YMQ-9A, for evaluation in testing weapons, reconnaissance capabilities, and maneuverability.

    The MQ-9 Reaper was developed for the United States Air Force as a direct response to a Department of Defense (DoD) directive aimed at supporting overseas operations, known as “Overseas Contingency Operations.” In the early 2000s, the rise of asymmetric threats created the need for a drone capable of extensive reconnaissance and surveillance, as well as the ability to target and destroy moving targets in real time with high accuracy.

    The Reaper far exceeded the operational performance of the MQ-1 Predator. It can fly at altitudes exceeding 15,200 meters (50,000 feet) and has a flight endurance of up to 27 hours. Equipped with advanced systems such as the AN/APY-8 Lynx combined aperture radar and the Raytheon AN/AAS-52(V) MTS multispectral electro-optical system, the Reaper significantly enhanced its reconnaissance and targeting capabilities. Furthermore, the MQ-9A evolved into a fully operational offensive platform, capable of deploying a diverse array of guided weapons.

    In 2006, the United States Air Force formally designated the MQ-9A Reaper. The drone commenced operational service in 2007, completing its inaugural combat mission in Afghanistan.

    As of 2018, the US Air Force had ordered 366 Reapers from General Atomics, with more than 300 delivered by 2021. The US Air Force plans to retire its MQ-9A fleet by 2035.

    Appearance and performance characteristics of the MQ-9 drone:

    The Reaper measures 11 meters in length, stands 3.8 meters tall, and features a wingspan of 20 meters, making it considerably larger than the MQ-1. It has a base weight of 2,223 kilograms without payload, while its maximum takeoff weight reaches 4,760 kilograms. For the Extended Range (ER) variant, this maximum weight rises to 5,307 kilograms. Additionally, the ER version boasts a fuel capacity of 903 gallons (approximately 6,000 pounds), allowing for extended flight ranges.

    A view of an MQ-9 taxiing on a runway in Afghanistan, 2007

    The Reaper uses a Honeywell TPE331-10GD turboprop engine that produces 900 horsepower. This engine allows the drone to reach a maximum speed of 480 km/h, but its typical flight speed is in the range of 280 to 310 km/h.

    The manufacturer has officially announced that the MQ-9A has a flight endurance of 27 hours and a range of 1,850 km. In 2015, the US Air Force first tested the Extended Range (ER) version of the MQ-9A, which features external fuel tanks mounted under the wings and a more robust landing gear. The ER version boasts a flight endurance of 34 hours and a range of 2,592 km.

    In terms of armament, the MQ-9A is equipped with seven hardpoints and can carry up to 1,361 kg of ordnance. It has a variety of weapons options, including Sidewinder and Stinger air-to-air missiles, Hellfire missiles with a range of 8 to 12 km, GBU-12 Paveway II laser-guided bombs weighing 227 kg, GBU-38 JDAM GPS-guided bombs, and more advanced versions of the GBU-49 and GBU-54 Laser JDAM, which have a range of approximately 15 km.

    The MQ-9 is equipped with Raytheon’s advanced Multispectral Targeting System-B (MTS-B) electro-optical system, which features an infrared sensor, color and monochrome day vision cameras, short-wave infrared cameras, laser designators, and laser rangefinders.

    The system is capable of long-range surveillance, target acquisition, precise tracking of moving targets, range finding, and laser designator for a variety of air-to-surface munitions. In addition to the MQ-9 Reaper, the MTS-B is also used in the U.S. Navy’s MQ-4C unmanned aerial vehicle fleet.

    Read more: Military Knowledge: Raytheon’s Multispectral Targeting System-B (MTS-B)

    MTS-B electro-optical system

    MQ-9 Block 5 drone:

    The MQ-9 Block 5 is an enhanced version of the original MQ-9 prototype (Block 1), featuring improved endurance, range, and payload capacity. Key upgrades in the Block 5 model include wing fuel pods, reinforced landing gear, and a four-bladed propeller. It also has enhanced electrical power, more secure communications, and the capability for automatic landing. The MQ-9 Block 5 ER variant has an endurance of 34 hours and a range of 2,592 kilometers. In general, General Atomics is in the process of upgrading its MQ-9 fleet to ER versions.

    MQ-9B drone – Introducing other MQ-9 drone models:

    The MQ-9B drone builds on the MQ-9A model and is recognized as the SkyGuardian and SeaGuardian. It is larger and boasts enhanced capabilities compared to the MQ-9A. The MQ-9B’s length measures 11.6 meters, with a wingspan of 24 meters. Its maximum takeoff weight is 5670 kilograms, and it can reach a flight ceiling of 12200 meters. A significant factor in developing the MQ-9B was the need to meet NATO civil aviation regulations, allowing its operation in civilian airspace, whereas the MQ-9A is solely dedicated to military functions.

    MQ-9B SkyGuardian: The SkyGuardian, a variant of the MQ-9B, meets European civil aviation regulations. Known as the Certifiable Predator B, it is the first drone certified for use in civilian airspace. Notable features include a 40-hour endurance, a maximum altitude of 12,190 meters, and a 24-meter wingspan. Additionally, the SkyGuardian comes with cutting-edge systems, such as an EO/IR imaging sensor, an anti-icing system, and a TCAS collision avoidance system.

    MQ-9B SeaGuardian: The SeaGuardian, a specialized version of the MQ-9B, is tailored for maritime missions. It boasts an endurance of up to 18 hours (some reports indicate 30 hours) and can operate over a distance of 2,200 km, making it ideal for maritime surveillance and search-and-rescue tasks. A standout feature is the Leonardo Seaspray 7500E V2 AESA radar, capable of detecting maritime targets. Additionally, the drone is outfitted with sophisticated systems for deploying sonobuoys to monitor submarines.

    MQ-9B STOL: STOL means “short takeoff and landing.” The MQ-9B STOL can take off and land in challenging environments, including aircraft carriers. General Atomics introduced this concept in 2022. This kit allows for the replacement of wings, tail, and propeller to enhance short takeoff and landing performance.

    MQ-9B STOL drone

    MQ-9 UAV operational history:

    The Reaper drone has primarily conducted its operational activities in the Middle East. Its most significant operation to date was the assassination of Qassem Soleimani, commander of the Quds Force of the Islamic Revolutionary Guard Corps, in Baghdad on January 3, 2020. The United States regime used Hellfire missiles in this operation.

    Afghanistan (2007 to 2021): The Reaper’s combat presence was first established in Afghanistan, quickly gaining a reputation as a “hunter” platform. A notable incident occurred on September 13, 2009, when a Reaper that had lost control was shot down by a US F-15E fighter jet to prevent it from entering Tajik airspace. By 2010, Reaper drones were flying more than 33,000 close air support missions annually. Their usage peaked during the withdrawal of US forces in 2021, where they played a key role in supporting evacuation operations.

    Iraq and Syria (since 2007): Reaper drones have been extensively utilized in Operation Iraqi Freedom and the fight against ISIS in Operation Inherent Resolve. This includes the 2015 strike on Jihadi John in Raqqa, Syria, using a Hellfire missile. In 2023, as the conflict amongst various factions and the Israel-Hamas war intensified, Reapers carried out the majority of US airstrikes in Syria and were also employed to target Iranian-backed forces.

    Yemen: Initially, Reapers were used for reconnaissance missions against Al-Qaeda in the Arabian Peninsula (AQAP). However, following the Ansar Allah operation in Yemen and the overthrow of the Mansour Hadi government, they began to conduct operations against Ansar Allah. The first recorded downing of an MQ-9 occurred in 2017. Reaper missions in Yemen intensified as Ansar Allah ramped up operations in the Red Sea in 2023. From September 2023 to April 2025, Yemeni Ansar Allah shot down at least 19 Reapers (with a total of 23 since 2017), incurring losses collectively estimated at over $595 million. These losses highlight the Reaper’s vulnerability in high-intensity conflict zones.

    Read more: Yemeni Army: The Annihilator of American MQ-9 Drones!

    Gaza (since 2023): Following the onset of the Gaza War in October 2023, Reapers flew unarmed over the Gaza Strip to identify the locations of American hostages during Israeli operations. However, no detailed information is available regarding these operations.

    MQ-9 drone users:

    • United States includes NASA, Air Force, Navy, Marine Corps, Coast Guard, and Department of Homeland Security (US Customs and Border Protection)
    • United Kingdom
      – Early versions of the MQ-9A Reaper for surveillance operations in Afghanistan and the Middle East.
      – Protector RG Mk 1, a more advanced version to replace the MQ-9A, capable of carrying Brimstone 3 missiles and Paveway IV bombs.
    • Italy
      – Early versions of the MQ-9A Reaper for surveillance missions in NATO and Libya operations.
      – MQ-9A Block 5, an upgraded version.
    • Netherlands
      – Upgraded version of the MQ-9A Reaper Block V for surveillance and reconnaissance missions
    • Japan
      – Maritime version of the MQ-9B SeaGuardian for maritime threat surveillance.
    • United Arab Emirates
      – MQ-9B SkyGuardian for border reconnaissance and surveillance missions.
    • France
      – MQ-9A Reaper for counterterrorism and reconnaissance operations in Africa and the Middle East.
    • Spain
      – MQ-9A Reaper for surveillance and border security operations.
    • Poland
      – MQ-9B SkyGuardian version for reconnaissance and surveillance missions.
    • Morocco
      – MQ-9B SeaGuardian maritime version for coastal surveillance and border operations.
    • Taiwan
      – MQ-9B SkyGuardian version for surveillance and reconnaissance in border areas.

    MQ-9A Reaper specifications:

    Type: Reconnaissance and Combat
    Manufacturer: General Atomics Aeronautical Systems
    Country of Manufacture: United States
    First Flight: 2001
    Length: 11 m
    Wingspan: 20 m
    Height: 3.81 m
    Engine: Honeywell TPE331-10 900 hp
    Fuel Capacity: 1,800 kg – 2,721 kg in ER version
    Range: 1,850 km – 2,593 km in ER version
    Maximum Speed: 480 km/h
    Service ceiling: 15,420 m (50,000 ft)
    Endurance: 27 hours – 34 hours in ER version
    Maximum Takeoff Weight: 4,760 kg – 5,307 kg in ER version
    Empty Weight: 2,223 kg
    Payload: 1,747 kg
    Armament: 7 hardpoints with a capacity to carry 1,361 kg of ammunition

    More images of the MQ-9 drone:

    source:
    General Atomics MQ-9 Reaper
    MQ-9 Reaper
    MQ-9A Reaper
    General Atomics MQ-9 Reaper (Predator B)
    Predator The Secret Origins of the Drone Revolution
    The Remote-Control Air War Over Iraq and Afghanistan: A Pilot’s Story
    Theory, Design, and Applications of Unmanned Aerial Vehicles
    Drone Wars: Pioneers, Killing Machines, Artificial Intelligence, and the Battle for the Future
    MQ-9B Sky Guardian chosen over Reaper
    France retires Reaper Block 1 for Block 5 Extended-Range UAS

  • Iran Unveiled Ghaem-118 Missile, Which Closely Resembles the American Coyote-2!

    Iran Unveiled Ghaem-118 Missile, Which Closely Resembles the American Coyote-2!

    An intriguing point about this well-designed missile that has remained largely unnoticed by the media is that it bears a strong similarity to the Coyote Block 2 used in the US Army’s LIDS system. We have previously explored the LIDS system in a separate article, which you can read here: Military Knowledge: FS-LIDS And M-LIDS Anti-Drone Systems

    In recent years, the United States has deployed the mobile LIDS system (M-LIDS) on the battlefield to enhance the defense of occupied areas in eastern Syria against drone attacks by resistance forces. The reverse engineering of this product is quite significant!

    The Ghaem-118 interceptor missile is also very similar to the Coyote-2 interceptor in terms of technical specifications. The Ghaem-118 has a range of 25 kilometers and can detect and lock onto targets using three methods: radar, electro-optical, and infrared.

    The engine and booster section of the Ghaem-118 is quite similar to that of the Coyote-2 interceptor.

    The Ghaem-118 features a five-launcher system mounted on the Aras-3 vehicle, making its design more comparable to the American M-LIDS model, which serves as its mobile prototype.

    Additionally, an unnamed radar system observed next to the Ghaem-118 launcher bears a strong resemblance to the American AN/TPQ-50 fire control and detection radar, which has also been integrated into the LIDS system.

    Iran’s Ministry of Defense and the IRGC Ground Forces have not released the full specifications of the Ghaem-118. However, a video showcasing its field test has been made available. As more information about the Ghaem-118 is disclosed in the future, we will provide further insights in a separate article.

    Image of the American Coyote Block 2 missile
    Video of the American Coyote-2 test in the LIDS system
