Category: Graphics

  • Interesting Military Patches of Turkish Army in Libya

    Interesting Military Patches of Turkish Army in Libya

    Although these patches have not yet been confirmed by any Turkish officials, but at least the background image of one of the patches is from the al-Watiyah air base in northwest of Libya, that has been captured recently by GNA.

    These patches are as below:
    1- Libya UAVs Mission Command
    2- Turkish Air Force Libya Task Group
    3- Turkish Land Forces Libya Task Group
    4- Turkish Air Defense Systems Libya Task Group

    As it’s clear in the pictures, each of these patches contains its special messages. Beside the sense of humor that has been used in these patches, using the Ataturk symbol and mentioning to the old years of the Ottoman presence in Libyan soil, showing clearly the desires and dreams of Turkish militarism in Libya.

    Click to see the full size image
  • Military Knowledge: Sukhoi Su-27 Multirole Fighter Jet

    Military Knowledge: Sukhoi Su-27 Multirole Fighter Jet

    Specifications:
    – Multirole fighter, air superiority fighter
    – Origin: Soviet Union / Russia
    – Manufacturer Sukhoi
    – First flight: 20 May 1977
    – Introduction: 22 June 1985
    – Status: In service
    – Number built: 809 from 1982
    – Length: 21.9 meters
    – Wingspan: 14.7 meters
    – Height: 5.92 meters
    – Empty weight: 16380 kg
    – Max takeoff weight: 30450 kg
    – Powerplant: 2 × Saturn AL-31F afterburning turbofan engines

    Performance:
    – Maximum speed: 2500 km/h
    – Range: 3530 km
    – Service ceiling: 19000 m (62,000 ft)
    – Rate of climb: 300 m/s

    Armament:
    – Hardpoints: 10 external pylons with a capacity of up to 4430 kg
    – Cannon: 1 × 30 mm Gryazev-Shipunov GSh-30-1 autocannon with 150 rounds
    – Missiles:
    6 × R-27R/ER/T/ET/P/EP
    4 × R-73E AAMs
    – Rockets:
    S-8KOM/BM/OM
    S-13T/OF
    S-25OFM-PU
    – Bombs:
    RBK-250 and RBK-500 cluster bombs

    Click to see the full size image


  • Military Knowledge: Kowsar Fighter Jet + Images

    Military Knowledge: Kowsar Fighter Jet + Images

    On June 25, 2020, during an official ceremony, three Kowsar fighter jets were delivered to the Iranian Air Force. Kowsar fighter is made in two types of single cabin and two cabins, the two-cabin type of which, in addition to combat capability, is used to train pilots in the advanced stage.

    This fighter uses a native Iranian turbojet engine called “Owj”. Owj is the first jet engine made in Iran that can fly up to 50,000 feet and can be mounted on a variety of birds with a maximum lift weight of 10 tons. The fighter also uses advanced 4th generation avionics and fire control systems.

    Specifications:
    Specifications:
    – Crew: 2
    – Length: 14.45 meters (47ft 4¾in)
    – Wingspan: 26 feet 8 inches (8.13 meters) – 27 ft 11.875 in (8.53123 m) with wing-tip missiles
    – Height: 4.08 meters (13ft 4½in)
    – Wing area: 17.28 square meters (186 ft²)
    – Empty weight: 4,349 kg (9,558lb)
    – Gross weight: 7,157 kg (15,745lb)
    – Max takeoff weight: 9,312 kg (20,486lb)
    – Powerplant: 2× Owj afterburning turbojet engines (based on J85-GE-21B engine)

    Performance
    – Maximum speed: 1.6 Mach (917kn, 1,060mph, 1,700 km / h)
    – The declared range by the Ministry of Defense: 1100 km (F5-E has a range of 1405 km)
    – Combat radius (20 min reserve): 172 km with 2 Fatir missiles (Iranian Sidewinder model) plus 2400 kg of weapons, with 5 minutes combat at max power at sea level
    – Ferry range: 2900 km with three external fuel tanks
    – Ferry range (20 min reserve: 2000 km drop tanks retained
    – Ferry range (20 min reserve: 2300 km drop tanks jettisoned
    – Service ceiling: 15,800 meters (51,800 ft)
    – Rate of climb: 175 meters per second (34,400 ft / min)
    – Radar: Grifo radar (an Italian radar, Chinese model or its domestic production has been used) with a range of 93 km and the ability to engage with two simultaneous targets.

    Armament
    – Hardpoints: 7 total; 2× wing-tip AAM launch rails, 4× under-wing & 1× under-fuselage pylon stations with a capacity of 3200 kg.
    – Cannon: One 20 mm cannon in the nose
    – Missiles, Rockets and bombs: 2× 250 kg bombs or 5× 450 kg bombs or 2× 900 kg bombs and all kinds of Hydra rocket launchers and its Iranian models and Simorgh cluster bomb and up to 4 Fatir (Sidewinder) air-to-air missiles

    Click to see the full size photo

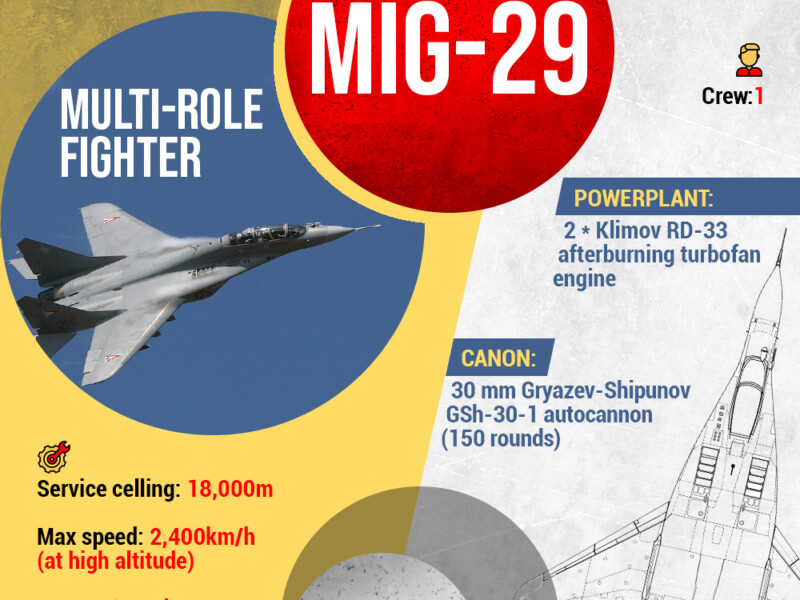

  • Military Knowledge: MiG-29 multirole fighter jet

    Military Knowledge: MiG-29 multirole fighter jet

    Variants

    MiG-29A: Initial production version; entered service in 1983. NATO reporting name is “Fulcrum-A”. MiG-29A is the Initial production model version for Warsaw Pact while the MiG-29B is the downgraded export version for non-Warsaw Pact nations. MiG-29A lacks a nuclear weapon delivery system and has initial production radar, ECM and IFF (no ECM and IFF in MiG-29B).

    MiG-29UB: Twin seat training model. Infra-red sensor mounted only, no radar. NATO reporting code is “Fulcrum-B”. Export variant had downgraded systems similar to MiG-29A.

    MiG-29S: The MiG-29S, given the NATO reporting code “Fulcrum-C”, features flight control system improvements; a total of four new computers provide better stability augmentation and controllability with an increase of 2° in angle of attack (AoA). An improved mechanical-hydraulic flight control system allows for greater control surface deflections. The MiG-29S has a dorsal hump, which led to its nickname “Fatback”, houses the L-203BE Gardenyia-1 ECM system. Improvements to software and processing capabilities enables the tracking of up to 10 targets and the simultaneous engagement of two with the R-77 missile. The MiG-29S also has a limited ground-attack capability.

    MiG-29SE: Export model of MiG-29S with slightly downgraded N-019ME radar with multiple target tracking ability and RVV-AE (R-77 missile) compatibility. Its weapons mix includes R-27T1, R-27ER1 and R-27ET1 medium-range missiles. The aircraft can be fitted with active ECM systems, weapons guidance aids, improved built-in check and training systems. The MiG-29SE can simultaneously engage two air targets.

    MiG-29SM: Similar to the MiG-29S, but with the ability to carry guided air-to-surface missiles and TV- and laser-guided bombs. NATO reporting code is “Fulcrum-C”.

    MiG-29SMT: The MiG-29SMT is an upgrade package for first-generation MiG-29s containing enhancements intended for the MiG-29M variant. Additional fuel tanks in a further enlarged spine provide a maximum flight range of 2,100 km on internal fuel. The cockpit has an enhanced HOTAS design, two 152 × 203 mm (6 × 8-inch) colour liquid crystal MFDs and two smaller monochrome LCDs. The MiG-29A was not designed for an advanced air-to-ground capability, this is substantially improved by the SMT upgrade; features include air-to-ground radar detection and integrated air-to-ground guided weapons. The power plant are upgraded RD-33 ser.3 engines with afterburning thrust rated at 8,300 kgf (81.4 kN) each. The weapons load was increased to 4,500 kg on six underwing and one ventral hardpoints, with similar weapon choices as for the MiG-29M. The upgraded aircraft can also accommodate non-Russian origin avionics and weapons.

    Click to see the full size


  • Military Knowledge: “Bayraktar TB2” Reconnaissance Combat Drone

    Military Knowledge: “Bayraktar TB2” Reconnaissance Combat Drone

    The Bayraktar UAV initially developed by the Kale-Baykar, a joint venture between the Kale Group and Baykar Technologies and now the Bayraktar TB2 is built by Baykar Defense company specifically for Turkish Air Force using.

    The Bayraktar TB2 drone can carry 4 MAM-L and MAM-C missiles manufactured by Roketsan defense company.
    Rokestan is a major Turkish weapons manufacturer and defense contractor based in Turkey.
    This drone is guided by the ground control station and now, is the second powerful drone in the Turkish military, after the TAI Anka drone.

    The Bayraktar TB2 drone entered into service in 2014, after its first flight test and has been actively used in recent years, in the northern regions of Syria and Turkish military operations against Kurdish groups in north of Syria.
    But Turkey direct military intervention in the Libyan war and active presence of this drone in supporting of the GNA against the Gen. Haftar forces, have made this drone famous.

    Bayraktar TB2 specifications:
    – Combat range: 6000 km
    – Endurance: 24 hour
    – Ceiling: 8,200 m (27,000 ft)
    – Speed: 220 km
    – Length: 6.5 m, wingspan: 12 m
    – Armament: 4 MAM-L and MAM-C missiles
    – Max Take Off Weight: 650 kg
    – Mission: Surveillance and Reconnaissance
    – Manufacturer: Baykar Defense, Presidency of Defense Industries

    Click to see the full size image


    Bayraktar TB2 flight test in Ukraine
  • Military Knowledge: Ghadir Cruise Missile + Images

    Military Knowledge: Ghadir Cruise Missile + Images

    The Ghadir cruise missile with the speed of 0.9 mach and range of 300/km can destroy enemy navy targets with high explosion power and precision and similar to other missiles in its grade like Nour and Qader can be launched from shore and while floating, which gives it a great operational mobility and flexibility makes it a great option for Iran’s navy missile defense system against the existing threats across the Persian Gulf and Sea of Oman.

    The Ghadir missile compared to other of its recent generation missiles, have been upgraded greatly.
    New engine and range extension
    New radar antenna and range extension and increase in scan angle of radar Increase in payload
    The capability in dealing with electronic warfare and discovering the position of enemy’s radar disruption
    New guiding system control

  • Military Knowledge: Jamaran Frigate

    Military Knowledge: Jamaran Frigate

    More ships in its class are under construction to be added to the Iranian fleets in the Caspian Sea and the Persian Gulf. The ship is designed for a crew of 140. Jamaran combines anti-submarine assets with other systems of weapons capable of dealing with surface and air threats as well.

    It has 94.5 m length and maximum speed of 30 knots (56 km/h) carries 140 crew and helicopter. Jamaran was built using indigenous and foreign parts and collaboration of 120 universities and institutes. The engine is made by France but since the gearbox, shaft and propeller were not given against the contract, these parts including 12 m power shaft were designed and built by Iranian specialists.

    Jamaran Specifications:
    Length 94.5 m, Width 11 m
    Crew: 140
    Speed: 30 knots, 56 km/h
    Operational range: 3,000 nautical miles (more than 5,500 km)
    Aviation facilities: Helipad for a Bell 212 or SH-3 Sea King helicopter.

    Armament:
    2 × triple 324 mm torpedoes (Kuseh type)
    1 × 76 mm Fajr-27 auto-cannon
    2 × 20 mm Fath cannons
    1 × 40 mm Fateh anti aircraft cannon
    4 × surface-to-surface Noor, Qader, Qadir missiles
    4× surface-to-air Mehrab missiles

    Click to see the full size map
  • Arrow 3 Exoatmospheric Hypersonic Anti-Ballistic Missile

    Arrow 3 Exoatmospheric Hypersonic Anti-Ballistic Missile

    The project is run by Israel Aerospace Industries and Boeing under control of the Israeli Ministry of Defense and the US Missile Defense Agency.
    The missile is designed for exoatmospheric interception of ballistic missiles and reportedly could serve as an anti-satellite weapon.


    SF link

  • Military Knowledge: “Ababil 3” Surveillance and Reconnaissance Drone

    Military Knowledge: “Ababil 3” Surveillance and Reconnaissance Drone

    Ababil 3 specifications:
    – Range: 250 km
    – Endurance: 8 hrs
    – Ceiling: 5000 m (16000 ft)
    – Speed: 200 km/h
    – Length: ~4.5 m, wingspan: ~6.5 m
    – Mission: Intelligence, surveillance and reconnaissance
    – Manufacturer: Iran Aircraft Manufacturing Industrial Company (HESA) – Aerospace Force of the IRGC

    Click to see the full size image


    A famous operation performed by this drone was in April 2019, in which it flew over aircraft carrier USS Dwight D. Eisenhower in Persian Gulf and recording video which was published and had impact in the media around the world.

    Ababil 3 footages from the USS Dwight D. Eisenhower in Persian Gulf
  • Military Knowledge: “Shahed 129” Reconnaissance Combat Drone

    Military Knowledge: “Shahed 129” Reconnaissance Combat Drone

    According to Major General Mohammad Ali Jafari, former commander-in-chief of the Iranian Revolutionary Guard Corps (IRGC), Shahed 129 performs reconnaissance and combat operations with a 24hr endurance and combat range of 1,700 km.

    The control and guidance of this drone is done by fixed or mobile ground control station. Using a mobile control station that can be installed on a trailer or truck increases the useful and effective range of Shahed 129. Also, a version of this drone is equipped with a satellite guidance system.

    Shahed 129 UCAV can use a wide range of bombs and missiles that are optimized for use in UAVs, however, Sadid bombs and missiles are mainly used for the Shahed 129. Sadid is the name of a family of Iranian guided bombs and missiles, designed and produced by the Iranian Revolutionary Guard Corps Aerospace Force. So far, various types of Sadid bombs and missiles have been developed by the IRGC.

    Shahed-129 drone can carry eight bombs or four missiles. By installing Sadid guided bombs and missiles on this drone, the Shahed 129 drone can hit the desired targets in its operational area with the highest possible accuracy.

    This UCAV is powered by a Rotax914 turboprop engine and has a flight ceiling of up to 7300 meters.

    The Shahed-129 drone has been widely used by Iran and its allies in the battles of Syria and Iraq against Al-Qaeda and ISIS terrorists, and has a very brilliant but little-known operational history. Shahed 129 drones have so far carried out more than 1000 successful operations in Iraq and Syria.

    Shahed 129 in action

    In February 2016, a new version of Shahed 129 was showcased, which was different from the previous Shahed129 drones. In this variant, there is an arc shape in the nose of the UAV, which is usually used in other drones as a place for the satellite antenna. Therefore, based on the information provided by General Hajizadeh, the commander of IRGC Aerospace Force, it can be said that this drone is equipped with a satellite guidance system, and this potentially increases the range and operational capabilities of the Shahed-129 drone.
    Of course, at the time of the unveiling of this new type, Iran did not have a special military satellite to use this capability and exclusively guide Shahed 129 by a satellite. But it seems that this capability has been designed and implemented with foresight and forecasting the developments of the aerospace industry of the Iranian Armed Forces for the near future. Also, this capability allows Iran’s allies to benefit from its satellite guidance capabilities if this special variant is purchased and used.

    It is also worth mentioning that in December 2019, the first marine variant of this drone, known as the Simorgh drone, was handed over to the Islamic Republic of Iran’s naval forces. This drone has been specially built and optimized for use in the Iranian Navy units.

    Shahed 129 drone specifications:
    – Combat range: 1,700 km
    – Endurance: 24 hour
    – Ceiling: 7,300 m (24,000 ft)
    – Speed: 150 to 200 km
    – Length: 8 m, Wingspan: 16 m
    – Armament: 8 bombs or 4 missiles
    – Weapon payload: Up to 400 kg
    – Mission: Combat / Intelligence / Surveillance / Reconnaissance (CISR)
    – Manufacturer: Iran Aviation Industries Organization (IAIO), Iran Aircraft Manufacturing Industrial Company (HESA)

    Click to view full size

    Shahed-129 posters in English, Arabic (شاهد 129), Russian (Шахед 129), Azeri (Şahid 129), Kurdish (شاهێد 129), Hebrew (שאהד 129) and Chinese (沙赫德 129) for publication on social media:

  • Military Knowledge: Fotros Reconnaissance and Combat Drone

    Military Knowledge: Fotros Reconnaissance and Combat Drone

    Fotros drone is an Iranian reconnaissance, surveillance and combat unmanned aerial vehicle built by Iran Aviation Industries Organization (under Iranian Defense Ministry), that was unveiled in memorial of liberation the Susangerd with the presence of Gen. Dehghan the former defense minister and Brigadier Gen. Hatami former defense minister deputy, in the defense ministry factories in Isfahan on November 2013.

    Fotros specifications:
    Range: 2,000 km
    Flight duration: 30 hours
    Flight height: 7,600 m (25,000 feet)
    Speed: 150-250 km/h
    Lenght: 9 m
    Wingspan: 16 m
    Weapons: Two hardpoints
    Mission: Reconnaissance, surveillance and combat
    Origin: Iran

    On 26 April 2019, the IRGC Ground Force’s Drone Division Colonel Akbar Karimloo said his forces will be receiving the Fotros drone from the Defense Ministry in the near future, and said that we are seriously checking the various items and parameters of Fotros drone, and the IRGC Ground Force’s Drone Division has decided to utilize Fotros in operational zones.

    So, the IRGC Ground Forces are the first formal customer of the largest Iranian drone.

    Click to view the full size
