The Fattah-2 missile utilizes the configuration of hypersonic cruise missiles. The acronym HCM, which stands for Hypersonic Cruise Missile, is written on its nose cone. The shape and combination of the nose cone is similar to the X-51 hypersonic cruise missile. However, the X-51 missile uses a ramjet engine that requires air intake, whereas in the Fattah-2 missile, air intake and ramjet engines are removed, and instead, a liquid fuel rocket engine is used. This will not affect the missile’s performance.
Phrase “HCM” meaning hypersonic cruise missile on Fattah-2 body
Design: The Fattah-2 missile consists of two parts. The first part is the Fattah solid fuel booster, which has not changed from the initial version. The second part is the gliding warhead, which separates from the booster and has a liquid fuel rocket engine.
The overall shape of the Fattah-2 gliding warhead is very similar to the Boeing X-51 missile, but with the difference that its air intake has been eliminated and a rocket engine is used instead of a ramjet engine.
Similarity of Fattah-2 and X-51 warheads
The explosive material is located at the beginning of the warhead, followed by an inertial guidance and GPS system along with a computer that is responsible for guiding the warhead to the final stage of impact. After the guidance system, there is a detonator container (yellow piece), followed by a liquid fuel tank and an oxidizer tank, and finally a rocket engine that appears to have the ability to change the missile’s trajectory.
Various components of Fattah-2 warhead
At the end of the warhead, there are four fins, two of which form a line with the bottom of the warhead and are fixed, responsible for producing lift force. The other two fins are designed to change direction and have the ability to rotate around an axis connected to the body.
Four fins, two of which are fixed and two other fins with the ability to change the direction
The speed of this missile is stated as Mach 10 in some sources, but it is unclear for how long this speed can be sustained. However, it can be assumed that the speed exceeds Mach 5 at the moment of impact. The range of the missile has been reported as 1500 to 1800 kilometers by some news agencies, but it is unlikely that the range will be significantly different from that of the Fattah-1 missile, and a range of less than 1400 kilometers does not seem reasonable for Iran’s operational needs.
The operation of the Fattah-2 missile: The solid fuel booster of the Fattah-2 missile carries it to a certain altitude from space, and then the warhead separates from it and moves towards the atmosphere. In this state, the missile will travel at a fast falling rate until it reaches the atmosphere, and then, like an HGV (Hypersonic Glide Vehicle), it will glide to the ground in the atmosphere at an altitude of less than 100 kilometers. Considering the high speed announced for the Fattah booster in Fattah-1, it must be more than Mach 15 at the time of entering the atmosphere. Therefore, due to the high lift force of the Fattah-2 warhead, it must spend a considerable amount of time gliding in the atmosphere and continuously reduce its altitude.
In a part of the middle stage and at the end of the warhead, it drastically reduces its altitude and its speed also decreases. In this stage, the rocket engine embedded in the warhead turns on and stabilizes the warhead’s speed at Mach 5 or higher. The Fattah-2 warhead spends a lot of time at low altitudes and will cruise through the final stage of its path like cruise missiles thanks to its engine. A significant point is the amount of drag force and tolerance for high-speed entry into the atmosphere because aerodynamically, the warhead is not designed for such speeds.
Conventional designs of hypersonic cruise missiles use a booster for initial speed and a ramjet engine for further movement along their path, and they are often launched from aircraft. These engines have a risk of reducing their speed to less than Mach 5 at their maximum range due to fuel shortages. However, Fattah-2 uses a solid fuel ballistic missile booster for movement in a part of its path and reaching an initial speed of more than Mach 15, which provides the missile with a considerable speed for a long time. Then, at the end of its path or near the point of impact, it uses an engine to compensate for the speed reduction and stabilize its speed at Mach 5. This is an interesting and very creative idea that has been implemented by Iranian experts. This initiative eliminates the limitations of HGVs for the Aerospace Force of the Islamic Revolution Guards Corps (IRGC).
Unlike conventional HGV versions, the Fattah-2 warhead is more suitable for flying at low altitudes. Most HGVs travel much of their path at an altitude of less than 100 kilometers and more than 30 kilometers, where air density is lower. However, the Fattah missile can fly in an altitude of less than 12 kilometers due to its aerodynamic shape, but it seems to try to maintain itself at an altitude between 12 and 30 kilometers to experience less speed reduction. Overall, the Fattah-2 missile is more of a hypersonic glide vehicle than a hypersonic cruise missile. However, its performance includes both types of hypersonic missiles.
It can be said that the operation of the Fattah-2 missile is a completely unconventional definition compared to other conventional hypersonic missiles, and the Fattah-2 missile has created a new classification and standard in this field: Hypersonic Cruise Glide Vehicle (HCGV).
It should be mentioned that the feature of not using a ramjet engine does not exclude this warhead from the hypersonic category. Also, using a rocket to start flight and fly into space cannot prevent the cruise flight of intermediate and final stages. Iran’s technology in making ramjet engines for use in long-range hypersonic weapons has not yet reached its final evolution. Therefore, having all the components available and the ability to mass-produce Fattah-2 is a suitable and creative solution to overcome the current technological gap. Clearly, this technological bottleneck will also be resolved in the near future.
Specifications of Fattah-2 hypersonic missile: Type: Hypersonic Glide Vehicle (HGV) Country of Origin: Iran Producer: IRGC Aerospace Force Unveiled: 2023 Length: ~ 12 meters Diameter: 80 cm first part, 50 cm second part Fuel: First stage: solid Second stage: liquid Range: more than 1400 km Speed: ~ Mach 5 (in the last phase), ~ Mach 15 (in the first phase) Weight: 3500 to 4100 kg Warhead: ~ 500 kg Explosives weight: ~ 200 kg Guidance: combination of INS and GPS
Fattah 2 hypersonic missile – click to view in full size
More images of Fattah-2 missile:
Click to view in full size
Infographics of Fattah-2 hypersonic glide vehicle in Russian, Hebrew, Farsi and Azeri:
The Merkava tank is a series of main battle tanks (MBT) made by Israel, which forms the backbone of the armored corps of this regime. The word Merkava means “chariot” and is derived from the “holy chariot” in the Torah. This tank is developed in the “Merkava and Armored Combat Vehicles Division” of the Israeli Ministry of Defense, and most of its parts are manufactured in Israel.
The development of Merkava set began in 1970, and it has been produced and put into service in four original versions and several updates. Merkava Mark 4 Barak is the latest version of this tank that entered service from 2023.
Specifications of Merkava Mark 4: Type: Main Battle Tank Origin: Israel Manufacturer: MANTAK Unveiled: 1999 In service: since 2004 Crew: 4 (tank commander, driver, gunner, loader) Length: 9.04 meters (including gun barrel), and 7.60 meters (excluding gun barrel) Width: 3.72 meters Height: 2.66 meters Engine: GD883 diesel engine with 1500 horsepower Fuel capacity: 1400 liters Operational range: 500 km Speed: 64 km/h on road, and 55 km/h off road Mass: 65 tons Main weapon: MG253 120 mm smoothbore gun Secondary weapon: 12.7 mm machine gun and 7.62 mm machine gun
The Kaman-19 drone, named after the Farsi word for “bow,” is a specialized electronic warfare drone used for information gathering, surveillance, etc.
It was unveiled during the joint drone exercise of the Islamic Republic of Iran Army in October 2023.
The Kaman-19 drone, which was showcased for the first time during the joint army exercise, is a simple and very affordable drone while being highly functional.
Although the drone bears resemblance to the Kaman-12 drone, its overall dimensions are smaller. A T-tail design is used in the rear section. The highly swept wings, along with the use of winglets, reduce the vortex effect at the wingtip, resulting in reduced drag and consequently, less fuel consumption. The design of the drone was chosen to increase the flight endurance of the Kaman-19.
Using winglet to reduce the fuel consumption of Kaman 19 drone
The engine used in this aircraft is most likely the DLE 170 or a similar type. This small gasoline engine produces about 17.5 horsepower at 7,500 RPM (revolutions per minute). The Kaman-19 drone has a flight endurance of 24 hours, and considering the small size and low fuel consumption of the engine used in it, it seems acceptable.
According to the pictures, the DEL170 engine is most likely installed on the Kaman 19 UAV
The Kaman-19 drone does not have a camera and relies on inertial guidance and GPS for flight control. However, it can be used as a complementary drone to the Kaman-12 to carry bombs and perform reconnaissance with its own optics, as well as perform electronic warfare tasks assigned to the Kaman-19.
The electronic warfare tasks for the Kaman-19 include radar wave disruption, surveillance, radio communication disruption and so on.
Specifications of Kaman-19 electronic warfare drone: Type: electronic warfare drone Origin: Iran Producer: Islamic Republic of Iran Air Force Unveiled: 2023 Length: 2 to 2.5 meters Wingspan: 4.5 to 5.5 meters Height: 1.5 to 2 meters Engine: 1x two-cylinder DLE 170 engine with a power of 17.5 horsepower Endurance: 24 hours
On October 14, the Izz ad-Din Al-Qassam Brigades, the military wing of the Palestinian resistance movement, Hamas, unveiled the two-stage anti-tank rocket Al-Yasin 105.
The Al-Yasin 105 is a type of two-stage anti-tank rocket for the use on RPG7 weapons and is made based on the pattern of the two-stage RPG-7VR portable, reusable, unguided, shoulder-launched, anti-tank, rocket-propelled grenade launcher.
In a video released by the Izz ad-Din Al-Qassam Brigades, the construction and specifications of this rocket were displayed. Based on the released video, it seems that the knowledge of making this two-stage rocket has been transferred to the Gaza Strip and Palestinian fighters have become self-sufficient in this area.
The video published by Al-Qassam Brigades about the unveiling of Al-Yasin105
The two-stage Al-Yasin 105 rocket is designed to overcome explosive reactive armor (ERA) and composite armor installed on the Merkava. In the first stage, the rocket penetrates the reactive armor and neutralizes its effect, and in the second stage, the rocket’s second part hits the main body of the tank.
The Al-Yasin 105 rocket is a two-stage HEAT (High Explosive Anti-Tank) warhead designed for use on RPG7 weapons. It is made up of a 64mm precursor warhead for penetrating reactive armor and composite armor, followed by a 105mm main warhead for penetrating the tank’s main armor. The secondary warhead has a penetration capability of 600mm of rolled homogeneous steel, or 750mm without reactive armor. If there is no reactive armor, this warhead can penetrate 750 mm rolled steel.
Different components of Al-Yasin 105 rocket
The effective range of the rocket is up to 500 meters, with a lethal range of 150 meters, and a speed of approximately 300 meters per second.
The Al-Yasin 105 rocket was used by Hamas in the early battles to reclaim Palestinian territories and has successfully penetrated the composite armor of the Israeli Merkava Mark 4 tank. This demonstrated that the Trophy active protection system installed on the tank is ineffective against the Al-Yasin 105 rocket, which can successfully penetrate the tank’s armor. According to the images released so far, after the impact of the Al-Yasin 105 rocket on a Merkava tank, one crew member was killed and the other crew members were injured. This incident showed that the Trophy system is unable to deal with this rocket, and the Al-Yasin 105 rocket can successfully penetrate the armor of the Merkava tank. In fact, the Al-Yasin 105 rocket has once again shattered the myth of the invincibility of the Merkava tanks!
Merkava tank after a hit by Al-Yasin 105 rocket
The above image clearly shows that the composite armor of the tank has been penetrated and the second stage charge has reached the main armor of the tank. Therefore, this rocket has sufficient power to deal with the armor of the Israeli regime. According to the evidence, a direct hit will disable the tank. However, hitting from the sides will have the potential to destroy the tank turret, which can either completely take the tank out of service or significantly increase its repair time.
A picture of the destruction of a Namer heavy armored personnel carrier based on the Merkava Mark 4 chassis by Al-Yasin 105 rockets
Al-Yasin 105 Thermobaric and Anti-Bunker version:
The Al-Yasin 105 rocket also has another version called TBG. The TBG stands for Thermobaric Anti-Bunker. In this type of rocket, thermobaric is used instead of the precursor warhead in the second stage.
The important point about this version of the rocket is that due to the use of a precursor warhead in the first stage, this rocket can penetrate concrete and earth bunkers, and then the thermobaric warhead in the second stage can have a very significant impact on inflicting casualties on the enemy.
Al-Yasin 105 thermobaric and anti trench version
Al-Yasin 105 anti-tank rocket specifications: Type: Two-stage anti-tank munition Origin: Palestine Unveiled: 2023 Effective range: 150 meters Warhead: Tandem charge HEAT Weight: 4.5 kg Explosive weight: 1.4 kg Caliber: The first part: 64 mm The second part: 105 mm Penetration rate: Up to 600 mm reactive armor Up to 750 mm without reactive armor Speed: ~ 300 m/s
Al-Yasin 105 anti-tank rocket – click to view full size
Infographics of Al-Yasin 105 anti-tank rocket in Russian, Hebrew, Farsi and Azeri:
According to the released video regarding the usage and deployment of the Mutabar 1 system, this air defense system consists of three main parts. The first part is the missile launch base, the second part is the missile, and the third part is the guidance system and target acquisition.
Missile Launch Facility:
The missile launch facility of the Mutabar-1 air defense system is designed as a single launcher to reduce its weight and allow for the use of cheaper and more accessible components. This launch base has a 360-degree rotation capability around its axis and can adjust the angle between 20 to 70 degrees. This movement enables adequate coverage for performing air defense operations in the vicinity of the air defense system.
The missile launch base of Mutabar-1 (Motbir) air defense system
Missile of Mutabar-1 Air Defense System:
The missile, as the second component of the Mutabar-1 air defense system, has a very simple design. In fact, this missile is a rocket with similar components to ground-to-ground rockets and its explosive fuse is designed for direct impact. Control fins that fold together are used for guiding this missile in its final section, which are secured with plastic ties.
The white plastic ties at the end of the missile are clearly visible
Stabilizing fins are not used in this missile because tube-shaped launchers similar to mini Katyusha rockets are intended to be used. The reason for using ties to hold the control fins is that the necessary technology to design these fins to open them after launch does not exist. Therefore, it is not possible to use folding control fins in the front section either. If folding control fins were present in the front section, ties would have to be used, which would complicate the loading of the missile.
The overall shape of the missile on its launcher is clearly visible and appears to be very similar to the tail end of laser-guided bombs such as the Basir and Krasnopol.
Russian Krasnopol munitionPatch designed for Mutabar-1 air defense systemClick to view full size image
The fuel of the missile also appears to be the same solid fuel used in ground-to-ground rockets. In that case, the maximum altitude of fire should be considered as 7.5 kilometers and the engagement range would likely be limited to around 6 to 8 kilometers.
Target tracking and missile guidance:
The use of thermal and infrared cameras for guidance is completely ruled out as the missile’s nose cone does not carry such cameras. In the video, it is evident that guidance is performed from a control center, but the components of this center are not clear. Considering the presence of an impact fuse at the tip of the missile and its shape, independent guidance has not been utilized. Therefore, the guidance to the target will be entirely carried out by another system, referred to as a nest seeker method.
Based on the absence of thermal and infrared cameras, it can be speculated that both active and passive radar search methods are used.
The missile fuel also appears to be the same solid fuel used in ground-to-ground rockets. In this case, the maximum engagement altitude should be considered as 7.5 kilometers, and the engagement range will likely be limited to around 6 to 8 kilometers.
Considering the Israeli regime’s military might in suppressing air defense, finding and conquering radar in the Gaza Strip will be easy. For this reason, the most likely method of tracking would be using passive radar, as finding this type of radar is very difficult. Also, placing a wave collection dish at one point and its powerful computer system elsewhere practically makes its destruction impossible. Based on the mentioned reasons above, it can be claimed that the air defense missile guidance in the Muteber-1 air defense system must be in the form of passive radar seeker guidance.
One noticeable point in the released video is the firing of two air defense missiles with very little distance and almost simultaneously, which could have two possibilities. The first possibility is that the system has the ability to guide two missiles for one target. The second possibility is that the system has the ability to engage two targets simultaneously.
Although this system may not seem very advanced at first glance, but creating a short-range and low-altitude air defense system with the mentioned specifications is a great achievement for Palestinian resistance. It gives Palestinians the ability to shoot down various Israeli aircraft at low altitudes.
The introduction video of Mutabar-1 system published by Palestinian war media
Specifications of Mutabar-1 Air Defense System: Type: low-altitude short-range air defense system Producer: Al-Qassam Brigades Origin: Palestine Unveiled: October 2023 Crew: 4 people (2 gunners and a commander and a radar officer) Engagement range: 6 – 8 km Radar: probably passive radar Radar detection range: maximum 10 – 12 km Altitude of fire: 6 – 8 km Number of simultaneous engaged targest: 1 or 2 Battrey: Each unit is fixed and carries one missile Missile: Length: ~ 2.5 meters Diameter: ~ 107 mm Weight: ~ 50 kg Range: ~ 6 – 8 km Altitude of fire: ~ 7.5 km
Specifications of PzH 2000 self-propelled howitzer: Type: self-propelled gun Manufacturer: KMW and Rheinmetall Origin: Germany Designed: 1987–1995 In service 1998–present Crew: 5 (commander, driver, gunner, and two loaders) Length: 11.7 meters Width: 3.6 meters Height: 3.1 meters Engine: MTU MT881 Ka-500 Operational range: 420 km Speed: up to 67 km/h and 45 km/h off-road Mass: 55.8 tons Main armament: Rheinmetall 155 mm L52 artillery Gun Secondary armament: 7.62 mm MG3 machine gun Ammunition capacity: 60 shells and up to 1200 bullets
History: The Soviets were looking for a new trainer fighter to replace the Aero L-29 Delfín and Aero L-39 Albatros trainer jets. The Soviet Air Force, after reviewing the five submitted designs of Sukhoi S-54, Myasishchev M-200, Mikoyan MiG-AT, and Yakovlev Yak-UTS, in 1991, selected two MiG-AT and Yak-UTS designs for prototype production and competition.
MiG-AT training fighterPrototype Yak 130 with number 01
The development of Yak-UTS began in 1991, but with the collapse of the Soviet Union on December 25, 1991, there were not enough funds to continue the work, so in 1993, the Yakovlev company agreed with the Italian company Aermacchi to jointly develop this aircraft.
Aermacchi was responsible for the financial and technical support of the project and the name of the project was changed from Yak-UTS to Yak/AEM-130. The first prototype of this training fighter was built by the Sokol company (manufacturer of MiG fighters) named Yak-130D and unveiled in June 1995. Yakovlev company managed to make the first flight of this fighter from Zhukovsky airport on April 25, 1996, piloted by Andrey Sinitsyn.
In 1996, it was reported that the development of the fighter and the construction of four prototypes cost 500 million dollars.
Iran also unofficially participated in this plan in 1998. Iran proposed a fighter named Shafaq. But due to the continuous efforts of America to prevent Iran from being equipped with fighter jets, Russia soon removed Iran from the plan under the US pressure. But the fruit of Iran’s short-term cooperation with Russia in this field led to the unveiling of the Shafaq project in 2007. The overall design of the Shafaq fighter jet was similar to the Yak 130, but it used a V-shaped tail with modified wings.
Shafaq fighter which was presented as a mock-up
In 2000, following political pressure from the United States, the Aermacchi partnership also ended with Russia and Alenia Aermacchi continued the M-346 Master design with a Ukrainian engine. This new design made its first flight in 2004. This fighter jet was used by the Air Force of Italy, Israel, Singapore, Greece, Turkmenistan and Poland.
The Alenia Aermacchi’s M-346 Master fighter jet; very similar to Yak-130
The Yak-130 production line at the Sokol Aircraft Plant in Nizhny Novgorod, known as Naz Sokol, has been active since 2003, and its first production was numbered in April 2004. The trials of entering the service of this fighter began in 2005 and ended before the delivery of the first flight group in 2009. This fighter entered the service of the Air Force of Russian Federation in July 2009 at the Military Pilot Training Academy in Krasnodar and was exhibited at the MAKS 2009 air show.
Design: The Yak-130 trainer uses a classic swept-wing design. This fighter is made of light alloy with carbon fiber surfaces and uses Kevlar protection for the engines, cockpit and fighter compartment. The use of Fowler flaps has helped a lot in reducing drag and increasing the maneuverability of the fighter. This fighter is also optimized for landing and takeoff from short or unprepared runways. Yak-130 uses a wireless flight control system, flight safety system and automatic flight control system. The Yak-130 fighter uses an air brake located on the fuselage and near the vertical tail. This device helps this training fighter to land on short runways.
Yak-130 air brake
In the Yak-130 fighter, it is possible to close the main air intake and open the upper air intake to prevent Foreign Object Damage (FOD). This hatch ensures the safety of the fighter taking off from the runways.
A view of the closed air intake. The upper air intake is open.
Yak-130 uses 9 hardpoints to carry weapons up to 3000 kg. Two weapon hardpoints are placed on the tips of the wings and six hardpoints are placed under the two wings and one hardpoint is placed under the fuselage. The fuselage hardpoint cannot host large equipment because it is placed between the landing gear hatches.
Yak-130 hardpoints
In export versions of Yak-130, the flight control system ‘Avionica’ is used. This flight control system belonging to the American company Avionica and is used in fighters such as F15, F16, F18, Mirage 2000, Typhoon, Rafale and F35, and even in the export versions of Sukhoi 27, Sukhoi 30 and MiG 29.
Yak-130 is equipped with zero-zero K-36LT3.5 seats manufactured by NPO Zvezda. Pilots have 360 degree vision. The front cabin has a visibility of -16 degrees and the rear cabin has a visibility of -6 degrees.
zero zero K-36LT3.5Glass cabin with 360 degree vision
The all-digital Yak-130 avionics cockpit passes the Mil Standard 1553 defined by the United States of America and can be adapted to customer needs. This all-glass cabin allows both pilots to use a night vision camera and is equipped with three color liquid crystal displays measuring 24.15 cm by 20.32 cm. A Head Up Display (HUD) is used in the front cabin of the Yak 130 so that the pilot can see the target and flight information by looking at it.
Yak-130 front cabinYak-130 rear cabin
The pilot’s helmet in the front cabin is equipped with a special display for determining the target, and the cabin is also equipped with an audio warning system and an internal and external communication system, produced by Popov Plant.
This training fighter jet provides the possibility of choosing the type of training flight and simulating the tactics of combat aircraft for easier training of pilots. Yak-130 supports the navigation system including laser gyroscope and global positioning system of Russian GLONASS and American GPS.
The internal fuel tanks of the Yak-130 fighter include one tank in the body and two tanks under the wing. This fighter can carry fuel tanks under the wings on hardpoints close to the body. External fuel tanks have a capacity of 450 liters each, which brings the total portable fuel to 2650 liters. The possibility of aerial refueling is also available for this fighter, but it is installed on it as a custom.
Armament: The advanced architecture of the Yak-130 avionics complex allows a wide range of Western weapons to be compatible with it. Western air-to-air weapons such as the AIM-9L Sidewinder and Magic 2 or weapons such as the AGM-65 Maverick are examples of these weapons.
Yak-130 uses eastern weapons such as Vikhr laser guided missile, R73 infrared air-to-air missile, Kh-25 ML air-to-surface missile, KAB series free-falling bombs weighing up to 500 kg, S8 rockets and cluster bombs.
This fighter does not have a cannon by default and uses a GSh-23 pod instead, which is usually installed in the fuselage hardpoint.
Image of Yak 130 ammunition – click to view in full size
Yak-130 radar: The Yak 130 combat training fighter uses a radar with a power of 8 to 12.5 GHz called BARS-130 produced by NIIP Zhukovsky. This radar is capable of detecting air targets with a cross section of 5 square meters at a distance of 85 km and locking at a distance of 65 km. In addition, it has the ability to identify friend from enemy (IFF), air combat, detect sea and land targets, and also synthetic-aperture radar (SAR).
BARS 130 radar catalogBARS 130 radar catalogAn image of the BARS 130 radarAn image of the BARS 130 radarClick to view full size
Engine: Yak-130 in the prototype used the DV-2 engine produced by the Slovakian Povazske Strojarne company belonging to the Slovak Republic with a power of 2200 kg (21.58KN). In later examples, the Yak 130 fighter used the Al-222-25 engine with a power of 2,520 kg of force (24.7KN) made by the Ukrainian company Motor Sich, Zaporozh’e Progress Design Bureau and the Russian company Moscow Salyut Motor Building Production Enterprise.
The Al-222-25 engine was also used by the Italian fighter M-346 Master.
Russia produces Al-222-25 engine named RD-35M with 28.45KN power. Today, DV-2S engine with 24.5KN power is also produced, which is used for export purposes in the production of Yak 130.
DV-2S engineAl-222-25 engineClick to view full size
Exports: Algeria, as the first customer of this fighter, placed an order for 16 of them in 2006, and succeeded in receiving these fighters in 2011.
In 2010, Libya ordered 6 aircraft and Vietnam ordered 8 Yak 130 training fighters. In December 2012, Belarus managed to purchase four Yak-130 fighter jets, which it received in 2015. The Belarusian Air Force received four more in 2016 and four more in May 2019.
The Myanmar Air Force received three Yak-130 training fighters in late 2016. The country took delivery of another 6 planes in December 2019. Algeria is the user of 16 Yak 130 training fighters.
Syria also bought 36 Yak 130, which should have been delivered to this country by the end of 2016. But this was postponed due to the war in this country.
In 2019, Vietnam signed a $350 million contract to purchase 12 Yak 130s, which were delivered to Vietnam in November 2021.
On December 2, 2023, Iran received two Yak 130 fighters. The number ordered by Iran is not known. According to reports related to the purchase of Sukhoi 35 fighter by Iran, the Yak 130 can be considered as a training fighter for Sukhoi 35.
Images of Yak-130s delivered to Iran – click to view in full size
Specifications of Yak-130 combat training fighter: Role: Fighter trainer an light combat aircraft Producer: Yakovlev Origin: Russia First flight: 1996 Entered service: 2010 Crew: 2 pilots Length: 11.49 meters Wingspan: 9.84 meters Height: 4.76 meters Wing cross section: 23.52 square meters Empty weight: 4600 kg Gross weight: 7250 kg Maximum take-off weight: 10290 kg Engine: 2× Ivchenko-Progress AI-222-25 turbofan engines, 24.52 kN (5,510 lbf) thrust each Maximum speed: 1060 km/h Cruise speed: 887 km/h Maximum range: 2100 km Operational range: 555 km Flight ceiling: 12500 km g limits: +8.0 −3.0 Rate of climb: 65 m/s Trust to weight ratio: 0.7 Armament: Hardpoints: 9 (1 on each wingtip, 3 under each wing, and 1 under the fuselage) with a capacity of up to 3,000 kg (6,614 lb), with provisions to carry combinations of: Rockets: 80mm S-8 rocket, S-25 rocket Missiles: R-73 infrared-homing air-to-air missiles Bombs: FAB-M62, ZB-500, KAB-500Kr
Yak-130 combat training fighter – click to view full size
More pictures of Yak-130 combat training fighter:
Click to view full size
Infographics of “Yak-130 combat training fighter” Persian, Russian, Azeri:
The Majid Air Defense System is named in memory of the Iranian martyr Majid Ghorban-Khani. This air defense system has been produced by the Defense Industries Organization (DIO) of the Ministry of Defense and Armed Forces Logistics of the Islamic Republic of Iran in a bid to upgrade short-range and low-altitude defense capabilities and it has high mobility and passive guidance for better survival in the battlefields of the today’s world.
History: After the end of the 8-year war imposed by the Iraqi Baath regime on Iran as well as the studies conducted in the Islamic Republic, there was a strong feeling of need for more coherent defense potential against flying targets that were flying at low altitudes. The presence of close air support fighter jets that flew at low altitudes and bombed the front lines during the Sacred Defense (Iraq-Iran war) showed that the quality of systems like Rapier surface-to-air missile system and their small number is not enough to confront enemy fighter jets and create a safe sky. For this reason, in the 1990s, the Islamic country started buying and developing air systems like Ya Zahra air defense system.
After the first [Persian] Gulf War and the United States’ extensive use of various types of cruise missiles, the Islamic Republic of Iran decided to buy systems such as Tor Soviet-era air defense missile system from Russia to confront the threat of cruise missiles. The process of development and study in the field of dealing with cruise targets continued until the 2010s and nowadays a wide range of missile systems and anti-aircraft canons have been produced and utilized to deal with various targets such as drones, cruise missiles, helicopters, and close air support fighter jets.
In 2020, the then deputy Minister of Defense and Armed Forces Logistics of the Islamic Republic of Iran announced the completion stages of a system called Majid, but no other details were published. The Majid Air Defense System was unveiled and introduced for the first time in the parade on April 18, 2021. The air defense system included two missiles and an airborne radiation detection system installed on an Aras 2 vehicle.
Some specifications of the Majid Air Defense System were released in a video introducing the Alborz three dimensional phased-array radar and the Borhan weapons control and command system on September 1, 2021. In this video, an image of the Borhan control screen was seen, indicating the specifications of the Majid Air Defense System as well as the ability of this system to be linked to the Borhan control and command system.
The video of the unveiling of Alborz radar and Borhan system, here is a picture of the linking of Majid system to Borhan system.
Design: The fully mobile short-range Majid Air Defense System consists of two main parts. One part is its missiles and the other part is an electro-optical detection and tracking system, both parts are installed and used on an Aras 2 tactical vehicle. All parts of the system are located in the vehicle’s cargo section.
The weapon station includes four AD-08 missiles (capable of being increased to eight) on both sides and an electro-optical system in the center. The weapon station has a 360-degree rotation capability, and the electro-optical system also has a 360-degree rotation capability independent of the weapons station. This system is also installed on a 4×4 Iveco Daily truck in addition to the Aras 2 tactical vehicle.
The reason for such a change in a truck could be to create better camouflage during movement and a lower chance of detecting this system.
Majid system on Iveco Daily truckMajid system on Aras tactical vehicleClick to view full size image
Carrier Vehicle: The Aras 2 tactical vehicle is a 4×4 tactical vehicle manufactured by Iran’s Ministry of Defense. This vehicle offers high mobility, high speed, and off-road capability. The Aras 2 tactical vehicle is a 4×4 tactical vehicle manufactured by Iran’s Ministry of Defense. This vehicle offers high mobility, high speed, and off-road capability.
This provides the Majid system with the ability to ambush or quickly relocate after tracking a target. The Iveco daily truck is a light 4×4 commercial truck made by the Italian company IVECO. This truck has a greater transport capacity than Aras 2 tactical vehicle and has probably been used to carry more missiles. Another possibility is better camouflage by the Iveco daily truck due to more space on the truck so that it can easily move on roads.
Electro-optical tracking and targeting system: The electro-optical tracking and targeting system used in the Majid Air Defense System includes two cameras that are placed on top of each other and in the center of the weapon station.
The electro-optical tracking and targeting system has a continuous 360-degree rotation capability independent of the weapon station. This system includes a daytime camera and a thermal camera, capable of operating at all times of day and night and in all types of weather.
The electro-optical tracking and targeting system used in the Majid Air Defense System can detect targets at a maximum range of 15 kilometers and guide four missiles simultaneously towards targets, allowing it to simultaneously protect itself from four different directions.
Electro-optic system cameras belonging to Majid air defense system
In normal mode, electro-optical systems rotate towards the target and guide a missile that has been fired until it hits.
In this state-of-the-art mode, the electro-optical system only tracks one target and merely guides one missile. But with continuous rotation of the electro-optic system, it is possible to find different targets in all directions and then give a firing order.
In this mode, the camera can continuously monitor its surroundings, and to a great extent it can reduce the possibility of being surprised as well as the destruction of the system. In this guidance method, the electro-optic system becomes a search and targeting system capable of finding several targets that can guide several missiles.
In this video, the missile is fired at the same time as the electro-optical system rotates. This means that the system does not need a lock on the target.
The AD-08 missile: The missile used in the Majid Air Defense System is a short-range missile with a thermal imager. This missile is sealed inside a tubular launcher and four of them are installed on the weapon station.
Given the presence of electrical connectors on each launcher, another launcher can be placed on top of the previous one. As a result, the Majid Air Defense System will be able to use eight missiles.
A graphic image of the Majid air defense system with 8 missiles (credit @marshallmo26 on X)
The missile has four stabilizing fins at the end and four control fins near the nose cone. The fins on the missile are foldable, allowing the missile to be placed inside a canister.
The Majid Air Defense System missile uses smokeless solid fuel. This type of fuel reduces the chance of detecting the launch site and increases the surprise of the enemy. Also, the AD-08 missile uses a thermal imaging camera at its nose cone, which guides and hits the target using this camera.
The electro-optical system issues a firing command after detecting the target. The missile moves towards the point announced by the system and then searches for the target by the use of its camera, locks onto it, and moves towards the target to destroy it. This method is the same as the fire-and-forget method, and as a result, the system can move immediately after firing. The use of a passive or non-active detector and the main system’s capacity to avoid locking onto the aim misleads the target.
The target will not be aware of thermal locking until the missile locks onto it. Also, being smokeless makes it impossible for the enemy to determine the path of movement of the missile and calculate information such as collision direction, speed, and so on to detect the launch location of the missile, which will take a long time.
In addition to this fact, due to using fire-and-forget capability, it has quick relocation capability. Therefore, if an enemy uses a decoy to detect the location of the system, given the mentioned conditions, the Majid Air Defense System does not leave much trace for detection and greatly increases its survival.
Types of Majid Air Defense System Missiles:
After examining published images of missiles and Majid Air Defense System, it seems that there may have been two versions of this missile: The initial version of the Majid Air Defense System was seen in the test footage, and the second version was showcased at ARMY-2023 exhibition and Doha Qatar exhibition.
Initial Version: The missile in the initial version has two sections in terms of diameter. The nose section has a smaller diameter, as well as the middle and end section, which have a larger diameter. A thermal camera is located in the nose cone, then there are control fins, warhead, and fuel compartment and in the end, there are stabilizing fins and engine are located at end.
The prototype of the missile has a nose with a smaller diameter than the new model
New Version: In the new or perhaps original version, the missile has three sections in terms of diameter. The location of the thermal camera is in the missile nose cone, which has the maximum diameter for placement in the canister. After that, there are control fins and a warhead, where the missile has a reduced diameter and appears to be the same as the original missile nose.
After the warhead, the missile diameter increases from the middle to the end and it appears to be the same as the missile tip. This section contains missile fuel, stabilizing fins, and a missile engine, which seems to be the same as the initial version.
Also, the final or original version of the missile has a uniform and integrated appearance generally in terms of body section and exterior. This missile has a different camera from the initial version in the camera section as well.
The new version of the AD-08 missile, which missile diameter increases from the middle to the end
The pictures below show the new model of the AD-08 missile, which was showcased for marketing at the Russian ARMY2023 exhibition. In the pictures, it is clear that a different camera is used than the prototype.
Pictures of the new model of the AD-08 missile at the ARMY2023 exhibition
Systems linked to Majid air defense system:
Borhan weapons control and command system: As mentioned earlier, the Majid system has the capability of linking to the Borhan system. The Borhan system is a command and control center for low-range and low-altitude weapons, which acts as the last level of command to create integration between systems in the last layer of defense.
This system can receive information from electro-optical and radar systems. After receiving and analyzing the information from all the sources, Burhan transfers them to the command and gives orders according to the type and nature of the target to all types of low-altitude systems available in the scene.
An image of the linking of the Borhan and Majid systems
Kashef 99 Radar: Kashef 99 radar is a 3D phased array radar capable of detecting small flying targets. This radar is designed to detect targets with low radar cross section, low altitude and short range such as quadcopters. Kashef 99 can simultaneously detect 300 targets within a range of 12 km. Kashef 99 is installed on a Toyota vehicle, which increases its mobility. It seems that there is a possibility of installing this radar on other vehicle as well. Due to the high power in detecting small birds, the Kashef radar is probably a part of the Battlefield Management System for the last layer of defense.
Kashef 99 radar with the ability to detect 300 small drones at a distance of 12 km
Prominent Features: – The speed and agility of the Majid Air Defense System – The ability to use various carriers – The Fire-and-forget capability – The Fire-and-forget capability – The use of smokeless missiles resulting in better camouflage – The ability to link with Borhan radar and system – The independent operation in ambush mode – The ability to operate within an integrated defense network – The ability to develop and enhance system capabilities
Specifications of Majid short-range air defense system: Type: Short-range air defense system Producer: Ministry of Defense of the Islamic Republic of Iran Origin: Iran Unveiled: April 18, 2021 In service: since 2021 Crew: Unknown Carrier vehicle: Aras 2 tactical vehicle and Iveco Daily truck Weight: unknown System range: 18 km Range of engagement: 8 km Altitude of fire: 6 km Maximum target speed: Mach 2 (2450 km/h) Number of simultaneously engaged targets: 4 targets Response time: 3 seconds Battery: each battery capable of firing 4 missiles (can be increased to 8 missiles)
AD-08 missile: Length: 2.67 meters Diameter: 156 mm Warhead weight: 14 kg Missile weight: 75 kg Range: 8 km altitude of fire: 6 km Guidance: Passive IR homing Speed: more than Mach 2
Majid Short-Range Air Defense System – click to view full size
More images of Majid short-range defense system:
Click to view full size
Infographics of Majid air defense system Russian(Маджид Система Защиты Ближнего Действия), Hebrew(מג’יד מערכת הגנה אווירית), Persian(سامانه مجید) and Azeri(Məcid Qısa Məsafəli Müdafiə Sistemi):
In January 2020, the US Department of Defense established the joint counter-small unmanned aircraft systems office to test more than 40 counter-UAS systems. Finally, this office proposed a solution in the form of FS-LIDS and M-LIDS for fixed and mobile missions to deal with micro-UAVs.

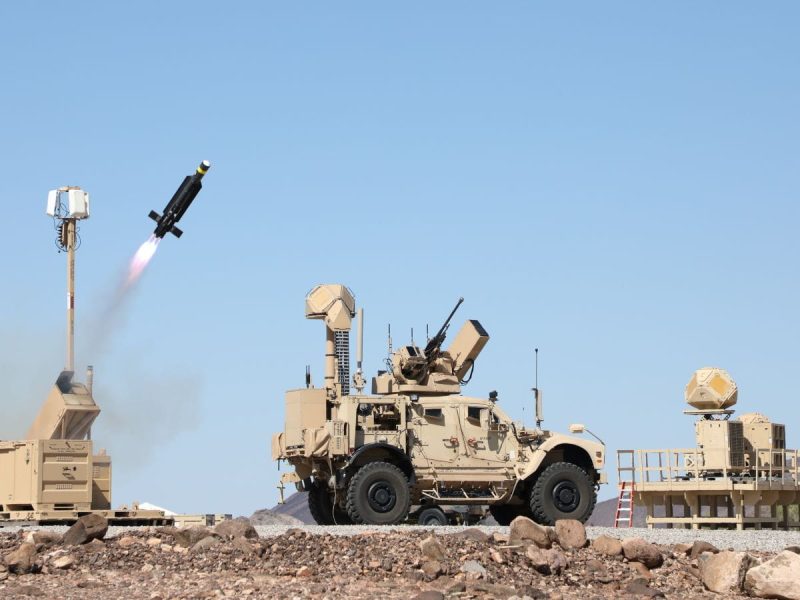

This system has two types: FS-LIDS stands for Fixed Site-Low, Slow, Small Unmanned Aircraft System Integrated Defeat System and M-LIDS stands for Mobile-Low, Slow, Small Unmanned Aircraft Integrated Defeat System. As their names suggest, FS-LIDS are fixed and M-LIDS are a mobile system; But both systems have common components.
This system is made of a combination of AN/TPQ-50 air surveillance radar or KuRFS radar, as well as an anti-drone electronic warfare system, an electro-optical and infrared camera, and Coyote drones. All these parts help the system to identify small drones that are moving at a low altitude, classify them and act to destroy and shoot them down.
It should be noted that any of the fixed FS-LIDS models or the mobile M-LIDS models can use the aforementioned radars.
Electro-optical system used in LIDS systemThe set of radar, EW, camera and other components related to FS-LIDS version provided by SRC for this systemClick to view full sizeCoyote-2 UAV shot from FS-LIDS ground fixed system
The M-LIDS has a 30 mm automatic cannon that is mounted on the Oshkosh armored vehicle. Due to the possibility of synchronizing the radar with the 30 mm cannon, it is possible to use this cannon to repel UAV attacks in the last layer.
30 mm cannon fire in the M-LIDS system
Also, in another model of this system, the ground-based model of the Phalanx close-in weapon system known as C-RAM has been used. In fact, the C-RAM anti-aircraft system is an independent protective layer that can be used in the last layer of interception.
C-RAM system, Coyote block 2, KuRFS radar (Ku-720-1 version) and electro-optical system in M-LIDS model installed on the Oshkosh armored vehicle
AN/TPQ-50 air surveillance radar: The AN/TPQ-50 is a lightweight counter-fire phased array radar manufactured by the American company SRC Inc. This radar, which was developed based on the AN/TPQ-48 radar, was made to detect artillery and mortar shells, rocket launcher systems such as MLRS, and to detect the firing location of all types of artillery. This radar provides continuous 3-D, 360 degree surveillance along with the ability to identify targets from a distance of 10 to 15 kilometers. This radar can be easily installed on armored vehicles or fixed tripods in the shortest possible time.
AN/TPQ-50 radar is installed and used on the FS-LIDS and M-LIDS system, which, due to its high detection power in detecting small artillery targets, also has a good detection ability in finding small drones.
AN/TPQ-50 radar
KuRFS air surveillance radar: KuRFS radar, short for Ku-band radio frequency system, is produced by Rayton company. This radar is a multi-mission, 3-D and 360-degree radar with continuous operation capability. This radar is designed to defend against rocket, artillery and mortar attacks and has been tested and used in the battlefields such as Iraq and Afghanistan wars. Today, the KuRFS radar is also used as an anti-drone air system radar. The radar is compatible with several weapon systems, including the C-RAM weapon system, 50-caliber cannons and 30 mm cannons, as well as support for high-energy lasers and Coyote drones.
The KuRFS radar uses a radar sensing technique called the Ku-band active electronically scanned array (AESA). This feature provides high resolution imaging and is an important part of tracking smaller flying objects. This radar uses many small antennas instead of one powerful antenna to allow better control. The KuRFS radar is deployed within 30 minutes, either at a fixed location or on a vehicle.
KuRFS radar (Ku-720-1 version) on the M-LIDS systemKuRFS radar (Ku-720-1 version) in the mobile version (M-LIDS) and installed on the Oshkosh armored vehicleKuRFS radar (original version) in mobile version (M-LIDS) and installed on FMTV truckKuRFS radar (original version) for use in fixed and ground-based (FS-LIDS) systemsClick to view full size
Coyote drone: Raytheon Coyote is a small, expendable, unmanned aircraft system with the capability of operating in autonomous swarms or used as part of a group of drones to perform missions such as electronic warfare, surveillance. This UAV is manufactured by Raytheon Company and is produced in three blocks 1, 2 and 3.
Coyote-1 has a weight of 5.9 kg, a warhead of 1.8 kg of kinetic energy, as well as a proximity fuse and a fragmentation explosive, a length of 60 cm and a wingspan of 1,473 meters, and with the use of an electric motor, the speed is equal to 130 km/h.
Coyote Block 1 – click to view full size
In Block 2 version or Coyote-2, a jet engine has been used instead of an electric engine, which has increased the speed of this drone to 555 km, its range to 15 km, and the flight ceiling to 30,000 feet (if the weather is favorable). As a result, Coyote-2 can neutralize threats at longer ranges and higher altitudes.
Turbine engine used in Cayote 2Coyote Block 2 – click to view full size
In Block 3 version or Coyote-3, a different and non-kinetic warhead is used. This type of warhead reduces the possibility of collateral damages and unlike the previous models which are disposable, it provides the possibility of recovery and reuse for Coyote 3. In fact, the Coyote 2 has a more traditional design similar to conventional drones with conventional wings. Coyote-3 uses an electric motor like the first version, but it is bigger than Coyote-1 in terms of dimensions and size.
A video of FS-LIDS and M-LIDS systems and how to destroy targets by Coyote 2 drones (Block 2)A conceptual image of the use of LIDS systems for short-range defense of an area or base
Export In 2022, the US State Department announced Qatar’s request to purchase this system. According to the available information, Qatar is looking to purchase 10 LIDS systems, which include 200 Coyote drones, electronic warfare platforms, radars and other equipment of this system with the support of American contractors. The value of this contract is estimated at 1 million dollars, and the US Defense Security Cooperation Agency has stated that the main contractors of this contract will be Raytheon, Northrop Grumman and R&D SRC. In this way, Qatar became the first country to purchase the LIDS anti-aircraft system from the United States.
Technical specifications of FS-LIDS and M-LIDS system components: Coyote 1: Length: 60 cm Wingspan: 1,473 meters Speed: 130 km/h Weight: 5.9 kg Warhead: 1.8 kg Engine: Electric Coyote 2: Length: 0.91 meters Wingspan: 1,473 meters Speed: 550 km/h Warhead: 1.8 kg Coyote range: 15 km Flight altitude: 30,000 feet (6,000 meters) Engine type: Jet KuRFS radar: Role: determining the coordinates of the enemy’s artillery position, controlling the airspace in the form of an anti-UAV system Target detection range: against small drones up to 16 km and 100 km to detect aircraft and helicopters Radar type: continuous 3D and 360 degree phased array radar Operating frequency: 14.5 to 16 GHz Radar frequency: Ku AN/TPQ-50 radar: Role: determining the coordinates of the enemy’s artillery position, controlling the airspace in the form of an anti-UAV system Radar frequency: L Target detection range: up to 10 km (effective), up to 15 km (maximum). Launch position detection accuracy: 50 meters at a distance of up to 15 km, depending on the type of weapon and trajectory, the accuracy may deteriorate. Target tracking: Multiple targets in 3D Support for IP networks: Yes Power required: AC 110/240V, 3000W, 50-400Hz or 24V DC supply. Power consumption: 1200 watts Weight: less than 500 pounds (< 227 kg) Height: more than 2 meters (on a tripod) Diameter: about 102 cm
The M-LIDS mobile system – click to view full size
History: Due to Iran’s armored requirements and the increasing advancement of anti-armor weapons and armor technology throughout the world, there was a need for a tank at the level of modern tanks in the Islamic Republic of Iran Armed Forces. Despite allocation of limited budget, the armed forces embarked on upgrading the existing T-72S tank. Although in the past, Zulfiqar 1 and 3 tanks had been built as prototypes in the country, they were never widely adopted due to the inability to produce them in large numbers given the country’s budget limit.
The Karrar tank was unveiled on March 12, 2017, in a ceremony attended by the then-Minister of Defense, General Hossein Dehghan. It was emphasized in the ceremony that the production line for the Karrar tank is also located in the Bani Hashem Armor Industrial Complex in Doroud County, Lorestan province. However, the introduction of this tank into service began slowly several years later. The production line was reopened in August 2020, and since then, the delivery process has been faster than before. The operational version of the Karrar tank differs from the unveiled version.
Design: The Karrar tank features a welded and modern turret with a 125mm gun and a remote-controlled 12.7mm machine gun, as well as a coaxial 7.62mm machine gun.
There are 12 smoke grenade launchers with an 81mm caliber on both sides of the turret, with six launchers on each side. The use of smoke grenades on both sides of the tank provides a larger range for creating smoke screens to disrupt laser-guided missiles
12 grenade launchers installed on Karrar
The Karrar tank includes a fire control system that consists of various components such as a muzzle reference system and a weather station. The muzzle reference system consists of two pieces, one at the beginning of the gun and one at the mouth of the gun, which detects the smallest angle of the gun that is not visible to the naked eye. As a result, the accuracy of direct gun fire is greatly increased.
The weather sensors, by performing calculations on variables such as wind speed, humidity, air temperature, etc., increase the accuracy of ballistic shots. The Karrar tank uses a Vaisala WXT536 weather station belonging to a US company.
Muzzle reference system and its two main partsVaisala WXT536 weather systemClick to view full size image
The Karrar tank uses a day and night vision system in front and back of the tank. This system includes an IR/EO day and night vision camera in the front left window of the driver’s hatch and a day and night vision camera at the back of the tank between the external fuel tanks.
The all-around surveillance system (360-degree periscope) of the commander of the tank is another available system on the Karrar tank. This system includes seven fixed periscope windows installed in the commander’s hatch. The all-around surveillance system provides the ability to install eight periscopes, but one of the positions is occupied by the remote-controlled machine gun base and it has been blinded, so no periscope is installed there.
The Karrar tank utilizes a surveillance and targeting system for the gunner, which is located on the turret of the tank. The two doors of this surveillance system are manually operated and they do not have remote control. In addition, this surveillance and targeting system does not have a washer or snow remover, which is a major weakness. In war conditions, there is a possibility of dirt and snow accumulating on it, which will disrupt the performance of the surveillance and targeting system without a cleaning system.
Karrar tank surveillance and targeting system collection
Armament: As it was mentioned before, the main weapon of the Karrar tank is the 2A46 series 125mm cannon, which is the same cannon used in T72 and T90 tanks. This cannon can fire various anti-armor and anti-structure ammunition. It also has the ability to fire laser-guided missiles. The first version of the Karrar tank contained armor for the cannon, which was located at the connection point of the cannon to the body precisely on the cannon. The mentioned armor provided significant protection for the cannon against post-impact bullet cracks on the body.
The secondary weapon of the Karrar tank is a remote-controlled 12.7mm machine gun. This weapon has its own day and night vision sight and is guided by the tank commander. It is not clear whether this machine gun can be independently guided by the gunner or not, but the possibility of its guidance by the tank gunner is not unlikely.
Remote controlled 12.7 mm machine gun
Armor protection: In addition to the main armor, the Karrar is also equipped with reactive armor in the front part of the chassis to protect itself. According to the available images, in this section, Karar uses Kontakt-1 reactive armors that are produced in Iran.
In this section, the Karrar tank uses 11 separating blades to separate the reactive armor blocks on the front slope of the chassis. In addition to separating the blocks from each other and preventing the transfer of explosive effects to the adjacent blocks, these blades also cause the blocks to be arranged more regularly. Because the effect of explosion of the reactive armor blocks (explosion wave, heat and shrapnel) is more lateral, the separation blades are also placed laterally.
In side protection, the Karrar tank uses armor similar to the Relikt plates. This section is a combination of 5 layers: two middle layers of vulcanized rubber, two steel layers reinforcing the rubber layer and a thicker steel layer, which is the last layer closest to the tank.
11 blades separating the reactive armor blocks in the front slope of the chassisThe side armor of Karrar tankClick to view full size image
In terms of turret protection, the design is very similar to the T-90MS tank. In this section, reactive armors with more resistance and similar to Relikt or Kontakt-5 reactive armor are used. The main difference between the Karrar design and the T-90MS in this section is the dimensions of the reactive armor. These plates are installed on the turret with a steep slope, the thickness of which increases in the end part. The number of blocks used in the Karrar tank turret is 58. 32 blocks are located on the front and side of the turret, which use different dimensions, and 15 blocks are used to cover the side edges of the front slope of the roof and 11 blocks are used to cover the central part of the roof.
The main challenge to fully cover the turret is related to covering the part connecting the gun to the turret, the armor used must be able to move up and down along with the gun. It seems that this part of Karrar tank does not have enough protection.
Arrangement of reactive armor blocks on the roof of the Karrar tankThe arrangement of the side blocks of the turretClick to view full size image
Karrar tank uses cage armor (or slat armor) in the end parts of the body and turret. These armors cause early activation of the anti-armor missile warhead, and due to the distance they have from the main body and tank armor, it reduces the explosive effect of the missile warhead, which ultimately leads to a decrease in missile penetration. In addition to being cheap, this type of armor is a suitable option for use in areas that are less threatening, i.e. the back of the tank.
In the rear part of the tank chassis, there are two barrel fuel tanks as external fuel tanks. This part of the tank does not have cage armor. The lack of armor in this section is due to three reasons: one is due to the low probability of hitting in open environment battles, and the second reason is the presence of external fuel tanks itself on Karrar, which does not allow the installation of cage armor, and the third reason is the possibility of cage armor hitting the ground and causing damages.
It would have been better to install flexible cage armors based on the T72B3 tank. These armors can be moved in the presence of external fuel tanks, and when the fuel tanks are not installed, they provide the required protection for the tank. It is also possible to use armors that are flexible and do not have the problem of hitting the ground by modeling the cage armor of the Challenger-2 tank.
The cage armor of the Challenger-2 tank, flexible when hitting the groundKarrar tank – fuel tanks and the cage armorRetractable cage armor in T72B3 tankClick to view full size image
One of the weaknesses of the T-72 series tanks, which is caused by its initial design, is the poor protection of the bottom part of the tank chassis. This issue still exists in the main chassis of the Karrar tank and no action has been taken to fix it. This issue becomes more important when we know that the tank’s main ammunition is stored in the floor of the chassis by means of the automatic loading system and in case of a mine explosion, the probability of the explosion of these ammunition is also very high. To fix this defect, this part can be strengthened by adding resistant and anti-shock plates in the front and lower parts, which are more sensitive.
The bottom of the Karrar tank chassis, which does not have additional armor
Protection system: Karrar tank uses a protection system with Soft Kill mechanism. This system, which is equipped with a laser beam detector and an infrared disruptor, includes four modules, in such a way that two modules are placed in the front part of the turret and two modules are placed in the rear part of the turret, and each one covers a specific angle.
The laser beam detector used in the protection system module reacts to the radiation of the laser beam from the guidance system and to the laser beam of the range finder system and warns the crew. When the crew received the warning, they threw smoke grenades and created a smoke screen, causing disruption of the laser beam reflection from the tank body.
The infrared disruptor used in the protection system module has a COB (Chip On Board) lamp with a 17×17 array. This system, by imitating xenon light radiation or thermal illuminator used at the end of anti-armor missiles, causes errors in missile guidance by the missile guidance system. This infrared disruptor has a general field of view of 60 degrees, a near infrared emission wavelength (Near IR), a preparation time of 60 seconds, a working continuity of up to 6 hours, a lifetime of 800 working cycles (each cycle includes 6 hours of work and one hour of shutdown), the power consumption is less than 80 watts and the working temperature is -20 to +55 degrees Celsius.
This system is presented to disrupt the performance of missiles such as TOW and M47 Dragon or second generation armored missiles in general, but it will also be effective against missiles such as 9K111 Fagot, 9M113 Konkurs, etc. by making modifications.
Karrar tank Soft Kill protection system
Engine power and mobility: The maximum possible weight of the Karrar tank is stated to be 48.5 tons, and according to the evidence of the use of an engine with a power of 1000 horsepower on the tank, the ratio of power to weight of this tank is 20.6 horsepower per ton, as a result we see an increase in the mobility of the Karrar compared to the T72-S version.
The type of Karrar tank engine has not been announced, but considering its 1000 horsepower and the fact that the T-90A model uses a V-92 engine with 1000 horsepower. It can be assumed that the Karrar tank engine is the same V-92 that was imported through Russia.
Karrar tank specifications: Type: Main Battle Tank Produced: Since March 12, 2017 Manufacturer: Bani Hashem Armor Industrial Complex Origin: Iran Length: 6.8 meters (hull) – 9.53 meters (with gun) Width: 3.6 meters Height: 2.23 meters (without remote-controlled gun) Mass: 46 to 48.5 tons (exact weight not announced) Crew: 3 (driver, commander and gunner) Engine: Enhanced engine with 1000 horsepower Speed: 60-70 km/h Operational range: 550 km (plus with 200-280 km more from fuel tank) Main armament: 125 mm 2A46M/M-2/M-5 smoothbore gun with stabilizer Secondary armament: Coaxial 7.62mm machine gun and a remotely controlled 12.7mm machine gun / 14.5mm machine gun
Karrar Main Battle Tank – click to view full size image
More images of Karrar tank:
Click to view full size image
Infographics of Karrar tank in Russian(Каррар танк), Arabic, Hebrew(טנק קאראר), Azeri(Kərrar Tankı) and Farsi(تانک کرار):
The Vikhr (whirlwind) missile was designed and developed in the Soviet Union in the 1980s to replace the 9K114 Shturm (AT-6 Spiral) missile by the “KBP” Instrument Design Bureau. This missile was able to deal with western tanks of its time such as Abrams and Leopard and conventional explosive reactive armor.
The Vikhr missile was first publicly displayed at the Farnborough Airshow in 1992. This missile was used in the early 2000s on the Su-25T close air support fighter and the Ka-50 Black Shark helicopter.
Vikher missiles are fired from APU-6 and APU-8 launchers. APU-6 rack supports 6 missiles and is used in Ka-50 helicopters. The APU-8 rack supports 8 missiles and is used in the Su-25T fighter.
The 9K121 Vikhr missile has a maximum range of 8 km if fired from a helicopter, and if fired by a fighter, its range is 5 km at night and 10 km during the day.
A picture of the APU-6 rack, which contains 6 Vikhr 9K121 missiles
The missile is placed in a pod, the front hatch of the pod is opened before firing, and the rear hatch is removed by the crew during loading. The 9K121 Vikhr missile has wings in the front part that fold into the body, and the missile engine is located in the middle part of the body. At the end of the missile, there are control fins that are folded to the side and gathered around the missile. This missile rotates around its longitudinal axis during flight.
First, the target is marked by a helicopter or fighter or by a laser beam, then the missile receives the beam reflected from the target and moves towards it using a laser detector placed at its tip.
A picture of the end part of the Vikhr missileA picture of the front part and retractable wings of the Vikhr missileA picture of the Vikhr missile and its carrier podClick to view full size
Vikhr missile uses a two-stage warhead to pass through reactive armor and also uses two types of impact and proximity fuses. This design allows the use of missiles on different platforms. Vikhr’s proximity sensor allows it to detonate and engage within 5 meters of an air target moving at a maximum speed of 500 meters per second. This versatility is a differentiating point compared to the 9M120 Ataka missile, which is sometimes confused with the Vikhr missile.
The high supersonic speed of this missile (up to 610 m/s) reduces the vulnerability of the helicopter during attack and allows it to engage several targets in a short period of time. The Vikhr missile travels a distance of 4 kilometers in 9 seconds.
Vikhr-1 missile: The Vikhr-1 missile is an improved version of the Vikhr missile manufactured by the Kalashnikov company. In 2013, the Russian Ministry of Defense signed a contract worth 13 billion rubles with the Kalashnikov company for the production of Vikhr-1. Delivery of orders began in 2015 and ended in 2016. This contract was considered the biggest government contract for Kalashnikov at that time.
Vikhr-K missile: The Vikhr-K missile is the naval version of the Vikhr missile. This missile can be used against light sea targets such as fast boats and low-speed air targets up to a range of 10 km.
9K121 Vikhr specifications: Manufacturer: KBP Instrument Design Bureau Origin: Russia Weight: 45 kg Length: 2.8 meters Diameter: 130 mm Warhead weight: 8-12 kg Maximum penetration in rolled steel: 1000 mm Maximum speed: 600 meters per second
Following the unveiling of the Mohajer-10 drone, in addition to adding a new member to the Mohajer drone series, a new UAV has also been added to Iran’s 2000-kilometer drone series, which will increase the diversity of drone product baskets and consequently increase the combat power of Iran’s armed forces.
A video of the unveiling of the Mohajer-10 UAV and its flight test
Design: Various organizations, including the Islamic Republic of Iran Army, the Qods Aviation Industries, and Iran Aviation Industries Organization (IAIO) have participated in the manufacturing of Mohajer-10 drone. According to one of the officials of the Ministry of Defence and Armed Forces Logistics, this drone has been designed and developed based on the needs announced by the armed forces, especially the ground and naval forces of the Islamic Revolution Guards Corps (IRGC) and the Islamic Republic of Iran Army.
At the first glance, the fuselage of this drone has similarities to the United States’ MQ-9 Reaper fuselage. There are also similarities between the body of Mohajer-10 and Kaman 22 (UAV) of the Islamic Republic of Iran Army. The front part and the nose of Mohajer-10 drone is similar to Kaman 22, which is where satellite communication antenna is located.
Similarity of nose between Kaman 22 and Mohajer 10
Mohajer-10 drone also has a similar tail to Kaman 22 and uses a combination of three wings. Two V-shaped wings are located on top of the fuselage near the engine and a smaller wing is located under the body.
Similarity of the tail between Kaman 22 and Mohajer 10
The main difference between Mohajer-10 and Kaman 22 is in the shape of their wings. In Kaman 22, wings have a special bend and twist in design but in Mohajer-10 wings have a simpler appearance and more stretch.
The main point about Mohajer-10 is its landing gear. The rear landing gear on Mohajer-10 drone in the unveiled version is foldable like Shahed-129 drone landing gear. The rear and front landing gear on Mohajer-10 are folded backward and are placed inside the fuselage during flight. The folding landing gear reduces drag during flight, and it reduces fuel consumption and increases flight range.
Similarity of the rear landing gear of Shahed-29 and Mohajer-10
However, in a video released of test flight of Mohajer-10 drone, this drone uses fixed rear landing gear. This simple landing gear that was also used in Mohajer-6 drone consists of a metal wire buckle and a flexible holder. The way it works is that due to flexibility of landing gear, metal wire prevents excessive opening of landing gear and flexibility also reduces pressure on structure at the time of landing. Therefore, there are two possibilities: The first possibility is that the published video is related to the initial (prototype) and experimental version of Mohajer-10 and it has been completed later. And the second possibility is that the Mohajer-10 drone has two cheap and expensive versions. In the cheap version, it uses simple landing gear and weaker optics, and in the expensive version, it uses foldable landing gear and a stronger camera (the camera used in Shahed-149).
The prototype version of the Mohajer 10 UAV that uses a fixed landing gear
Mohajer-10 drone also has the ability to carry a parachute for emergency landing, which seems to have inherited this capability from Mohajer-6 drone. This emergency parachute is located in a separate location behind satellite equipment and its straps are tied in two sections at the tail of the drone and near the engine.
The parachute for emergency landing
Given the similarities among Mohajer-10 drone, Kaman 22 UAV and Shahed-129, as well as the participation of the Iranian army among the manufacturers and developers of Mohajer-10 drone, it seems that this drone has benefited from the experience of building capabilities of the IRGC and the Ministry of Defense; so, the cooperation provides Iran’s armed forces with a high-quality and affordable version of the drone series. Most likely, this drone will enter service in bulk in the IRGC and army by repeating the successful experience of Mohajer-6 drone, and it will replace Mohajer-6 and Shahed-129 drones.
Dimensions: The dimensions and size of Mohajer-10 have not been officially announced, but based on available images, we can obtain the dimensions of Mohajer-10 drone. Based on images, which have been released so far, Mohajer-10 will have a length of 9 meters and a height of 2.4 meters, and its wing length will be 14 meters.
Camera and sensor system: Mohajer-10 drone uses a high-quality camera that was previously used on Shahed-149 (Gaza) drone. This system, which is one of Iran’s most advanced electro-optical systems, has a thermal imaging camera and laser rangefinder in addition to a day vision camera with a zoom power of at least 100 to 120 times as well. One of the highlights of this system is the use of catadioptric telescopic lens that multiplies magnification. Using this camera will significantly increase the quality of filming and photography of drones, which is considered a great advantage. In general, electro-optical systems are considered one of the main parts or perhaps the most important part of the drone.
The electro-optical systemsand ammunition used in Mohajer-10 drone
Armaments: Mohajer-10 drone has four hardpoints under its wings for carrying ammunition. This drone was carrying three Ghaem-5 precision-guided bombs with optical (TV) guidance, anti-armor Almas missile, and Arman guided air-launched bomb at the time of unveiling (image above). It seems that this drone can carry up to a maximum of eight bombs and missiles.
Mohajer-10 can carry various types of Ghaem series bombs, various types of Sadid series bombs, Almas anti-armor missile, Arman air-launched glider bombs, and so on.
Arman guided air-launched bombs are the latest type offered from this class of bombs that have been lightened and optimized for carrying by drones. Given the development of this drone on previous platforms such as Kaman-22 and Shahed-129, there is also a possibility to carry a wide range of weapons on Mohajer-10 such as: electronic warfare pods developed for Kaman-22 drone, Kaman-12 drone, Mohajer-6 drone, Sadid series bombs.
4 hardpoints under the wings to carry up to 8 missiles and bombs
Mohajer-10 drone has a flight endurance of 24 hours at an altitude of seven thousand meters and an operational radius of 2 thousand kilometers, and it benefits from a maximum speed of 210 kilometers per hour. The maximum fuel capacity of this drone is 450 liters and its maximum payload weight is 300 kilograms.
Specifications of Mohajer-10 drone: Role: Combat and reconnaissance drone Unveiled: 22 August 2023 Origin: Iran Producer: Qods Aviation Industries, and Iran Aviation Industries Organization (AIO) Length: 6.5 meters Height: 4.2 meters Wingspan: 18.2 meters Operational range: 2000 km Speed: 210 km/h Flight ceiling: 7000 meters Engine: Piston Maximum take-off weight: ~ 1000 kg Weapon payload: 300 kg Fuel weight: 450 kg Hardpoints: 4 under the wings, capable carrying up to 8 missiles and bombs Armament: Ghaem series bombs, Sadid series bombs, Almas anti-armor missile, Arman air-launched glider bombs, electronic warfare pods, etc.
Mohajer 10 long-range drone – click to view full size
More images of Mohajer 10 drone:
Click to view full size
Infographics of Mohajer 10 UAV in Russian(Мохаджир 10), Arabic(مهاجر 10), Farsi, Azeri(Mühacir 10) and Hebrew(מוהאג’יר 10):
