The Arman air defense system is a fully mobile air defense system, previously known as the Tactical Sayyad air defense system, observed during a military parade in April 2022. It’s worth noting that the export version of this system was showcased at the Russia’s ARMY-2023 Expo in capital Moscow under the name Tactical Sayyad air defense system.
This air defense system was renamed from Tactical Sayyad to Arman missile system to honor and preserve the memory of the martyr Arman Aliverdi.
A key innovation in the design of the Arman air defense system is the integration of radar and missile launchers in a single vehicle. This design, known as Transporter Erector Launcher and Radar (TELAR), along with the 360-degree coverage angle, increases the overall system’s agility and enables a quicker response to emerging threats. As a result, one unit of the Arman air defense system consists of a radar-carrying vehicle and three vertical missile launchers.
This air defense system is available in two variants, equipped with an active electronically scanned array (AESA) radar for the Islamic Revolutionary Guard Corps (IRGC) Aerospace Force and a passive electronically scanned array (PESA) radar for the Islamic Republic of Iran Air Defense Force. The active phased array radar of this system belongs to the Najm-804 radar family, and the passive phased array radar seems to be of the Joshan radar system.
The Arman air defense system, with the mentioned radars, is capable of detecting 24 targets within a range of 180 to 200 kilometers. It intercepts targets at a range of 160 kilometers and engages with targets at a range of 120 kilometers. The maximum engagement altitude of this radar is 27 kilometers, and it has the capability to engage up to 6 targets simultaneously.
As evident from the images, the Arman air defense system uses a triple missile launcher. According to available information, the Arman air defense system utilizes Sayyad-3F missiles, which are the vertically launched variant of the Sayyad-3 missile. The length of the Sayyad-3F missile is 6.1 meters, its diameter is 40 centimeters, and it weighs approximately 1000 kilograms. This missile has a range of 120 kilometers and a maximum engagement altitude of 27 kilometers.
The vertical launch capability in this system allows it to fire missiles without the need to change the angle and rotate the launcher towards the target, significantly increasing the air defense system’s responsiveness to threats.
Additionally, the air defense system has the capability to increase the number of missiles. By default, one unit (TELAR) of the Arman air defense system is equipped with three vertical-launch missiles. However, the air defense system can be connected to one or two missile carrier vehicles without radar (TEL), equipped with 6 vertical-launch missiles.
Replica of the Arman missile system (Tactical Sayyad) in two modes: TEL version with the capacity of carrying 6 missiles and TELAR version with the capacity of carrying 3 missiles
One notable feature of this air defense system is its “self-protection mechanism” against threats, which represents a significant advancement compared to previous air defense systems such as the Khordad-3 and Khordad-15 air defense systems. According to available information, the integrated protection in this air defense system allocates one of the canisters specifically for this purpose. In fact, the Arman air defense system is equipped with another short-range air defense system in one of its canisters, providing protection against low-altitude threats such as cruise missiles and air-launched bombs.
According to an estimation by the Tansim News Agency defense desk, the small and unidentified missile, which was observed alongside the Tactical Sayyad air defense system or the Arman air defense system at an exhibition in September 2022, is likely to be arranged in a quad-pack, meaning four missiles placed together in one of the canisters, providing the Arman air defense system with the ability to engage targets within a few kilometers range.
A possible missile for the self-defense system embedded in the Arman defense system
Specifications of Arman air defense system: Type: High-altitude medium-range anti-ballistic missile system Origin: Iran Producer: Aerospace Industries Organization (AIO) Unveiled: 17 February 2024 System range: 120 km Altitude of fire: 27 km
Radars: Najm-804 AESA radar and Joshan PESA radar Detection range: 200-180 km Interception range: 160 km Engagement range: 120 km Altitude of fire: 27 km Maximum target detection: up to 24 targets Number of simultaneously engaged target: 6 targets Reaction time: less than 20 seconds Batteries: 3 missiles on each TELAR (expandable to 6 in TEL version)
Missile: Sayad-3F (SD3-F) vertically launched missile Range: 120 km Altitude of fire: 27 km Length: 6.1 meters Diameter: 40 cm Weight: 1000 kg Speed: Mach 4.5 – 5.1
Arman Air Defense System – Click to view full sizeClick to view full size image
Infographics of Arman air defense system in Russian, Hebrew and Farsi:
History and development: After the First Persian Gulf War and Saddam’s use of the Al-Hussein missile against some neighboring countries such as Saudi Arabia, exposed the controversial performance the Patriot air defense system, And the production program of the anti-ballistic system was specially placed on the agenda of the Israeli regime.
The Arrow anti-ballistic system has been jointly funded and developed by Israel and the United States since 1986, and its production and development process has continued until today. According to the Israeli regime, this system is more effective than the American MIM-104 Patriot system to repel ballistic missile attacks.
Undertaken by the MALAM division of the Israel Aerospace Industries (IAI) and Boeing, it is overseen by the Israeli Ministry of Defense’s “Homa” administration and the U.S. Missile Defense Agency.
Israel initially produced the Arrow system domestically, but on February 11, 2003, IAI and Boeing signed an agreement, valued at over $25 million for fiscal years 2003–2004, to establish production facilities for the manufacture of components for the Arrow missile in the United States. In March 2004, IAI awarded a $78 million production contract to Boeing; the total contract value could exceed $225 million through second quarter 2008. As a result of successful implementation of this contract Boeing is responsible for production of about 35 percent of Arrow missile components, including the electronics section, booster motor case and missile canister, at its Huntsville, Alabama, facilities. IAI, the prime contractor of the Arrow system, is responsible for integration and the final assembly of the Arrow missile in Israel.
Boeing also coordinates the production of Arrow missile components manufactured by more than 150 American companies located in over 25 states.
Today, Boeing’s share in the production of the “Arrow 3” system has reached 40-50%.
The first launch of the Arrow interceptor took place on August 9, 1990, designed to test the missile’s control and guidance systems. This test was stopped after a few seconds due to a malfunction in the systems and the missile was destroyed in the sky. This missile had several unsuccessful tests in 1991. Although the missile was finally successful in 1992, and the missile design was changed to Arrow 2. Although Arrow 2 also encountered problems many times, after solving the problems in 1998, the Arrow 2 system was delivered to the army for testing.
On March 14, 2000, the first complete Arrow 2 battery was rolled out in a ceremony at Palmachim Airbase.
In June 2001 Arrow missiles were test-fired in the course of a joint American-Israeli-Turkish exercise code-named Anatolian Eagle, in the southeast of Turkey.
In October 2002 the second battery was declared operational.
In the continuation of the development of the Arrow anti-ballistic system, changes were made on the Arrow 2 missile, and each of these changes was placed in different blocks. The Arrow 2 block-2 missile entered the test phase in 2003. In 2007, Arrow 2 block-3 was also tested. In September 2008, a Blue Sparrow missile, capable of simulating “Scud-C/D” missiles was used to test the Arrow 2 block-4, but the test failed; The next test was repeated on April 7, 2009 and this time it was successful.
By August 2008 the United States and Israeli governments have initiated development of an upper-tier component to the Israeli Air Defense Command, known as Arrow 3. The development is based on an architecture definition study conducted in 2006–2007, determining the need for the upper-tier component to be integrated into Israel’s ballistic missile defense system. According to Arieh Herzog, the main element of this upper tier will be an exoatmospheric interceptor, to be jointly developed by IAI and Boeing. Arrow 3 was declared operational on January 18, 2017.
By April 2011 Israel’s Missile Defense Organization (IMDO) launched initial definition of a new block-5 upgrade to the complete Arrow system that will merge the lower-tier Arrow 2 and exoatmospheric Arrow 3 into a single national missile defense system. According to Arieh Herzog, the planned block-5 will include new ground- and airborne sensors, a command and control system, and a new target missile – the Silver Sparrow – to simulate potentially nuclear-capable delivery vehicles developed by Iran.[68] According to the U.S. Missile Defense Agency, block-5 is expected to be able to deal with “more stressing regional threats” by increasing total defended area by some 50 percent.
In 2017, the Arrow 4 system was defined and put on the agenda for future complex threats. These threats included hypersonic cruise missiles or any other supersonic aircraft. It should be noted that research on Arrow 4 has gained more speed after the unveiling of the Iranian Fattah hypersonic missile.
Until today, parts of Arrow anti-ballistic system, such as radar, have been exported to countries such as the Republic of Azerbaijan. But Arrow, as a complete system, serves only in the army of the Israeli regime. It should be noted that a contract for the full sale of the Arrow system has recently been concluded with Germany.
Financial sources of the project: From the beginning of the design of the Arrow anti-ballistic system, the United States has had a direct role in financing it. Estimated credits required for this project are 1.6 billion dollars and the price of each Arrow missile is estimated at 3 million dollars. However, according to the financial report of the Congressional Research Service (CRS) published in 2023, the total financial assistance of the United States to the Arrow anti-ballistic system reaches 4.5 billion dollars. Estimates of Israel’s spending on the Arrow program show that Israel has spent more than 60 million dollars annually for this project independently, which amounts to more than 2 billion dollars. As a result, the Arrow anti-ballistic system program has cost more than 6.5 billion dollars so far.
An image of the United States financial aid report to the Arrow program
Design and parts: The Arrow system consists of the hypersonic Arrow anti-missile interceptors, Arrow 2 and Arrow 3, the Elta EL/M-2080 “Green Pine” and “Great Pine” early-warning AESA radars, the Elisra “Golden Citron” (“Citron Tree”) C3I center, and “Brown Hazelnut” (“Hazelnut Tree”) launch control center. The system is mobile and can be moved to other prepared sites.
Each missile of the system is placed in a canister and all 6 of them are placed on a truck. Each Arrow anti-ballistic system battalion includes 4 to 8 mobile launchers (24 to 48 missiles), a mobile Green Pine early warning radar unit, a radar power supply unit truck, a radar cooling unit truck, a radar control unit truck, a Elisra Golden Citron control center, Brown Hazelnut mobile launch control center and mobile communications center, resulting in 11 to 15 trucks per battalion.
The model set that shows how to arrange the components of the arrow system. 1- Arrow missile launcher 2- Golden Citron control center 3- Communication center 4- Brown Hazelnut launch control center 5- Green Pine early warning radar antenna 6- Radar control center 7- Radar power unit 8- Radar cooling unit
Green Pine early warning radar: The Green Pine early warning radar model EL/M-2080 has a range of 500 km and the Block-B Super Green Pine version or EL/M-2080s has a range of 900 km. This radar also has a Block-C version, the specifications of which have not been revealed yet.
The Green Pine radar is an active electronically scanned array (AESA) radar. This radar is active in the X-band and is capable of detecting 30 targets at a speed of 3000 meters per second (equivalent to Mach 8.8) in a maximum range of 500 to 900 km depending on the model. The accuracy of missile guidance by the green pine radar is up to 4 meters of the target, and after that the missile acquires the target and hits with its own radar.
The Green Pine early warning radar antenna has a width of 9 meters and a height of 3 meters. This radar system consists of an antenna, a power system (including a diesel generator and fuel tank), a cooling system and a radar control center, and it has 2000 to 2300 modules that send and receive waves and weighs 60 tons.
The Green Pine radar is mobile and can be moved using 4 trailers, but it is not possible to set it up anywhere. In general, it takes about 24 hours to set up a green pine in a new operational site.
Golden Citron control center The “Golden Citron” truck-mounted net-centric open systems architecture Battle Management Command, Control, Communication & Intelligence Center can control up to 14 intercepts simultaneously. The system provides fully automatic as well as Human-in-the-Loop options at every stage of battle operation management. It is also capable of interoperability with other theater missile defense systems and C3I systems. Notably Link 16, TADIL-J, communications were being altered to allow interoperability with Patriot fire control units. Assigned targets can be handed over to the Patriot’s AN/MPQ-53 fire control radar. The “Golden Citron” has three banks of operator consoles laid out in a U shape. All in all, the “Golden Citron” is manned by 7–10 operators.
Brown Hazelnut launch control: The “Brown Hazelnut” launch control center is located at the launch site, up to 300 km from the “Golden Citron” fire control center. It employs microwave and radio data and voice communications links to the “Green Pine” and “Golden Citron”. The launch method is a vertical hot launch from a sealed canister, providing all-azimuth coverage. “Brown Hazelnut” also has missile maintenance and diagnostic capabilities
Missiles (interceptors): The Arrow anti-ballistic system includes several missiles, including Arrow 1, Arrow 2 (including five models), Arrow 3 and Arrow 4.
Arrow 1: The Arrow 1 was a two-stage solid propellant missile that was not put into service. The test of this missile failed on August 9, 1990. The ninth and last test of this missile, which was successful, was conducted on June 12, 1994, from a ship in the Mediterranean Sea. Although several tests of this missile failed and some of them were successful, but in the end this missile was not put into service; And the development of Arrow 1 ceased and further research continued with the “smaller, faster and more lethal” Arrow 2 missile.
This Arrow 1 had inertial and command update mid-course guidance, with a terminal infrared focal plane array. Also, the Arrow-1 interceptor had the capability of thrust vectoring in both stages. The exact specifications of the Arrow 1 missile have not been revealed, but its estimated specifications are available.
Specifications of Arrow 1: Length: 7.5 meters Body diameter: 1.2 meters Length of the second stage: 2.5 meters Weight: about 2000 kg
Arrow 1 missile replica
Arrow 2: The Arrow 2 missile project was developed to achieve a smaller but faster and more lethal missile. The development of this missile started in 1994 and it successfully passed its first tests on July 30, 1995. These experiments continued until 1998. On November 1, 1999, an Arrow 2 missile successfully intercepted and destroyed a Scud missile. After this success, the first battalion of this system was activated on March 14, 2000 during a ceremony at the Palmachim Air Base.
This two-stage missile is equipped with solid propellant booster and sustainer rocket motors. The Arrow-2 missile uses an initial burn to carry out a vertical hot launch from the container and a secondary burn to sustain the missile’s trajectory towards the target at a speed of Mach 9. Thrust vector control is used in the boost and sustainer phases of flight. At the ignition of the second stage sustainer motor, the first stage assembly separates. The Arrow missile is launched before the threat missile’s trajectory and intercept point are accurately known. As more trajectory data becomes available, the optimum intercept point is more precisely defined, towards which the missiles is then guided. The 500 kg kill vehicle section of the missile, containing the warhead, fusing and the terminal seeker, is equipped with four moving delta aerodynamic control fins to give low altitude interception capability. The dual mode missile seeker has a passive infrared seeker for the acquisition and tracking of tactical ballistic missiles and an active radar seeker used to home on air-breathing targets at low altitudes. The infrared seeker is an indium antimonide focal plane array.
The kill vehicle is designed to achieve a hit-to-kill interception, but if this is not achieved, the proximity fuze will direct the warhead fragments at the target shortly before reaching the closest point to the target. The high explosive directed blast fragmentation warhead is capable of destroying a target within a 40–50 m radius. In this manner, Arrow also differs from Patriot PAC-3, THAAD, and Standard Missile 3, which rely purely on hit-to-kill technology in which the kinetic force of a precise impact causes the destruction of the threat.
Video of the successful interception of a Yemeni missile outside the atmosphere by an Arrow-2 missile, May 2025Arrow 2 missile
Arrow 2 Block-2 missile: A successful test of the Arrow 2 block-2 took place on January 5, 2003. Four missiles were launched towards four simulated targets in order to examine the interceptor’s performance during special flight conditions as well as system performance during a sequence of launches. The test did not include actual interceptions. Another successful test held on December 16, 2003, examined the system’s ability to intercept and destroy incoming missiles at significantly high altitudes, around 60 km.
On July 29, 2004, Israel and the United States carried out a joint test at the Naval Air Station Point Mugu Missile Test Center in California, in which the Arrow interceptor was launched against a real “Scud-B” missile. The test was a success, with the interceptor destroying the “Scud” that flew a 300 km (190 mi) trajectory at an altitude of 40 km.
This system conducted another test on August 26, 2005. This test was aimed at examining the Arrow’s ability to detect a splitting warhead of a separating ballistic missile. During the test, despite the correct detection, it could not destroy it due to a technical defect.
In March–April 2005 the ability of “Green Pine” and “Golden Citron” to work with Patriot system elements operated by U.S. Army was successfully tested against simulated “Scud”-type targets during regular series of U.S.–Israeli biennial exercises code-named “Juniper Cobra”.
Actual testing of the complete Arrow system was resumed in December 2005, when the system successfully intercepted a target at an unspecified but reported record low altitude.
A picture of the Arrow system launcher, which is the same for all types of this system.
Arrow 2 Block-3 missile: On February 11, 2007, an Arrow 2 block-3 successfully intercepted and destroyed a “Black Sparrow” target missile simulating a ballistic missile at high altitude. It was the first so-called distributed weapon system test conducted in Israel, which required two Arrow units deployed some 100 km apart to share data on incoming threats and coordinate launching assignments. It was also the first time the Link 16 data distribution system was used to connect two Arrow units.
Arrow 2 Block-4 missile: On April 15, 2008, the Arrow system successfully detected and made a simulated intercept of a new target missile. During the test, a target missile was launched from an Israeli F-15 at a height of 27.5 km. The missile split into multiple warheads, making it harder to intercept it. Nevertheless, “Green Pine” tracked the warhead, simulating an intercept. In September 2008, another test attempted against the “Blue Sparrow” missile but the test failed. Eventually the Arrow 2 block-4 was successfully tested against the “Blue Sparrow” on April 7, 2009.
This missile was also tested on July 22, 2009 against an airborne missile with a range of 100 km fired from a C-17 Globemaster III transport aircraft, but the test was unsuccessful.
This missile successfully passed several other tests until 2015. These tests revealed the need to create a new Battle Management Center, launchers with high shooting availability, better communication with other missile systems and wider ranges of interceptions. Because the probability of success was not high and better launchers should have been used to protect the crew. Also, the control center was facing problems in transmission and correct detection of the firing position, which had to be solved.
Arrow 2 Block-5 missile: By April 2011 Israel’s Missile Defense Organization (IMDO) launched initial definition of a new block-5 upgrade to the complete Arrow system that will merge the lower-tier Arrow 2 and exoatmospheric Arrow 3 into a single national missile defense system. So, a new ground and airborne sensors, a command and control system, and a new target missile – the Silver Sparrow – to simulate potentially nuclear-capable delivery vehicles were defined for test.
The planned block-5 will optimize the existing Super Green Pine radar to operate with the AN/TPY-2 radar as well as with radars commanding anti-ballistic missiles aboard United States Navy destroyers. U.S. radars will be used to support closed-loop operations if Israel and U.S. targets in the region come under attack.
Arrow 3: By August 2008 the United States and Israel have initiated development of an upper-tier component to the Israeli Air Defense Command, known as Arrow 3. Arrow 3 missile was tested on January 23, 2012 and was declared operational on January 18, 2017.
Arrow 3 operates at greater speeds, greater range and at greater altitudes than Arrow 2, intercepting ballistic missiles during the space-flight portion of their trajectory.
Arrow 3 is a two-stage solid fueled missile. Unlike the Arrow 2 missile, this missile only uses “Hit-to-Kill” method to deal with ballistic missiles. The concept of Hit-to-Kill uses the effect of kinetic energy and direct impact to destroy the target instead of proximity fuze. These types of weapons are also called kinetic energy weapons.
Arrow 3 – Interceptor section in the last stage
The interceptor part of the last stage of this missile consists of a solid fueled propellant with the ability a thrust vectoring, which is very reliable at the same time as simplicity and cheapness. At the tip of this section, there is an infrared seeker that tracks the target and provides the possibility of high accuracy.
The location of the ‘hit-to-kill’ part in the Arrow 3 missile
This missile and its system are designed to intercept targets at an altitude of more than 100 km and with longer ranges; Thus, the range of this missile reaches 2400 km.
The interception capability of this system has not been revealed, but the Arrow 3 system is expected to intercept 5 ballistic missiles within 30 seconds.
According to Isaac Ben Yisrael, the former chairman of the Israeli Space Agency, Arrow 3 may serve as an anti-satellite weapon, which would make Israel one of the world’s few countries capable of shooting down satellites.
Arrow 3 missile and launcherVideo of how the Arrow 3 system worksVideo of the Israeli Ministry of Defense’s explanation of how the Arrow 3 system works
Arrow 4 missile: In 2017, after the Arrow 3 missile entered service, the Israeli Ministry of Defense set a new goal and plan for defense against future threats. The main goal was to deal with hypersonic missiles. These weapons, whether cruise or ballistic, were among the targets that could not be intercepted and engaged by the Arrow system. In the new program, the goal was to develop a new radar and a new control center and a new missile. In early 2021 Israel revealed that the development of the Arrow 4 interceptor was ongoing and that the system was targeting the interception of hypersonic threats such as hypersonic cruise missiles and hypersonic glide vehicles. Efforts to counter hypersonic threats took on new urgency following a November 2022 announcement by Iran that they had tested a hypersonic missile that could hit Israel in as little as four minutes.
Specifications of Arrow anti-ballistic missile system: Type: Anti-Ballistic Missile Origin: Israeli and American regime Manufacturer: Israel Aerospace Industries and Boeing Defense, Space & Security (BDS) Entered service: since 2000
Arrow 2 missile: Range: 150 km Speed: Mach 9 Flight altitude: 50 km Length: 6.8 to 7 meters Diameter: 500 mm Weight: 2800 kg Warhead: 150 kg HE fragmentation Propulsion: two-stage solid propellant Guidance: PRH – ARH
Arrow 3 missile: Range: 2400 km Speed: Not disclosed Altitude of fire: more than 100 km Length: Not disclosed Diameter: about 0.5 meters Weight: Not disclosed Warhead: Hit-to-Kill Propulsion: two-stage solid propellant Guidance: INS – Gimbaled seeker
Radar: EL/M-2080 Green Pine Detection range: 500 km in EL/M-2080 – 900 km in EL/M-2080s Engagement range: 300 km at an altitude of 40 km against the Scud missile Number of simultaneously detected targets: 30 targets with a maximum speed of Mach 8.8 Number of simultaneously engaged targets: Not disclosed Reaction time: Not disclosed Batteries: 6 launchers mounted on a trailer
Arrow (Hetz) anti-ballistic system – click to view full size
More images of Arrow system:
Click to view full size
Infographics of ‘Arrow anti-ballistic missile system’ in Farsi, Hebrew, Russian and Azeri:
History: The D9 bulldozer has been produced by the Caterpillar company in America since 1954. This bulldozer uses one blade in the front and several splitting blades in the back. Caterpillar does not produce any armored version of this bulldozer. The D9 bulldozer was first used by the United States to clear forests during the Vietnam War. This bulldozer in the commercial version is continuously upgraded and different versions of it have been presented till date.
The D-9 bulldozer received many upgrades in the IDF and participated in the Sinai War (1956), the Six Day War (1967), the Yom Kippur War (1973) and Operation Peace for Galilee (1982). In 1980, according to previous war experiences, armor was installed on the D9L bulldozer, and in 1990, an improved version of the armor was installed on the D9N, in the service of the apartheid regime of Israel.
Since 2000, a new version of the D9R was purchased from the American company and entered service after being equipped with a reinforced armor. In 2005, another new armor was introduced and installed for the D9R, which was upgraded according to new threats. Most of these experiences were obtained as a result of the terrorist attacks of the Israeli apartheid regime on the residential areas of the Palestinian people.
Design: The main modification carried out by the Israeli regime on this bulldozer includes the installation of an armor package in its various parts such as mechanical systems and the crew cabin, bulletproof glass for the cabin and adding shelf armor especially to the cabin to create maximum protection.
The CAT D9 bulldozer was heavily modified by the Israeli military and aerospace industries to withstand heavy attacks.
In commercial mode, the D9 uses a 360-degree camera, which is available as an option. This camera is also equipped with a display inside the cabin. There is also an optional electric ladder that facilitates the movement of the bulldozer crew.
Commercial version of Caterpillar D9 bulldozer
The D9R bulldozer, the latest variant of Caterpillar D9 bulldozers in the service of the Israeli army, uses an 18-liter turbocharged 3408C diesel engine with a power of 474 horsepower and a drawbar pull of 71.6 metric tons (about 702 kilonewtons), and has three front gears and three reverse gear.
The cabin and armored sections have the ability to protect the crew against bombs, standard and medium bullets. Also, new additional armor provides the possibility of resistance against rocket-propelled grenades (RPG). It is also possible to install a gun on the roof or a grenade launcher on it. This military version has two crew members including the driver and commander. A hatch is installed in the roof for the commander, which allows the use of a 7.62 mm machine gun.
Bulldozer D9 (Doobi) fully armored, which a 7.62 mm machine gunis mounted on the roof of a the Bulldozer
Armored equipment added to the bulldozer adds approximately 15 tons to its weight, bringing the weight to 65 tons. Due to the D9’s durable construction and added armor, this bulldozer is able to withstand landmines, IEDs, and roadside bombs. This armored bulldozer can tow armored vehicles weighing up to 70 tons.
The Doobi armored bulldozer is used for a wide range of combat engineering tasks such as digging trenches, building fortifications, creating roads, rescuing overturned or damaged armored vehicles, clearing minefields, detonating various types of explosive traps, clearing ground obstacles for ground forces.
Israeli regime also operates armored remote-controlled D9N bulldozers, called “Raam HaShachar”. The remote-controlled bulldozer is used when there is a great risk for human life, mainly when opening dangerous routes and detonating explosive charges.
Armored D9R and D9N bulldozers played important role in the Second Lebanon War (2006) and Operation Cast Lead (2008–2009). Both bulldozer types were involved in opening routes, clearing explosives and IEDs, building sand mounds to protect AFVs and infantry camps, and demolishing structures such as rigged buildings, HQs, warehouses, outposts, bunkers and tunnels.
Different versions of D9 bulldozers that have been made to date.
In 2014, the Doobi bulldozer was recorded in the Guinness Book of Records as the world’s most armored bulldozer.
In 2018, a version of the D9 armored bulldozer named “Panda” from the Caterpillar D9T series was introduced, which is the remote control version of this bulldozer. Also in 2019, Elbit Systems won the IMOD contract to install the Iron Fist active protection system on the Israeli army’s D9 armored bulldozers to protect them from anti-tank missiles. There is no information about the fate of installing the Iron Fist defense system on this bulldozer.
Specifications of D9 armored bulldozer (Doobi): Type: Armored bulldozer Manufacturer: Caterpillar and Israel Defense Industries Year of manufacture: since 1954 Entry into service: since 1955 Crew: two (commander and driver) Length: 8.7 meters Width: 4.5 meters Height: 4.1 meters Engine: Caterpillar 3408C diesel with 474 horsepower Fuel capacity: 960 liters Speed: 15 km/h Weight: 65 tons (fully armor) Weapons: 7.62 mm machine gun and grenade launcher
D9 Armored Bulldozer – click to view full size
D9 armored bulldozer posters in Russian, Arabic, Farsi and Hebrew languages:

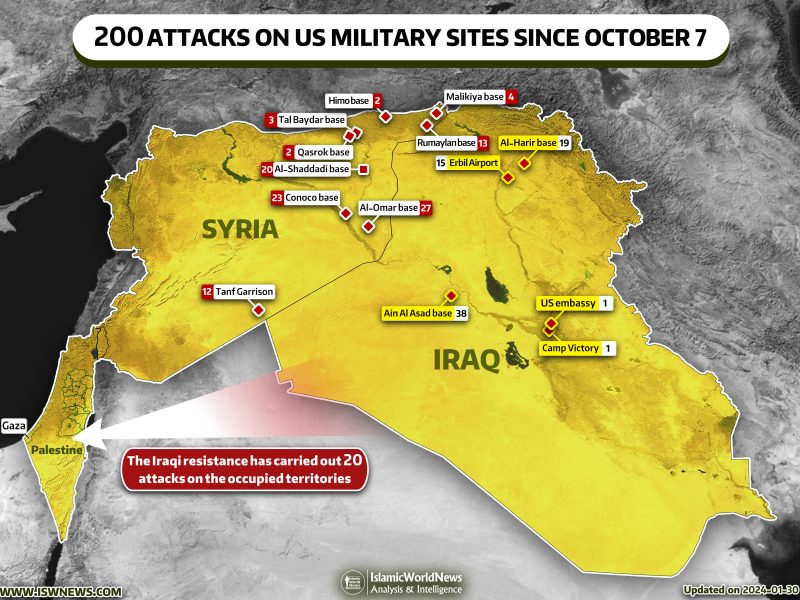

The Islamic Resistance in Iraq, an umbrella group representing several Iraqi armed factions, immediately began attacks against the forces of the Israeli regime in the region a few days after the onset of the battle between the Israeli regime military forces and the Palestinian resistance fighters. With the intensity of the clashes and the reaction of the United States to the resistance actions, the quality and quantity of the attacks also increased. Over time, the scope of these attacks expanded and spread to the positions of the Israeli-occupied territories.
Up to the time of writing this news story (23:00 Jan 30), resistance groups have carried out 200 missile, rocket, and drone operations against the illegal bases of the US terrorist army in the countries of Iraq and Syria as well as the occupied Palestinian territories.
These attacks by the Islamic Resistance in Iraq continued even after the recent agreement between the incumbent government in Baghdad and Washington’s Biden administration regarding the withdrawal of American military forces from the Arab country. It seems that, despite the announcements about the withdrawal of the United States from Iraq, as long as the departure of the occupiers is not visibly and realistically seen on the ground, the resistance group’s attacks will not cease. Iraqi resistance groups insist on the actual withdrawal of US forces from both Iraq and Syria.
However, it should be added that after the drone attacks on al-Tanf area and al-Rukban base on January 28, which resulted in the death of 3 American soldiers; Kataib Hezbollah of Iraq, one of the powerful subgroups of Islamic Resistance in Iraq, announced the temporary halt of attacks on American bases in Syria and Iraq. However, it seems that the attacks of other groups on American positions are continuing.
Almas anti-armor missile is an Iranian air-to-surface (air-launched) and surface-to-surface (ground-launched) missile, which is produced in three variants Almas-1, Almas-2 and Almas-3.
Almas missile was seen for the first time in spring 2020 during the mass delivery of UAVs to the Islamic Republic of Iran Army and was officially unveiled and fired by the Ababil 3 UAV during the army’s UAV exercise in the following January.
After the unveiling of the Almas missile and its similarity with the Israeli “Spike” missile, the attention of many military experts was drawn to this missile. Some experts believe that after the 2006 Israel–Hezbollah War, a number of Spike missiles fell into the hands of resistance fighters and these missiles were transferred to Iran, and Iranian experts reverse-engineered this missile and produced the Almas family of missiles.
Almas family missiles use a tandem-charge high-explosive anti-tank (HEAT) or thermobaric warhead. The Almas warhead is located just behind the camera at the tip of the missile. Almas missile guidance system is based on image infrared homing (IIR) and elctro-optical sensors.
The Almas missile is a top-attack missile and hits the weakest point in the armor from above and damages them. This greatly increases the efficiency of this missile. In addition, the Almas missile has a “fire and forget” capability; This helps in reducing the damage to the missile crew.
Almas anti-armor missile ground launcher
Due to the increase in defense technologies in modern battle tanks and the development of various active defense systems to deal with anti-tank missiles, the destruction of tanks has become more difficult. Israel is also a leader in this field with Trophy active protection system. By installing the Trophy active protection system on its most important tank, the Merkava Mark-4, Israel has made it difficult to destroy this tank with an anti-tank missile.
The first solution to deal with the active protection system is to launch two anti-armor missiles in a short time interval to prevent the proper functioning of the defense system. Dehlavieh dual missile launcher is one of the smart solutions to counter and defeat the trophy active defense system produced by Iran. This system is produced in Hezbollah’s combat unit under the name of the Tharullah system, which has a function completely similar to the Dehlavieh dual missile launcher.
One of the other ways to deal with active defense systems is to attack the battle tank from above (top-attack) because most of the active defense systems do not have the ability to react against such attacks. Therefore, top-attack missiles are a good option to deal with these systems. For this reason, Iran started building and designing Almas missile by taking the example of Israeli Spike anti-armor missile.
Almas-1 missile: Almas 1 missile is very similar to Spike LR anti-armor missile in terms of design and specifications. Almas-1 uses four fins with the same combination as the Toophan missile. In the Almas missile, a solid fuel engine with a hot gas outlet similar to the Toophan missile can be seen on its body. According to the images and announced specifications, this missile uses an image seeker and fiber-optic wire to find and destroy targets. The range of this missile is 4000 meters and it weighs 15 kg.
Almas-1 ATGM missileAlmas-1 anti-armor missile live test
Almas-2 missile: Almas 2 missile is a more advanced version of the Almas 1 missile, and its range has been increased to about 8,000 meters when fired from a ground-based launcher. This missile has the ability to penetrate 1000 mm of armor. Like Almas 1, this missile can be fired from ground and air launchers.
Almas-2 missile test
Almas-3 missile: Almas 3 missile is the latest and newest version of the Almas family of missiles. Almas-3 is larger than Almas 1 and 2 and seems to have been sampled from the Spike ER missile. Considering that the configuration of Almas 3 and Spike ER are very similar to each other, it is likely that their specifications are also close to each other. Hence, Almas-3 probably has a range of about 10 km. The warhead of this missile is a two-stage high-explosive or thermobaric type, and it uses an infrared and electro-optical seeker for guidance and has the ability to penetrate 1000 mm of armor. Also, if the fiber-optic wire is replaced with RF link to guide this missile and fire it from aircraft, a range of about 16 km is envisioned for the Almas-3 missile.
Almas-3 and Almas-2 missiles in the backgroundAlmas-3 missile under the wing of Mohajer-10 drone
In the picture below, you can see the family of Almas missile in a frame. From left to right, the missiles are Almas-1, Almas-2 and Almas-3. In this picture, the similarity of appearance and dimensions of Almas 1 and 2 variants and the difference of their dimensions and appearance with Almas-3 missile are clearly visible.
From left to right, Almas-1, Almas-2 and Almas-3 missiles
Almas missile specifications: Type: Air-to-surface and surface-to-surface anti-armor missile Length: 1100 mm Almas1&2 – 1600 mm Almas3 Diameter: 130 mm Almas1&2 – 170 mm Almas3 Range: 4 km Almas1 – 8 km Almas2 – 10 km Almas3 Weight: 15 kg Almas1&2 – 34 kg Almas3 Warhead: tandem-charge high-explosive/thermobaric Armor penetration rate: ~ 600 mm (Almas1), ~ 1000 mm (Almas2&3) Engine: Solid-propellant rocket Guidance: Infrared homing (IIR) and electro-optical Launch platform: ground-based launchers and aircraft Origin: Iran

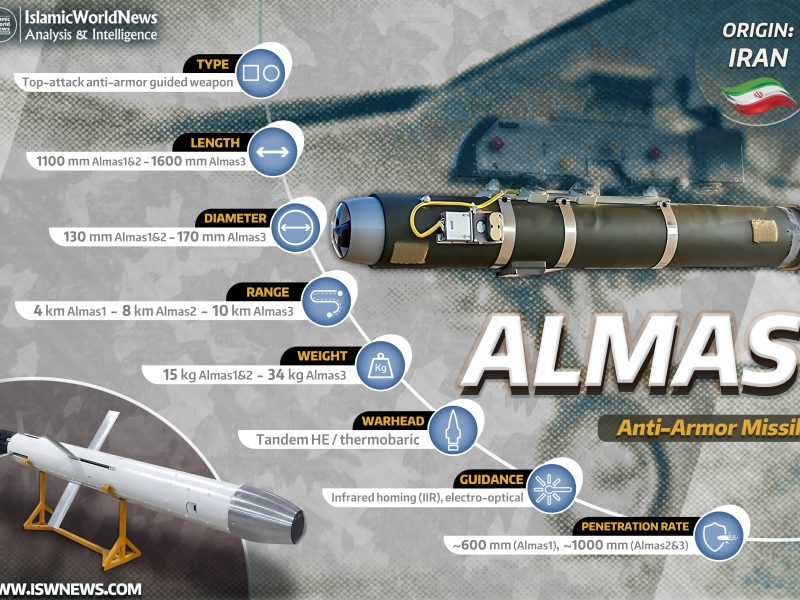

Almas Anti-Armor Missile – click to view full sizeAlmas missile – click to view full size
Infographics of Almas missile in Russian, Farsi, Arabic and Hebrew:
Brigadier General Yahya Saree, the spokesman of the Yemeni armed forces, announced in a statement that the Yemeni navy attacked a British oil ship called MARLIN LUANDA in the Gulf of Aden using several naval missiles.

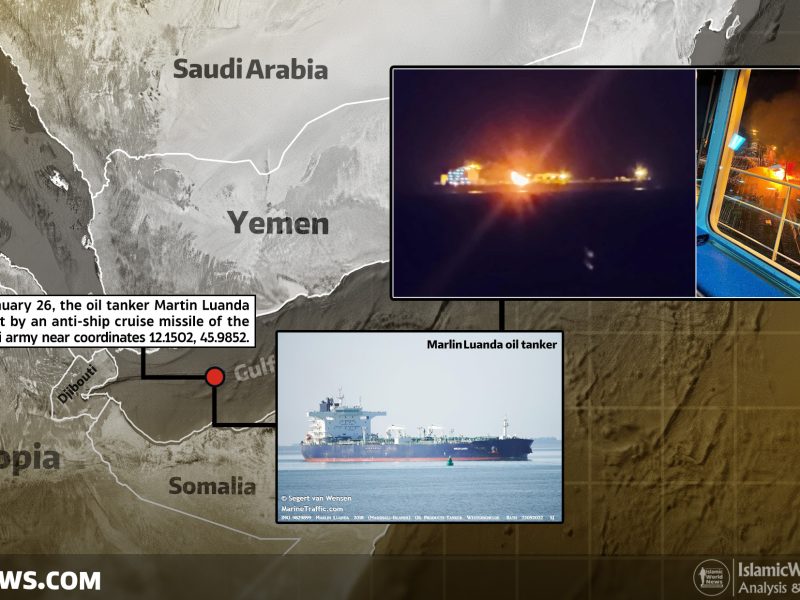

As a result of the missiles directly hitting the Marlin Luanda oil tanker, this British ship suffered a fire and significant damage. The U.S. Central Command also confirmed this news and added that a Houthi (Ansar Allah) missile damaged the mentioned oil tanker, but no casualties were reported.
The Marlin Luanda ship on fire after being hit by a missile
Trafigura company (the owner of this ship) in a report denied the sinking of Marlin Luanda oil tanker and the casualties in the missile attack. Trafigura announced that the ship’s crew, supported by US coalition warships, are trying to contain the fire.
The Yemeni armed forces emphasized the continuation of operations in the Red and Arab seas against Israeli ships or Israeli-linked ships bound for occupied Palestinian ports until the end of the aggression and the delivery of food and medicine to the Gaza Strip. The spokesman of the Yemeni armed forces also clarified that all their military actions were carried out within the framework of the right to defend Yemen and practical solidarity with the Palestinian people.
Statement of the Yemeni Armed Forces regarding the attack on MARLIN LUANDA tanker
In response to this attack, on the morning of Saturday, January 27th, the US fighter jets bombed the Ras Issa area in the north of Hudaydah city twice. The US military claims that this airstrike destroyed an anti-ship missile ready to be launched on the shores of the Red Sea.
Marlin Luanda is a British oil tanker that has been operating under the Marshall Islands flag since 2018. The action of the Yemeni army against the British ships was carried out after the authorities of this country, in addition to participating in the American coalition against Yemen, adopted harsh positions against Ansar Allah and the Yemeni National Salvation Government.

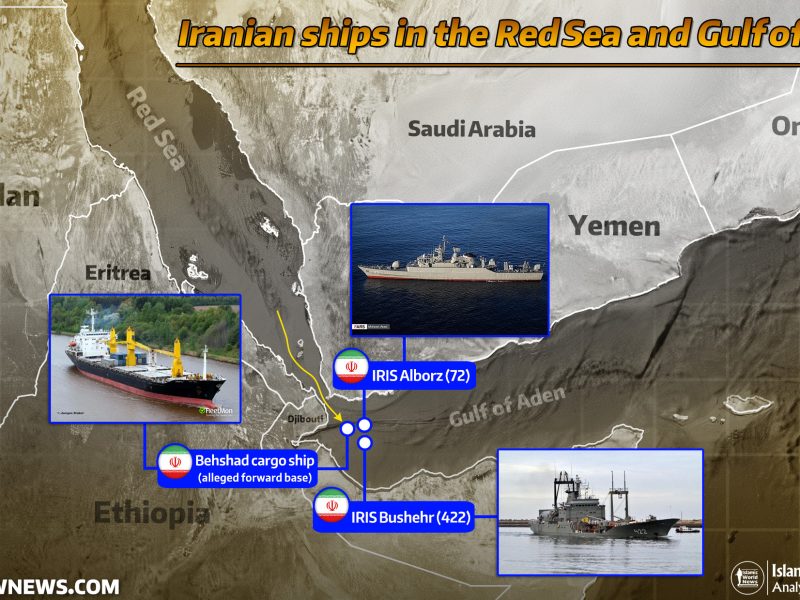

At present, the general cargo ship Behshad (MV BEHSHAD), the logistics frigate Bushehr (IRIS BUSHEHR – 422), and the Alborz frigate (IRIS ALBORZ – 72) belonging to the Iranian Navy are stationed in the waters of the Gulf of Aden and near the Bab al-Mandab Strait.
Western media outlets and analysts also claim that this naval fleet is behind all missile and drone operations by the Yemeni armed forces, and provides intelligence support for their operations against Israeli ships and the maritime forces of the US-led coalition (Operation Prosperity Guardian). They also alleged that before the outbreak of war in the Gaza Strip, the Iranian naval fleet was in charge of backing Iran’s arms and guiding shipments to the Ansar Allah movement in Yemen.
Such claims are made at a time when the strategic naval groups of the Iranian Army have been tasked with securing and supporting Iranian and international ships in free waters since early 2009, following repeated piracy incidents against Iranian ships by Somali pirates. The dispatch of the Alborz frigate was aimed at countering potential threats against Iranian ships following intensified deployments of the US-led coalition warships in the Arabian Sea and the Red Sea. The issue of Iran’s arms shipments to Yemen has been among the main accusations leveled by the US-Saudi coalition in recent years, which have been ruled out by Iranian and Yemeni authorities time and again. Furthermore, the process of building and assembling missile and drone systems within Yemen has been confirmed and endorsed in numerous reports by military experts.
In general, the naval fleet of the Iranian Army has established a naval base in the waters of the Gulf of Aden and the Red Sea for years, and this is not a new development. The objective of Western media outlets’ propaganda campaign against Iran’s naval group is to justify the blows inflicted upon the United States and the Israeli regime by Yemeni armed forces during recent conflicts. They have directly attacked Yemeni positions and forces in three air and missile operations and have faced a broad missile and drone response along with a limited missile strike from the Ansar Allah movement. The United States’ authorities have not published any figures on their own casualties and losses, while some media outlets have reported the deaths or disappearances of two American soldiers (allegedly missing in Somali waters according to the US army) and damages by Yemeni missiles and drones inflicted upon two US and British vessels.
The naval fleet of the Iranian army in the Gulf of Aden and near the Strait of Bab al-Mandeb – click to view in full size
In 2015, the Israeli army ordered four Sa’ar-6 warships to Germany. Although this ship is generally known in the world as an Israeli warship, the Saar-6 class was built in Germany by the German company ThyssenKrupp Marine Systems based on the design of the German Braunschweig class warship. However, to adapt Israeli systems and missiles such as Barak-8 and the Iron Dome defense system (marine version), changes have been made on this corvette, and this part was done by Israel. It is said that the Israeli company Elbit Systems has been awarded the contract to design and build the electronic warfare suites for the ships.
In 2020, the first Saar 6 class warship named Magen was delivered to the Israeli Navy. Three more corvettes, OZ, Atzmaut and Nitzachon, were delivered during 2021 but were not operational. These four warships entered the service of the Israeli navy until 2023 and after the completion of various parts. Currently, these corvettes are the largest and most equipped warships in the service of the Israeli navy.
It should be noted that the Sa’ar 6 corvettes will complement the old Sa’ar 5-class corvettes. Sa’ar 5 corvettes have also been built in the United States of America in the past years on the order of the Israeli regime. Sa’ar 6 corvettes are larger than Sa’ar 5 corvettes and carry more missiles. Also, the radar cross section of Sa’ar 6 has been reduced.
Saar-6 corvette is 90 meters long, 13.2 meters wide (beam) and 21.5 meters high. Also, the displacement of this corvette is about 2000 tons and it has between 70 and 80 crew members.
Sa’ar 6 corvettes are armed with one Italian Oto Melara 76 mm cannon and two Typhoon 25 mm remote-controlled cannons. The Oto Melara cannon can engage surface targets, warships, air targets, and even missiles approaching the ship.
76 mm Oto Melara cannon
Sa’ar 6 is equipped with 16 Barak-8 air defense missiles LRAD version with a range of 70 km, 40 Iron Dome air defense missiles (C-Dome), 16 Israeli Gabriel Mark 6 anti-ship missiles with a range of 400 km or American Harpoon Block 2 with a range of 124 km. Also, a dual Spike-ER missile launcher and two 324 mm torpedo launchers are available in this vessel.
According to the missile systems installed in this warship, it can be seen that Sa’ar 6 is a defensive warship and is mostly used to protect other naval platforms or land installations against missile and air threats. Therefore, this warship will be used to perform maritime patrol duties to protect gas platforms, shipping lines and other strategic assets of the Israeli regime in the Mediterranean Sea and the Red Sea.
The hangar and helicopter deck at the stern can be used to accommodate a medium multi-mission maritime helicopter such as SH-60 Seahawk.
In terms of propulsion, Saar 6 light frigates use two MTU 20V 1163 TB93 diesel engines with a power of 9924 horsepower and a total of 19848 horsepower. With the help of these engines, Sa’ar 6 reaches a speed of 27 knots (50 km/h) and can travel up to 4,000 nautical miles (7,400 km).
In terms of radar, the ELM-2248 Multi-Function Surveillance, Track And Guidance Radar (MF-STAR) multi-function active electronically scanned array (AESA) radar on board the Saar-6-class corvettes will track enemy targets under severe environmental / jamming conditions with a 360° coverage. The maximum range of this radar is up to 450 km.
Multi-Function Surveillance, Track And Guidance Radar
Sa’ar 6-class corvette specifications: Type: Corvette Manufacturer: Germany (ordered by Israel) Commissioned: 11 November 2020 Crew: 70-80 Length: 90 meters Beam: 13.2 meters Height: 21.5 meters Draft: ~ 4 meters Displacement: 2000 tons Engine: 2 x MTU 20V 1163 TB93 diesel engine with a power of 9924 hp (total 19848 hp) Range: 4000 nautical miles (7400 km) Speed: 27 knots (50 km/h) Missile arsenal: 16 x Barak-8 surface-to-air missiles 40 x C-Dome air defense missiles 16 x Gabriel or Harpoon anti-ship missiles 1 x Dual Spike-ER missile launcher 6 x 324 mm torpedoes Guns: 1 x Oto Melara 76 mm main gun 2 x Typhoon 25mm gun Aircraft carried: 1 x SH-60 Seahawk Boats carried: 3 x speedboats or drone boats

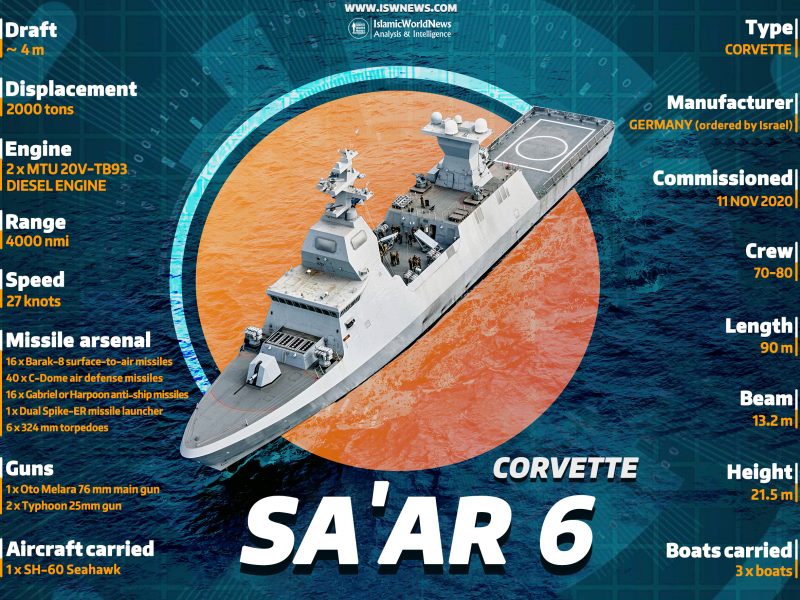

Sa’ar 6 corvette – click to view full sizeClick to view full size
Infographics of Sa’ar 6-class corvette in Russian and Farsi:
A loitering munition, also known as a suicide drone or kamikaze drone is a kind of aerial weapon with a built-in munition (warhead), which can loiter (wait passively) around the target area until a target is located; it then attacks the target by crashing into it. Loitering munitions enable faster reaction times against hidden targets that emerge for short periods without placing high-value platforms near the target area and also allow more selective targeting as the attack can be changed mid-flight or aborted.
History: The Harop suicide drone was designed and built by Israel Aerospace Industries (IAI) between 2001 and 2003. This drone was first publicly displayed in 2009 at the Indian Air Show. In the same year, the Indian Army signed a contract worth 100 million dollars to receive 10 Harop drones. The details of this contract have not been published. But the announced figure for each drone in this contract is 10 million dollars, which seems very expensive.
The multinational company MBDA showed interest in this loitering ammunition, but the contract was not concluded due to political reasons. Although the German version of the Harup was developed in collaboration with Rheinmetall Defense to meet the specific needs of the German military in 2009, this drone only progressed to the testing stage and was never put into operation by the German military.
Morocco, Azerbaijan and Singapore are other buyers of Harop suicide drones. This drone was used by Azerbaijan in the Nagorno-Karabakh war and destroyed several buses carrying Armenian forces. There are also evidences of targeting Armenian S-300 defenses in the Second Karabakh War.
Design: The Harop UAV is actually a developed version based on the Harpy suicide drone (IAI Harpy), which made its first flight in 1989. The Harop drone is designed and built with the same features as the Harpy.
Harpy drone at Paris Air Show 2007
Harop uses a carbon fiber body that reduces its weight and radar cross-section. The diameter of the nose is greater than the diameter of the body. A forward-looking infrared (FLIR) camera with automatic tracking and 360 degree rotation is installed under the nose. The infrared camera is suitable for use at night and day and in all weather conditions such as fog and dust.
The camera used in the Harop drone
The nose has a very large empty space that allows the installation of a camera and some guidance equipment. There are two fins on the upper part of the nose. These fins provide enough lift for this heavy nose.
The empty space in the nose to install communication equipment, cameras and fins
The wing is designed as a trapezoid and extends from near the nose to the end of the body and is connected to the main cylindrical body. The wings are thinner at the end of the body and are designed perpendicular to the body to create the maximum lift force. This part of the wing is made with the ability to be folded so that the drone can be placed in special rectangular launchers.
Two vertical fins with the ability to rotate are placed at the end of the body and on the wing, which provides the possibility of changing the direction of the drone during flight.

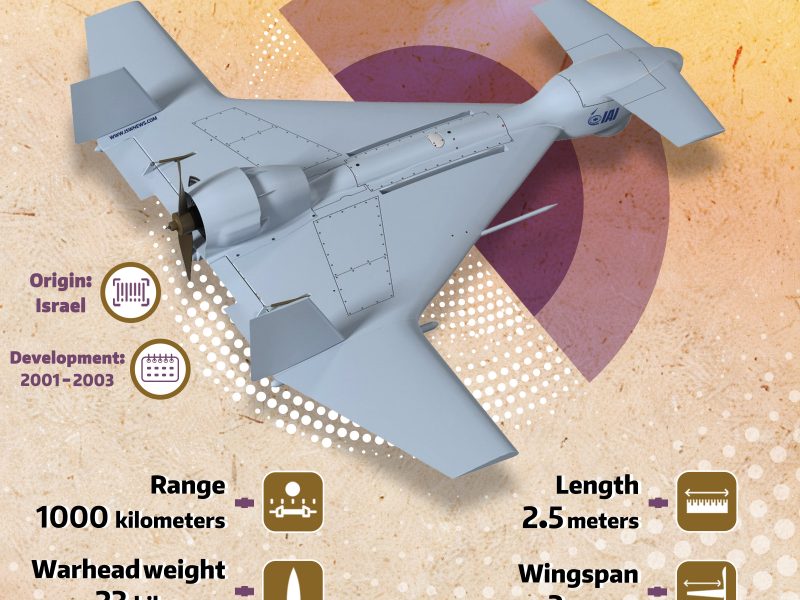

Harop drone
One of the Harop launcher systems is a box launcher that is placed on a commercial truck or any other truck. The wings of the Harop suicide drone fold down to fit into the box. In this way, the drone occupies the least possible space.
Harop drone launch from MAZ-631705 truck in the service of Azerbaijan army. In this picture, it is clear how the wings are folded
A solid fuel booster is used to launch the Harop in the first stage, which allows the Harop, and after reaching a sufficient height and speed, the UAV’s main engine is activated.
The Harop UAV uses a Wankel MBT ENGINE H2251 engine, which is connected to a two-bladed propeller. This engine brings Harop to a maximum speed of 400 km/h and a maximum height of 4500 meters.
The wreckage of the Harop UAV that fell during the Second Karabakh War in the northern borders of Iran. On the engine, its type and name are known.
Harop suicide drone has a flight duration of 6 hours and a range of 1000 km. As mentioned, this drone is launched from land and sea from box launchers. But it is also possible to configure the drone to be launched from the air by aircraft.
The Haroop UAV uses the Human-in-the-Loop (HITL) method for guidance and targeting. In this method, crews work together with machines to perform tasks, combining their abilities to make the best results in every situations. New experiences and decisions are stored in the decision cycle to increase the autonomy of the UAV in similar conditions.
The operator can select static or moving targets detected by the UAV camera. It is also possible to select static targets before the operation and flight, by entering the target information into the system.
It should be noted that a smaller type of drone called Mini-Harop or Green Dragon has also been made with a flight duration of 2 to 3 hours and a warhead of 3 to 4 kg.
Mini-Harop drone
The Mini-Harop UAV, which uses an electric motor, is suitable for monitoring and targeting enemy personnel and equipment with a low level of protection. Considering the high price of each version of the Harop drone, the Mini-Harop seems to be built to fill the void of a low-cost drone and reduce operational costs for destroying less important targets.
Specifications of Harop suicide drone: Type: Suicide drone (loitering munitions) Manufacturer: Israel Aerospace Industries Origin: Israeli regime Development: between 2001 and 2003 Length: 2.5 meters Wingspan: 3 meters Range: 1000 km Communication range (ground station): 200 km Radar cross section: less than 0.5 square meters Speed: 400 km/h Flight ceiling: 4600 meters Flight endurance: 9 hours Warhead weight: 23 kg Weight: 135 kg
Harop Suicide Drone – click to view full sizeClick to view full size
Infographics of Harop loitering munitions in Russian, Hebrew, Farsi:
The statistics and details of the naval operations by the Yemeni armed forces against Israeli interests in the Red Sea and the Bab al-Mandab Strait are as follows:
1- Seizure of GALAXY LEADER vehicle carrier – November 19 – west of Hudaydah 2- Attack or rerouting of a ZIM container ship – November 25 – near Hanish Island 3- Missile attack on CENTRAL PARK oil tanker (US claim and Ansar Allah’s denial) – November 26 – Southwest of Aden 4- Missile attack on UNITY EXPLORER bulk carrier and drone attack on NUMBER 9 container ship – December 3 – Bab al-Mandab strait 5- Rerouting of two unknown ships after receiving warnings – December 8 – Red Sea 6- Missile attack on Norwegian STRINDA oil tanker – December 12 – north of Bab al-Mandab 7- Missile attack on two unknown commercial ships (claimed by the US and Britain) – December 13 – Bab al-Mandab Strait and west of Hudaydah 8- Drone attack on MAERSK GIBRALTAR container ship – December 14 – north of Bab al-Mandab 9- Missile attack on MSC ALANYA and MSC PALATIUM III container ships – December 15 – west of Al-Mukha 10- Drone attack on SWAN ATLANTIC oil tanker and MSC CLARA container ship – December 18 – Bab Al-Mandab Strait
Among the outcomes of these operations against Israeli shipping, there are significant financial losses inflicted on Israeli companies and economic ministries, a reduction in the activity of Israeli ports, and the halt of Israeli ships’ passage through the Red Sea, among many other consequences. These attacks have also led to the suspension of cooperation with the Israeli regime by at least seven major shipping companies, which is of great importance.
The Bab al-Mandab Strait and the Red Sea are vital economic arteries, which the Ansar Allah movement and the Yemeni army have managed to control through their resistance and precise attacks. Yemen’s role in the resistance axis against the Israeli regime and its Western allies has become prominent to a certain extent, to the point where Western media have claimed that US officials have proposed halting the Yemeni forces’ attacks in exchange for achieving a ceasefire in the Gaza Strip and sending humanitarian aid through mediating countries.
The Stormer HVM system is a high-mobility short-range air defense system that combines the Alvis Stormer armored vehicle with the Starstreak short-range surface-to-air missile. This system is manufactured by the British company Alvis Vickers, now BAE Systems Land & Armaments.
The main role of the Stormer HVM is to protect ground forces and key installations against low-altitude fighter jets, helicopters and UAVs. This system is an important part of the British Army’s air defense system for the low-altitude air threats. The term HVM stands for High Velocity Missile and represents the missile used in the system.
Alvis Stormer armored vehicle
This car has a maximum speed of 80 km/h on the road. Also, having a fuel tank with a capacity of 454 liters, it can travel a distance of 600 km.
Starstreak HVM
The Starstreak air defense missile is a British short-range missile manufactured by Thales Air Defence in Belfast, Northern Ireland. This missile can be used as a man-portable air-defence system (MANPADS). Starstreak HVM has a range of 7 km and an altitude of fire of 5 km, and is capable of engaging various types of missiles, drones, helicopters and other low-altitude flying targets.
The missiles are placed on a turret with the ability to rotate 360 degrees, in number of 8 (4 on each side of the turret). In addition to eight missiles ready to fire, 12 other missiles are stored inside the vehicle for reloading. These missiles are sealed in the production line after preparation. STARStreak HVM is loaded into the system pod with the same factory seal.
Placing the missile in the Stormer HVM system
An Air Defense Alerting Device (ADAD) is also installed on the turret to detect air targets. This system uses an infrared thermal camera. The ADAD system can detect a fighter jet at a distance of 18 km and a helicopter at a distance of 8 km. Also, the system uses a laser range finder to accurately determine the distance to the target and guide the missile. In addition to ADAD, the Stormer HVM system is equipped with an advanced day and night vision camera that enables thermal imaging for low-light conditions. In some systems, a laser range finder is used to accurately measure the distance to ensure accurate missile guidance.
ADAD system and day and night vision
The Alvis armored vehicle is equipped with eight smoke grenade launchers (four on each side). These grenades are used to create a smoke screen. The Stormer HVM air defense system uses a communication system that allows the crew to communicate with other air defense units and the chain of command. This system uses three crews including commander, driver and gunner.
In addition to the STARStreak missile, there are also reports of using the Martlet missile on this missile. The manufacturer of two missiles is Thales Air Defense and the coordination of the system with this missile is likely.
Internal view of the Stormer HVM in service with the Ukrainian Army
This system has been exported to Oman to serve in the Royal Army of this country. Indonesia is another user of this system. Also, in 2023, a number of this system has been donated to Ukraine.
Specifications of Stormer HVM system: Type: Short-range defense system Manufacturer: Missile: Thales Air Defense – Armored Vehicle: BAE Systems Land & Armaments Origin: United Kingdom In-service: 1997 Length: 5.6 meters Width: 2.8 meters Height: 3.4 meters Crew: 3 Carrier vehicle: Alvis Stormer Weight: 13.5 tons (the whole system) – 20 kg (missile weight) System range: 7 km Target detection: Air Defense Alerting Device (ADAD) Detection range: 8 to 18 km (depending on the type of target) Engagement range: 7 km Armament: 8 ready-to-fire missiles and 12 stored missiles Missile: STARStreak HVM Missile length: 1.4 meters Missile diameter: 13 cm Missile weight: 14 kg Missile range: 5.5 to 7 km (depending on the type) Altitude of fire: 5 km
Stormer HVM air defense system – Click to view full size imageClick to view full size image
Infographics of Stormer HVM system in Russian, Farsi and Azeri:
In the past 70 days, as a result of the Israeli regime’s attacks on the Gaza Strip, more than 18,787 Palestinians, including 7,870 children and more than 6,000 Palestinian women, have been killed, and more than 50,897 others have been injured. However, during the 660 days of the war between Russia and Ukraine, more than 10,749 civilians and about 550 children have lost their lives.
In other words, the number of civilian casualties in Gaza in just 70 days has been higher than the entire Russia-Ukraine war in 660 days!!
The World Health Organization (WHO) had announced a few days ago that about five children in Gaza are killed every hour.
The comparison of the number of children and women killed in the Gaza war with the conflict in Ukraine clearly indicates the extent and severity of the heinous crimes of the Israeli regime against the people of Palestine and is a clear example of the inefficiency of the United Nations.
