    The Zhubin, also known as the Fateh, can be described as a mature and efficient product. It was first publicly showcased during a training exercise in 2022 and entered mass production for the Army Ground Forces in 2024.

    This drone features a standard aerodynamic design characterized by an elongated dolphin-shaped body, flat trapezoidal wings, and a V-shaped tail. The body length is 120 cm, and each wing measures 70 cm, resulting in a total wingspan of 140 cm.

    The wings have a trapezoidal shape, which means their width tapers from the root to the tip. This design is commonly employed to evenly distribute air pressure across the wings and optimize lift. However, the reduction in width on the Zhubin drone is minimal and not immediately noticeable. Additionally, the wings are designed to integrate smoothly with the fuselage at a gentle angle, emphasizing stability at medium speeds. The seamless connection of the wings to the fuselage, likely utilizing “Blended Wing Body” techniques, reduces aerodynamic drag and enhances lift.

    Wings in Zhubin drone

    The dolphin-shaped design of this drone is based on streamlined principles to minimize both shape resistance and surface friction. The body tapers in diameter toward the rear, contributing to its aerodynamic efficiency. Its soft curves and absence of sharp corners along the body, wings, and tail reflect a commitment to biomimicry.

    While we cannot definitively identify the material used for the body, indications such as the type of molding and the smooth surface suggest that it is likely made from carbon fiber or fiberglass composites.

    Overall, the Zhubin drone has a relatively low mass of 6.3 kg. This lightweight design enables it to be powered by a low-power electric motor, allowing for flight durations of up to 30 minutes and altitudes of up to 200 meters.

    The nose of this drone features a unique quasi-conical and modular design. This design allows for the accommodation of various types of warheads, including penetrating and fragmentation options, since the drone’s nose is where the warhead is located. The Fateh drone is equipped with a 500-gram warhead made up of small fragments, making it effective for targeting unprotected groups of personnel and equipment.

    The Zhubin features a unique launch method. It is launched using a small pneumatic launcher with a metal base. The components of this launcher include a control module, a hollow metal rod, a pressure regulation system, and a gas cylinder. There is an empty space at the bottom of the drone’s body, just below the engine. During the launch, the launcher’s hollow metal rod is inserted into this space, and high-pressure gas is released to provide the necessary propulsion force for the drone’s initial acceleration. The gas is supplied by small, reusable capsules.

    A special variant of the Zhubin drone has been developed with the capability to be fitted with optical seekers, featuring television lenses in its nose. While specific information about this version’s performance is limited, some visible features include two linear radio antennas and a rotating satellite receiver mounted on top of the fuselage.

    The drone operates using an inertial-satellite guidance system, which may result in target destruction accuracy of up to a few meters. In contrast, the television guidance version offers much greater precision by transmitting images directly to the operator. The stated operational range of this drone is approximately 20 kilometers. However, this range is primarily constrained by radio frequency limitations. With an enhanced guidance system, it could potentially achieve a range of over 30 kilometers.

    One of the relatively interesting things about the Zhoubin drone was the flight of its prototype from a Fateh-class submarine of the Iranian Navy.

    Launch of a Zhubin drone from a Fateh-class submarine

    The Zhubin drone shares many similarities with the Warmate drone. In fact, the Zhubin can be regarded as a successful variant of the Polish Warmate, which has had a notable impact in Ukraine. The Warmate is a type of suicide drone featuring an electric motor and a modular warhead. It is designed and manufactured by WB Electronics, a subsidiary of the WB Group.

    The drone entered the initial production phase in 2016 and was officially adopted by the Polish Armed Forces in the fall of 2017. The primary purpose of the Warmate is to serve as a lightweight, precise, and flexible weapon for close-quarters operations, emphasizing the identification and targeting of various objectives on the battlefield.

    The Warmate drone has been in development since 2010, with the initial version unveiled in 2014. In 2017, the Polish army placed an order for 10,000 units valued at $20 million. The first batch was delivered in 2018 and was immediately deployed in the Ukrainian campaign starting in 2022. Other known customers for this drone include the United Arab Emirates, India, and South Korea.

    Specifications for the Warmate drone include a flight endurance of one hour, an operational range of 30 kilometers, a length of 1.1 meters, and a wingspan of 1.6 meters.

    Overall, the Warmate family serves as a strong model for the continued development of the army’s Zhubin family. The Warmate has various versions, including a launch pod with movable wings that can be kept ready for a long time. This version would be suitable for equipping armored and tactical vehicles.

    Conclusion:

    Suicide drones, such as the Zhoubin, serve a crucial role on modern battlefields as loitering munitions and offer several advantages for tactical operations. With their lightweight and portable design, these drones can easily be transported by ground forces—two people can carry them in a backpack and quickly prepare them for use on the battlefield. Their low mass and straightforward setup allow for rapid deployment in operational conditions, which is essential for responding to sudden threats.

    One of the most significant advantages of the Zhubin drone is its ability to hover over target areas. It can remain airborne for an extended period, identify targets, and attack them with high precision. This feature, combined with the capability to fly in groups, makes the Zhubin particularly effective in destroying moving or concealed targets, such as artillery pieces, bunkers, or concentrations of troops. Additionally, the drone can carry a variety of warheads—including fragmentation, thermobaric, armor-piercing, and explosive warheads—providing great flexibility for different mission requirements.

    The cameras mounted on the drone’s nose enable live image transmission to the operator, enhancing detection and targeting accuracy. Ground control systems, using encrypted communication, ensure operational security and allow for real-time mission adjustments or target changes. Moreover, these drones have a lower operational cost compared to guided missiles and can operate in groups, increasing their effectiveness for detection and attacks on the battlefield. Ultimately, these drones are a powerful tool for military forces in both tactical and combat operations, combining accuracy, versatility, and affordability.

    Specifications of the Zhubin UAV (Fateh UAV):
    Origin: Iran
    Unveiled: 2022
    Length: 120 cm
    Wingspan: 140 cm
    Engine: Electric
    Range: 20 km
    Flight altitude: 200 m
    Flight duration: 30 minutes
    Weight: 6.3 kg
    Warhead weight: 500 g
    Warhead type: Modular

    Zhubin suicide drone (Fateh suicide drone)

    A collection of Zhubin posters in Farsi, Russian, Arabic and Hebrew:

  • Military Knowledge: Raad Suicide Drones

    Military Knowledge: Raad Suicide Drones

    An overview of the Raad drone family

    The Raad family of drones is among the first Iranian unmanned munitions specifically designed for infantry use. These drones feature a standard aerodynamic design similar to other models like the Russian Lancet and the Israeli Hero. With a cylindrical body, two rows of wings, and electric propulsion, along with an electro-optical system integrated into the nose, the Raad drones have a familiar appearance.

    Read more: Military Knowledge: Lancet-3 Suicide Drone

    After modeling itself on Switchblade drones and developing an indigenous version called Meraj 521, the IRGC Ground Force has now also begun to explore the use of other prominent global models.

    Military Knowledge: Meraj-521 Loitering Munition

    Raad-1 drone:

    Currently, there are no available details regarding this drone, leaving its specifications and capabilities shrouded in mystery.

    Raad-2 drone:

    The Raad-2 suicide drone features a wingspan of 1.8 meters and a fuselage length of 1.5 meters. It is capable of flying for up to 17 minutes using an electric motor. With a declared operational range of 20 kilometers, the drone can achieve speeds estimated between 60 and 70 kilometers per hour. Additionally, the Raad-2 carries a 5-kilogram warhead, which can be fitted with various types of fragmentation or explosive warheads.

    It’s worth mentioning that prior to its official unveiling during the second phase of the Great Prophet-19 exercise in 2025, the Ra’ad-2 suicide drone was informally referred to as the Rezvan drone.

    Raad-3 drone:

    The Raad-3 drone has a mission similar to that of the Raad-2, but with some enhancements. It features an increased wingspan of approximately 1.85 meters and a slightly larger fuselage measuring about 2 meters in length. These larger dimensions, along with a more powerful engine, likely enable the drone to carry a greater energy storage capacity. As a result, its flight duration has been extended to 40 minutes, and it can now support a warhead weighing up to 12 kilograms.

    Despite the fact that the Raad family of drones, which have been produced in three versions so far, all use electric propulsion, their launching method is different.

    The Raad-2 UAV features a compact design with retractable wings, enabling efficient storage and launch from a cylindrical chamber. Its wings, each attached by a spring joint, are compressed towards the nose when in the chamber. Upon launch, a rocket booster propels the UAV out of the chamber, and the wings deploy by rotating 90 degrees. This innovative design allows the UAV to be stored and launched from a confined space using a hot gas blast.

    The moment the Raad-2 drone launches and exits the cylindrical chamber
    Launch of the Ra’ad-2 drone during the Great Prophet-19 exercise in 2025

    On the other hand, the box-launching capability of the Raad-2 UAV has enabled the development of multi-launchers for this drone. A specialized multi-purpose launcher has been created for both the Raad-2 and Ghaem-118 UAVs, allowing for the deployment of up to 8 box launchers on Toyota tactical vehicles as well as on the Aras family of vehicles.

    Ra’ad-2 multiple launchers on a tactical vehicle

    Unlike the Raad-2, the Raad-3 features fixed wings and is launched from a rail with the assistance of a rocket booster. The use of rail launchers to provide initial acceleration for drones is common, utilizing hydraulic, pneumatic, or JATO (Jet-Assisted Take-Off) systems. This approach is seen, for example, in different variants of the Russian Lancet-E and other similar drones.

    Raad-3 drone launched from the rail

    The Raad family of drones is equipped with an electro-optical system located in the nose, likely a simple and cost-effective type of television camera. This capability allows the drone to transmit images to the operator via radio communication with low latency. Consequently, the operator can use these images to identify the environment or make decisions about targeting specific objectives.

    It is expected that Raad drones, similar to their foreign counterparts, will eventually be capable of being outfitted with more advanced and multifunctional electro-optical systems, such as thermal or semi-visible cameras for nighttime operations. However, there is currently no official information confirming this.

    Regardless, it is evident that the development of loitering ammunition for infantry and special forces is crucial on modern battlefields.

    Raad-3 UAV Electro-Optical System

    In modern warfare, mobility has become a fundamental principle in the design of ground combat systems. Enhancing the survivability of weapons on the battlefield—especially against enemy counterfire and other threats—demands agility and rapid movement. In this context, mobile multiple rocket launcher systems (MLRS) and self-propelled guns equipped with automatic loading systems are effective weapons. They enable precise and rapid attacks while allowing for immediate repositioning after each operation. This strategy not only boosts firepower but also decreases the likelihood of detection and destruction by the enemy, which is crucial in dynamic, rapid-response combat scenarios. Thus, the significance of the Ra’ad family of drones can be understood within this framework.

    Raad-2 and Raad-3 suicide drones

    It is important to note that, in addition to the Raad family of drones, the IRGC Ground Forces also utilize another similar type of drone known as the Saeqeh family. According to available information, this family was produced as a more cost-effective option and comes in three versions.

    The Saeqeh-1 drone has a flight endurance of 30 minutes and an operational range of 20 kilometers, with the capacity to carry a 1-kilogram warhead. At least in the Saeqeh-1 version, this family of drones is equipped with only a small fixed forward-looking camera located in the nose.

    Saegheh-1 drone

    The concurrent development of these two families of drones raises questions about their roles within the IRGC Ground Forces combat organization. One key question is whether these drones can operate in a network-based manner. This would allow an operator to simultaneously control multiple drones, utilizing one Raad family drone for reconnaissance while deploying several Saeqeh drones for attack missions.

    Today, loitering munitions have evolved beyond their traditional roles, becoming essential in both offensive and defensive missions, including the suppression of enemy air defenses (SEAD). Recent conflicts in the Middle East and Ukraine have underscored the need for tactical advancements that meet infantry requirements, and this has become a pivotal focus for enhancing combat effectiveness. The Iranian armed forces have keenly recognized this trend, dedicating significant attention to developing new technologies and operational capabilities. Notably, this includes innovations such as the Ra’ad and Sa’eqeh suicide drones from the IRGC Ground Force, showcasing a commitment to advancing military strategies. It’s exciting to see how these developments can shape future operations and strengthen Iraninan defense systems!

    The history and evolution of loitering ammunition:

    The concept of “loitering” was first introduced in the military field in the early 1980s. It emerged in response to the widespread development of mobile air defense systems in the Soviet Union and, subsequently, in Eastern Bloc countries. Systems like the SAM-6 (SA-6 Gainful) challenged the doctrine of Western air superiority because, unlike traditional fixed defense systems, they were not permanently stationed in one location. Instead, these mobile systems were activated only when a threat arose and then concealed again after completing their mission.

    At that time, advanced reconnaissance technologies such as modern drones and imaging satellites with today’s capabilities did not exist. Existing spy planes were limited to the technology available during that era. Consequently, detecting mobile defense systems became one of the most challenging military problems.

    SAM6 air defense system mounted on an armored chassis

    For this reason, the United States, as one of the two main poles of the Cold War, along with the Zionist regime, which was involved in severe conflicts with Arab countries at that time, sought to develop weapons that could remain in the operational area for an extended period after launch. These weapons were designed to eliminate targets as soon as they were identified, unlike conventional air-launched or cruise missiles.

    The roots of this strategy can be traced back to the painful experiences of Israeli forces during the Yom Kippur War, where they faced the Soviet-made defense systems of Syria and Egypt. However, new tactics were quickly implemented during Operation Mole Cricket 19 in 1982, aimed at suppressing Syrian air defenses. In this operation, a significant number of unmanned aerial vehicles were used as bait to provoke ground-based defense systems, creating opportunities for the use of anti-radar weapons.

    The successful results of this operation encouraged further investment in drones and loitering munitions throughout the 1980s.

    The Harpy drone, which is based on the South African ARD-10 Lark, along with the American Tacit Rainbow anti-radar missile, were some of the earliest weapons to have this capability in the 1980s. These weapons could essentially “scroll” through the sky to identify and destroy targets at the appropriate moment. However, due to the absence of advanced optical sensors, complex image processing algorithms, and limited radio and satellite communications, these weapons relied heavily on anti-radiation seekers.

    Read more: Military Knowledge: Harop Suicide Drone

    As the 2000s progressed, the limitations of loitering munitions diminished, allowing their role to expand beyond suppressing enemy air defenses (SEAD). The integration of electro-optical systems with advanced image processing and sensors shaped the modern concept of these drones. A notable example is the transformation of the Harpy drone into the Harop. While militaries worldwide began to adopt drones during this period, the focus largely remained on cruise missiles and air-launched weapons. However, this perspective shifted significantly over the following two decades.

    The evolution of loitering munitions advanced with the creation of special forces and infantry versions, emphasizing drone miniaturization to reduce mass and occupied space. This allowed for faster transport and deployment by infantry. Traditional aerodynamic designs like delta wings proved less effective, prompting the exploration of unconventional alternatives. During the 2000s, the United States experimented with small-sized battlefield drones through projects like GLUAV, CCLR, and SBIR, which largely met with limited success. However, these efforts culminated in the development of the Switchblade Block-0 drone in 2004.

    Read more: Military Knowledge: Switchblade Loitering Munition

    Switch-blade drone

    Besides the Switchblade, the Hero series of drones, developed by Israel’s UVision Industries, was among the earliest operational models in this category. Established in 2011, UVision introduced the innovative X-wing design, which has since become a widely adopted standard across various drone manufacturers.

    Hero-30, Hero-120 and Hero-400 drones

    Raad drone posters in Farsi, Russian, Arabic and Hebrew:

  • Iran Unveils New Jet Suicide Drone: Dalahu (Hadid 110)

    Iran Unveils New Jet Suicide Drone: Dalahu (Hadid 110)

    It is worth noting that this drone, initially introduced as the Hadid-110 at the IRGC’s military achievements exhibition, officially entered the IRGC Ground Forces’ combat organization as the Dalahu drone on February 19, during the second phase of the Great Prophet 19 exercise.

    Unveiling of the Hadid 110 Jet Suicide Drone at the Iranian Military Achievements Exhibition, known as Eghtedar-1403

    The Hadid 110 or Dalahu drone is equipped with a mini jet engine and is launched by a rocket booster, similar to other conventional suicide drones.

    It features a delta wing configuration and a design with sharp edges to reduce its radar cross-section.

    According to provided information, the Dalahu drone’s mini-jet engine gives it a cruise speed of 510 km/h, a range of 350 km, and a flight ceiling of 30,000 feet. The drone’s warhead weighs 30 kg and it has a flight endurance of 1 hour.

    Unveiling of the Hadid 110 or Dalahu Jet Suicide Drone
  • Military Knowledge: Ababil-5 Reconnaissance Combat Drone

    Military Knowledge: Ababil-5 Reconnaissance Combat Drone

    During a parade held on April 18th, 2022 in Tehran, a new drone called “Ababil 5” (also known as Ababil-V or AB-V) was revealed to the public. Prior to this event, no official information about the Ababil 5 drone had been released. Although the exact specifications of the Ababil-5 drone have not been officially disclosed, we will analyze the available footage to review its specifications and features in this article.

    The aerodynamic design of this UAV is generally akin to that of the Mohajer-6. While the Mohajer-6 features a High Boom Tail configuration, the Ababil-5 employs a Boom Tail configuration. This design choice not only shortens the runway length needed for landing and takeoff but also enhances the drone’s ability to perform more intense maneuvers.

    Types of aircraft tail configurations

    The body of this drone has sharp angles and lines, which are clearly designed to reduce the radar cross section from the front, i.e., when the bird is approaching the radar.

    Sharp angles and lines

    Considering the dimensions of the truck floor, the Ababil-5 drone is estimated to have a wingspan of approximately 12 meters.

    Ababil-5 estimated wingspan

    The Ababil-5 boasts a wingspan that is 20% larger than that of the Mohajer-6. This increase in wing area allows for a greater cargo mass, enabling the Ababil-5 to carry six Qaem-1 bombs, compared to the Mohajer-6, which can carry up to four bombs.

    The landing gear is designed to retract, which helps to reduce drag and minimize the radar cross-section. This reduction in drag, facilitated by the retractable landing gear, enhances the UAV’s cruise speed, flight endurance, and range.

    Another reason for incorporating retractable landing gear at the front of the body is to prevent obstruction of the electro-optical’s view. If the camera system were placed in front of the landing gear, as seen in the Mohajer-6, the increased distance from the drone’s center of mass would require additional balance weight, potentially affecting the drone’s performance. Therefore, retractable landing gear is utilized to avoid these issues.

    Ababil-5 front wheel landing gear

    The rear wheel landing gear is fixed type. According to the published images, the base of the rear wheels are connected to each other by a wire, which limits the amount of final bending of the landing wear during landing and prevents the body from hitting the runway surface.

    Ababil-5 rear wheel landing gear

    When it comes to weaponry, the Ababil-5 has been observed equipped with Qaem Glide bombs, Almas missiles, and Arman-1 bombs. This drone is capable of carrying six Ghaem-1 bombs and four Ghaem-5 bombs.

    Read more:
    Military Knowledge: Qaem Smart Bombs
    Military Knowledge: Almas Missile

    Given that the Ababil-5 has been adopted by both the Iranian Army and the IRGC, and considering it is manufactured by the Iran Ministry of Defense, there’s a possibility that the ammunition used in the Mohajer-6 could be compatible with the Ababil-5, due to the similarity of some of their components.

    Carrying a larger number of bombs or cargo effectively increases the lethality of the UAV, and economically, it destroys targets with fewer sorties and hunts targets at a lower cost. Also, reducing the number of flight sorties can be important both in terms of maintenance and increasing the operational rate of the fleet.

    In terms of camera system, the Ababil-5 drone can be equipped with a more advanced electro-optical system, in addition to using older electro-optical systems such as the Eagle 4 models. This advanced camera features at least 60x zoom capabilities, along with a thermal imaging camera and a laser rangefinder.

    Ababil-5 electro-optical system
    During the 1402 Joint Drone Exercise of the Islamic Republic of Iran Army, the Ababil-5 drone was used to observe an Arleigh Burke-class destroyer in the Indian Ocean for four hours

    This drone is powered by a piston engine. Images from the NAZAJA exercise in February 2024 reveal that the Ababil-5 is equipped with a Rotax 915 iS engine or a similar model. The Rotax 915 engine delivers up to 141 horsepower at its peak performance.

    Overall, Rotax engines are commonly employed in many Iranian drones. Due to sanctions targeting Iran’s military and aviation sectors, direct procurement from Rotax is not feasible. Consequently, to cater to the varied requirements of drones in Iran, numerous components of different Rotax engines have been domestically produced, with some models achieving a complete localization rate of 100%.

    With the Rotax 915 iS engine, the Ababil-5 achieves a flight ceiling of approximately 7,000 meters (23,000 feet) and a speed of around 210 kilometers per hour. Its maximum takeoff weight is estimated to be about 1,000 kilograms.

    The Ababil-5 drone boasts a flight duration of 12 hours in combat mode, and up to 24 hours in reconnaissance mode without a combat payload. It has a maximum range of up to 2,400 kilometers.

    Video showcasing the Ababil-5 drone’s performance during the Islamic Republic of Iran Army Ground Forces exercise in February 2024

    Ababil-5 UCAV specifications:
    Length: ~ 8 meters
    Wingspan: ~ 12 meters
    Maximum range: up to 2,400 kilometers
    Flight ceiling: 7,000 meters
    Flight endurance: 12 hours combat – 24 hours reconnaissance
    Engine type: Rotax 915 – 141 horsepower (at its peak)
    Speed: 210 km/h
    Hardpoints: 2, with the ability to carry 6 missiles and bombs
    Maximum takeoff weight: ~ 1,000 kilograms
    Weapons payload: up to 150 kilograms
    Origin: Iran

    Ababil-5 UCAV – Click to view full size

    More images of Ababil-5 drone:

    “Ababil 5” UAV poster collection in Farsi, Russian, Arabic, Chinese and Hebrew:

  • 1,000 Drones Integrated into the Iranian Army

    1,000 Drones Integrated into the Iranian Army

    Based on the released images, the following drones were delivered to the Iranian Army:

    ▫️Ground Forces (NEZAJA): Ababil-5, Mohajer-6, Arash-1, Arash-2, Omid drones
    ▫️Air Force (NAHAJA): Kaman-12, Kaman-99, Karrar, Arash-1, Arash-2, Mohajer-6, Ababil-3 drones
    ▫️Navy (NEDAJA): Karrar, Ababil-5, Ababil-3, Arash-1, Arash-2, Bawar-5 (Ababil-2 suicide bomber)
    ▫️Air Defense Force (NEPAJA): Arash-2 drones

  • Military Knowledge: Shahed-238 Suicide Drone; Advanced Version Of Shahed-136 Equipped With Jet Engine

    Military Knowledge: Shahed-238 Suicide Drone; Advanced Version Of Shahed-136 Equipped With Jet Engine

    The Shahed-238 suicide drone was first unveiled informally in October 2023 in the Parchamdar (Flagship) Documentary. This drone has a similar platform and the same dimensions to the Shahed-136, but the fundamental difference is the use of a mini-turbojet engine instead of a piston engine.

    The Shahed-136, despite its low radar cross-section (RCS), due to its piston engine, low speed, and distinctive loud noise, provided the enemy’s air defense systems and even ground forces with enough time to identify it. However, the use of a turbojet engine in the Shahed-238, while increasing the speed and reducing the noise, along with the drone’s specialized airframe, provides much better protection against heavy machine guns and anti-aircraft cannon, improving the overall success rate of the drone.

    Read more: Military Knowledge: Shahed-136 Loitering Munition

    A video of the flagship documentary in which the new version of Shahed-136 (now, known as Shahed-238) with micro-turbojet engine can be seen.

    Examination of the available turbojet engines produced in Iran, as well as images of the Russian version of this drone from the Ukraine war, suggests the likelihood of using the Toloue-10 engine on the Shahed-238 drones.

    The Tolou-10 turbojet engine with a thrust of 1100 to 1200 Newtons increases the speed of the Shahed-238 to 500 to 600 kilometers per hour.

    The change in propulsion and engine design increases the weight of the drone. The piston engine MD550 or a similar engine used in the Shahed-136 weighs 17.59 kilograms, while the Toloue-10 turbojet engine weighs around 20.5 kilograms. Additionally, the placement of the micro-turbojet engine within the airframe reduces the space available for carrying fuel. Modifications have also been made to the upper part of the fuselage to accommodate the air intake, which further increases the weight and reduces the drone’s fuel carrying capacity. The fuel type has also been changed from gasoline to Jet-A, primarily due to the fuel requirements of the new engine.

    All of these factors, in addition to the increased speed, mean a reduction in the endurance of this drone. It is worth noting that with the changes made, the maximum takeoff weight has increased from 250 kilograms to 380 kilograms.

    Air intake for the micro turbojet engine in the Shahed-238 drone

    This is not the first time the Toloue-10 engine has been used in Iranian drones. In the past, the Toloue-10 engine had also been used on the Shahed-191 drone.

    Read more: Military Knowledge: Shahed 171 (Simorgh) And Shahed Stealth Drones Family

    The use of a jet engine, while turning the Shahed-238 into a fast suicide drone, also has its disadvantages. The piston engine of the Shahed-136 has a very low thermal signature, which made it difficult for infrared-guided missiles like shoulder-launched missiles to lock onto the drone. However, with the change from a piston to a jet engine, more heat is generated, making it easier for infrared-guided missiles to lock onto the drone.

    Shahed-238 variants:

    The jet-powered Shahed-238 suicide drone has been displayed in three classes so far: a basic and standard model, a model equipped with an imaging infrared (IIR) seeker in the nose, and a model (possibly) equipped with a passive anti-radar seeker.

    From right to left: the model equipped with an imaging infrared seeker in the nose, the basic and standard model, and the model equipped with a passive anti-radar seeker.

    The standard version of the Shahed-238 drone, like the Shahed-136, is equipped with inertial and satellite guidance and is used to attack fixed ground targets.

    The model equipped with a thermal seeker is guided by inertial and satellite navigation to the target area and uses the seeker in the final dive phase to select and lock onto the target. The use of the imaging infrared seeker in the nose significantly increases the accuracy and allows the drone to be used against moving targets as well.

    Shahed-238 equipped with thermal seeker

    The model equipped with a passive anti-radar seeker is used to suppress the enemy’s radar systems. In this version, the drone enters the target area using inertial and satellite guidance, and then the anti-radar seeker, after detecting radar signals, locks onto the enemy’s radar systems or radio towers and attacks them.

    Shahed-238 equipped with anti-radar seeker

    It should be noted that the leaked documents show that a drone similar to the Shahed-238, which has been supplied by Iran to Russia and is being produced in that country, is known as the M-237 in the Russian Federation.

    After the release of these documents, due to the presence of thermal seekers in the Russian drones, some people mistakenly thought that this drone was a new and different version of the Shahed-238, and therefore the name of the Iranian drones equipped with thermal seekers is also Shahed-237. However, it should be noted that according to the official information published by Iran, the official name of all versions of this drone is the Shahed-238, and only the exported or licensed version is known as the M-237, which can be renamed again in the destination country. Changing the name of exported weapons is a common and normal practice in Iran’s military industries.

    All the information published in these documents is almost completely consistent with the information presented on the banner of the Shahed-238 drone at the Iranian National Aerospace Park. But an interesting point that was not available before is that the thermal seeker-equipped version of this drone, in addition to the ability to attack ground targets, also has the ability to attack air targets such as drones. The leaked document shows that the Shahed-238, or the M-237, has locked onto a US MQ-9 Reaper drone.

    In addition to all the mentioned models, there is another version of the Shahed-238 drone that has been displayed in one of the promotional videos, but has not been exhibited in any exhibitions so far and no information about it is available. In this model, the Shahed-238 is equipped with an electro-optical camera under the nose. One can speculate that the features of this drone are similar to other Shahed-238 models, and the only difference is the version of camera. Therefore, this model, in addition to the capability of being a suicide drone, also has reconnaissance and surveillance capabilities, and helps the operator in selecting visual targets.

    Shahed-238 equipped with an electro-optical camera

    Due to the use of a jet engine and increased power, the flap actuators (high-lift devices) also need to be reinforced. For this reason, the Shahed-238 uses eight actuators on the wings, while the Shahed-136 had four actuators on its wings.

    The difference between the actuators in Shahed-238 and Shahed-136

    According to the available information, the maximum takeoff weight of the Shahed-238 drone is around 380 kilograms, and it is equipped with a 50-kilogram warhead.

    The launch and take-off method of the Shahed-238 drone is similar to the Shahed-136. This drone can be launched with the help of a vehicle or using a rocket booster (JATO). There are also speculations about the launch of this drone from fighter jets, which, given the limitations of this task, will most likely remain speculative. However, if this is true, the limitation of the reduced range of this drone compared to the Shahed-136 model will also be eliminated.

    Specifications of Shahed-238 suicide drone:
    Type: Suicide drone
    Country of Origin: Iran
    Unveiled: 2023
    Length: 3.5 meters
    Wingspan: 3 meters
    Engine: Toloue-10 jet engine
    Range: up to 1200 km
    Speed: up to 600 km/h
    Impact speed: + 700 km/h
    Flight ceiling: 30 thousand feet (9144 meters) (equivalent to Shahed-191)
    Flight endurance: 2 hours
    Guidance system: GPS/INS – GNSS
    Warhead weight: 50 kg
    Max take-off weight: 380 kg
    Launch platform: JATO or vehicle-assisted
    Landing type: With parachute

    Shahed 238 suicide drone – click to view in larger size

    More images of Shahed 238 suicide drone:

    Shahed-238 posters in Persian, Russian, Chinese, Arabic and Hebrew:

  • Military Knowledge: Kaman-19 Drone

    Military Knowledge: Kaman-19 Drone

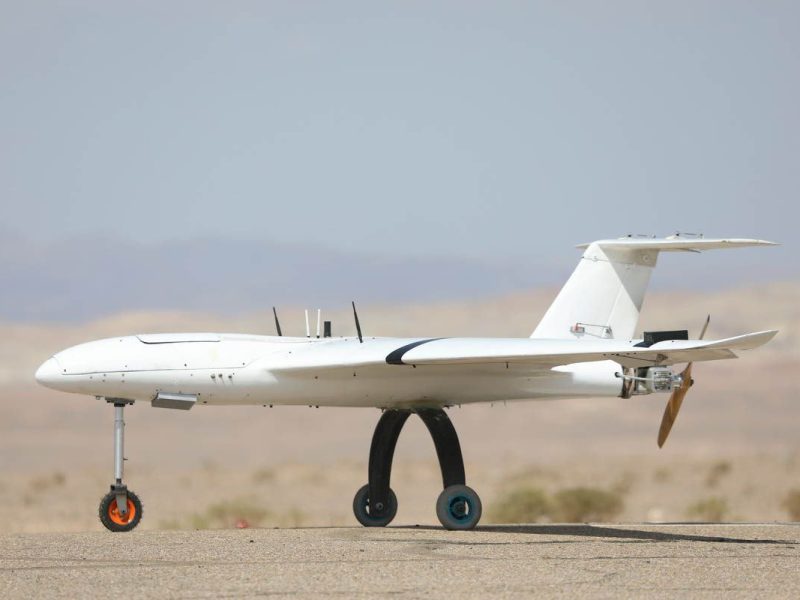

    The Kaman-19 drone, named after the Farsi word for “bow,” is a specialized electronic warfare drone used for information gathering, surveillance, etc.

    It was unveiled during the joint drone exercise of the Islamic Republic of Iran Army in October 2023.

    The Kaman-19 drone, which was showcased for the first time during the joint army exercise, is a simple and very affordable drone while being highly functional.

    Although the drone bears resemblance to the Kaman-12 drone, its overall dimensions are smaller. A T-tail design is used in the rear section. The highly swept wings, along with the use of winglets, reduce the vortex effect at the wingtip, resulting in reduced drag and consequently, less fuel consumption. The design of the drone was chosen to increase the flight endurance of the Kaman-19.

    Using winglet to reduce the fuel consumption of Kaman 19 drone

    The engine used in this aircraft is most likely the DLE 170 or a similar type. This small gasoline engine produces about 17.5 horsepower at 7,500 RPM (revolutions per minute). The Kaman-19 drone has a flight endurance of 24 hours, and considering the small size and low fuel consumption of the engine used in it, it seems acceptable.

    According to the pictures, the DEL170 engine is most likely installed on the Kaman 19 UAV

    The Kaman-19 drone does not have a camera and relies on inertial guidance and GPS for flight control. However, it can be used as a complementary drone to the Kaman-12 to carry bombs and perform reconnaissance with its own optics, as well as perform electronic warfare tasks assigned to the Kaman-19.

    The electronic warfare tasks for the Kaman-19 include radar wave disruption, surveillance, radio communication disruption and so on.

    Specifications of Kaman-19 electronic warfare drone:
    Type: electronic warfare drone
    Origin: Iran
    Producer: Islamic Republic of Iran Air Force
    Unveiled: 2023
    Length: 2 to 2.5 meters
    Wingspan: 4.5 to 5.5 meters
    Height: 1.5 to 2 meters
    Engine: 1x two-cylinder DLE 170 engine with a power of 17.5 horsepower
    Endurance: 24 hours

  • Military Knowledge: Mohajer 10 Drone

    Military Knowledge: Mohajer 10 Drone

    Following the unveiling of the Mohajer-10 drone, in addition to adding a new member to the Mohajer drone series, a new UAV has also been added to Iran’s 2000-kilometer drone series, which will increase the diversity of drone product baskets and consequently increase the combat power of Iran’s armed forces.

    A video of the unveiling of the Mohajer-10 UAV and its flight test

    Design:
    Various organizations, including the Islamic Republic of Iran Army, the Qods Aviation Industries, and Iran Aviation Industries Organization (IAIO) have participated in the manufacturing of Mohajer-10 drone. According to one of the officials of the Ministry of Defence and Armed Forces Logistics, this drone has been designed and developed based on the needs announced by the armed forces, especially the ground and naval forces of the Islamic Revolution Guards Corps (IRGC) and the Islamic Republic of Iran Army.

    At the first glance, the fuselage of this drone has similarities to the United States’ MQ-9 Reaper fuselage. There are also similarities between the body of Mohajer-10 and Kaman 22 (UAV) of the Islamic Republic of Iran Army. The front part and the nose of Mohajer-10 drone is similar to Kaman 22, which is where satellite communication antenna is located.

    Similarity of nose between Kaman 22 and Mohajer 10

    Mohajer-10 drone also has a similar tail to Kaman 22 and uses a combination of three wings. Two V-shaped wings are located on top of the fuselage near the engine and a smaller wing is located under the body.

    Read more: Kaman 22 Combat Drone

    Similarity of the tail between Kaman 22 and Mohajer 10

    The main difference between Mohajer-10 and Kaman 22 is in the shape of their wings. In Kaman 22, wings have a special bend and twist in design but in Mohajer-10 wings have a simpler appearance and more stretch.

    The main point about Mohajer-10 is its landing gear. The rear landing gear on Mohajer-10 drone in the unveiled version is foldable like Shahed-129 drone landing gear. The rear and front landing gear on Mohajer-10 are folded backward and are placed inside the fuselage during flight. The folding landing gear reduces drag during flight, and it reduces fuel consumption and increases flight range.

    Similarity of the rear landing gear of Shahed-29 and Mohajer-10

    However, in a video released of test flight of Mohajer-10 drone, this drone uses fixed rear landing gear. This simple landing gear that was also used in Mohajer-6 drone consists of a metal wire buckle and a flexible holder. The way it works is that due to flexibility of landing gear, metal wire prevents excessive opening of landing gear and flexibility also reduces pressure on structure at the time of landing.
    Therefore, there are two possibilities: The first possibility is that the published video is related to the initial (prototype) and experimental version of Mohajer-10 and it has been completed later. And the second possibility is that the Mohajer-10 drone has two cheap and expensive versions. In the cheap version, it uses simple landing gear and weaker optics, and in the expensive version, it uses foldable landing gear and a stronger camera (the camera used in Shahed-149).

    The prototype version of the Mohajer 10 UAV that uses a fixed landing gear

    Mohajer-10 drone also has the ability to carry a parachute for emergency landing, which seems to have inherited this capability from Mohajer-6 drone. This emergency parachute is located in a separate location behind satellite equipment and its straps are tied in two sections at the tail of the drone and near the engine.

    The parachute for emergency landing

    Given the similarities among Mohajer-10 drone, Kaman 22 UAV and Shahed-129, as well as the participation of the Iranian army among the manufacturers and developers of Mohajer-10 drone, it seems that this drone has benefited from the experience of building capabilities of the IRGC and the Ministry of Defense; so, the cooperation provides Iran’s armed forces with a high-quality and affordable version of the drone series. Most likely, this drone will enter service in bulk in the IRGC and army by repeating the successful experience of Mohajer-6 drone, and it will replace Mohajer-6 and Shahed-129 drones.

    Dimensions:
    The dimensions and size of Mohajer-10 have not been officially announced, but based on available images, we can obtain the dimensions of Mohajer-10 drone. Based on images, which have been released so far, Mohajer-10 will have a length of 9 meters and a height of 2.4 meters, and its wing length will be 14 meters.

    Camera and sensor system:
    Mohajer-10 drone uses a high-quality camera that was previously used on Shahed-149 (Gaza) drone. This system, which is one of Iran’s most advanced electro-optical systems, has a thermal imaging camera and laser rangefinder in addition to a day vision camera with a zoom power of at least 100 to 120 times as well. One of the highlights of this system is the use of catadioptric telescopic lens that multiplies magnification. Using this camera will significantly increase the quality of filming and photography of drones, which is considered a great advantage. In general, electro-optical systems are considered one of the main parts or perhaps the most important part of the drone.

    Read more: Shahed-149 (Gaza) Reconnaissance Combat Drone

    The electro-optical systems and ammunition used in Mohajer-10 drone

    Armaments:
    Mohajer-10 drone has four hardpoints under its wings for carrying ammunition. This drone was carrying three Ghaem-5 precision-guided bombs with optical (TV) guidance, anti-armor Almas missile, and Arman guided air-launched bomb at the time of unveiling (image above). It seems that this drone can carry up to a maximum of eight bombs and missiles.

    Mohajer-10 can carry various types of Ghaem series bombs, various types of Sadid series bombs, Almas anti-armor missile, Arman air-launched glider bombs, and so on.

    Arman guided air-launched bombs are the latest type offered from this class of bombs that have been lightened and optimized for carrying by drones. Given the development of this drone on previous platforms such as Kaman-22 and Shahed-129, there is also a possibility to carry a wide range of weapons on Mohajer-10 such as: electronic warfare pods developed for Kaman-22 drone, Kaman-12 drone, Mohajer-6 drone, Sadid series bombs.

    4 hardpoints under the wings to carry up to 8 missiles and bombs

    Mohajer-10 drone has a flight endurance of 24 hours at an altitude of seven thousand meters and an operational radius of 2 thousand kilometers, and it benefits from a maximum speed of 210 kilometers per hour. The maximum fuel capacity of this drone is 450 liters and its maximum payload weight is 300 kilograms.

    Specifications of Mohajer-10 drone:
    Role: Combat and reconnaissance drone
    Unveiled: 22 August 2023
    Origin: Iran
    Producer: Qods Aviation Industries, and Iran Aviation Industries Organization (AIO)
    Length: 6.5 meters
    Height: 4.2 meters
    Wingspan: 18.2 meters
    Operational range: 2000 km
    Speed: 210 km/h
    Flight ceiling: 7000 meters
    Engine: Piston
    Maximum take-off weight: ~ 1000 kg
    Weapon payload: 300 kg
    Fuel weight: 450 kg
    Hardpoints: 4 under the wings, capable carrying up to 8 missiles and bombs
    Armament: Ghaem series bombs, Sadid series bombs, Almas anti-armor missile, Arman air-launched glider bombs, electronic warfare pods, etc.

    Mohajer 10 long-range drone – click to view full size

    More images of Mohajer 10 drone:

    Infographics of Mohajer 10 UAV in Russian(Мохаджир 10), Arabic(مهاجر 10), Farsi, Azeri(Mühacir 10) and Hebrew(מוהאג’יר 10):

  • Military Knowledge: Shahed 171 (Simorgh) And Shahed Stealth Drones Family

    Military Knowledge: Shahed 171 (Simorgh) And Shahed Stealth Drones Family

    History
    The story of Iranian Simorgh family drones began with hunting “The Beast of Kandahar”. On December 4, 2011, the Iranian Islamic Revolutionary Guard Corps Aerospace Force managed to take control of an advanced US drone named Lockheed Martin RQ-170 Sentinel, known as The Beast of Kandahar. The stealth RQ-170 drone had entered Iran’s airspace to collect information and espionage, and finally, through processes, Iran managed to override its controls and landed it near the town of Bardaskan.

    Iran force-landed RQ-170 near Bardaskan

    In May 12, 2014, during Iran’s Commander-in-Chief’s visit to the IRGC Aerospace Force’s Achievements Exhibition, it was stated that the Iranian Armed Forces had succeeded in obtaining all the software information of this bird and had obtained images from all the bases where this bird was present. During the same visit, it was also announced that a 15% scale version has flown successfully and two 40% and 100% scale versions will be flown in the same year. Also, General Hajizadeh the commander of IRGC Aerospace Force stated that this drone will also be armed with missiles. In November 2014, a video of the successful flight of this bird was published.

    Three drones displayed in the IRGC achievements exhibition in 2014

    In 2016, during Admiral Shamkhani’s visit to the IRGC Aerospace Force achievements exhibition, new variants of this series of UAVs named Shahed 181 were unveiled. Two years later, Shahed 191 was unveiled during the Eghtedar 40 exhibition. It should be noted that both Shahed 181 and Shahed 191 drones are 60% scale version of Shahed 171 drone.

    Different variants of Shahed stealth drones:
    The Shahed stealth drone family includes five combat and reconnaissance types, each of which is measured in terms of its size compared to the RQ-170 or Shahed-171 drone. In this way, the Shahed-171 drone, which is nicknamed Simorgh, is a 100% scale version and completely identical to the RQ-170 Sentinel, and the two Shahed-191 and 181 drones, which carry the nickname of Saegheh, are both 60% scale version of the Shahed 171. In addition to the previous three variants, there are two Shahed-141 and 161 drone, both of which are 40% scale version of Shahed 171 in terms of dimensions.
    It should be noted that there are also two civilian variants of this drone. The first variant is the initial 15% scale version used for flight testing and the second variant is a 60% scale version that is used for cloud seeding. In this way, the number of Shahed-171 stealth drones reaches seven.

    The importance of downing of the RQ-170 was very high, so that after landing this drone, the Iranians realized how much modern technology was used in it at once. Advanced lightweight materials were used in the structure and body of this UAV, and there was a special coating and color on the body. The use of a very advanced engine, an advanced camera with high accuracy and range, and a very advanced synthetic-aperture radar (SAR) are among the other disclosed equipment of this extremely valuable American drone. These features, along with the use of flying wing design, made it one of the most advanced drones in the world.
    Therefore, this drone is considered the most important drone captured by Iran in the last few decades. It can even be considered one of the most important trophies obtained after World War II.

    Shahed-171 (Simorgh):
    Shahed-171 also known as Simorgh, is a 100% scale version of RQ-170, and uses a Toloue-14 turbofan engine. Toloue-14 mini turbofan is the result of turning Toloue-4 mini turbojet engine into a turbofan. Thanks to its turbofan engine, Shahed-171 has reached a flight endurance of 10 hours and a maximum range of 4400 km. The flight ceiling of 40,000 feet (12,000 meters), the maximum take-off weight of 3070 kg and the maximum speed of 460 km/h are other specifications of this drone.
    Like the RQ-170 UAV, Shahed-171 uses a shield for its thermal camera, which reduces its radar cross section.

    The similarity of camera cover in Shahed-171 and RQ-170

    Shahed-171 specifications:
    Role: Reconnaissance
    Length: 4.75 meters
    Wingspan: 13 meters
    Height: 1.2 meters
    Reconnaissance range: 2200 km
    Maximum range: 4400 km
    Flight endurance: 10 hours
    Flight ceiling: 40,000 feet (12,000 meters)
    Engine: Turbofan Toloue-14
    Thrust engine power: 6 kilonewtons
    Maximum speed: 460 km/h
    Cruise speed: Unknown
    Weight: Unknown
    Maximum take-off weight: 3070 kg

    Shahed-171 (Simorgh) drone

    Shahed-181 (Saegheh):
    Shahed-181 drone also known as Saegheh (Lightning), is a 60% scale version of Shahed-171 drone and uses a two-stroke propeller engine. Due to the expensiveness of the Shahed-171 stealth drone, in order to reduce the production cost and also easy mass production, the Shahed 181 drone has been mass produced by removing the landing gear and using a piston engine.
    Shahed-181 has the capability of carrying four Sadid-342 bombs under the body between its skates. Due to having folding wings, Sadid-342 bomb occupies the least space and four of them are easily placed next to each other, and for this reason, it is the best option for use on this drone.

    Shahed-181 takes help from a vehicle to take off. The drone is placed on a special pneumatic launcher on the vehicle. After the vehicle reaches the desired speed, the drone is launched and flies. For landing, Shahed-181 slides on the ground using his skates to stop.

    Shahed-181 specifications:
    Role: Reconnaissance and combat
    Length: 2.7 meters
    Wing length: 7.3 meters
    Height: 0.7 meters
    Combat range: 1150 km
    Maximum range: 3450 km
    Flight endurance: 13 hours
    Flight ceiling: 15000 feet (4572 meters)
    Engine: 80 horsepower piston
    Maximum speed: 220 km/h
    Cruise speed: 150 km/h
    Weight: Unknown
    Maximum take-off weight: 480 kg
    Maximum weight of fuel and cargo: 165 kg
    Take off type: By vehicle
    Landing: By skate
    Armament: 4 smart bombs

    Shahed-181 (Saegheh) drone

    Shahid-191 (Saegheh 2):
    Shahed-191 drone also known as Saegheh 2, like the Shahed-181 is a 60% scale version of Shahed-171. But Shahed-191 uses a turbojet engine instead of a piston engine. The radar cross-section in Shahed-191 is smaller due to the use of a turbojet engine, and Sadid bombs are placed inside the body of the drone.

    Shahed-191 uses a mini turbojet engine with a power of 1078.8 newtons, which is known as Turbojet 894, or a Toloue-10 turbojet engine with a power of 1100 to 1200 newtons. It is worth noting that the 894 turbojet engine was manufactured by the IRGC Aerospace Force and the Toloue-10 turbojet engine was manufactured by the Iran’s Ministry of Defense.

    Shahed-191 has a higher flight ceiling as well as greater stealth profile, and for this reason, an internal place for carrying weapons has been designed to help the stealthy features of this drone during combat missions. Saegheh 2 has the ability to carry two Sadid-342 bombs in its internal weapons bay.

    Based on the published images, it seems that this drone uses the Oghab 4 electro-optic system.


    A type of SAR radar called Absar has been developed specifically for this drone, which is installed in camera place and provides the possibility of searching for objects in the form of 3D imaging.

    Shahed-191 specifications:
    Role: Reconnaissance and combat
    Length: 2.7 meters
    Wing length: 7.3 meters
    Height: 0.7 meters
    Combat range: 500 km
    Maximum range: 1500 km
    Flight endurance: 4.5 hours
    Flight ceiling: 30000 feet (9144 meters)
    Engine: Turbojet 894 or Toloue-10
    Thrust engine power: 110 kg of force (1078.8 newtons)
    Maximum speed: 350 km/h
    Cruise speed: 200 km/h
    Weight: Unknown
    Maximum take-off weight: 500 kg
    Maximum weight of fuel and cargo: 230 kg – 10 kg of optical cargo and 100 kg of weapons in weapon bay
    Take off type: By vehicle
    Landing: By skate
    Armament: 2 smart bombs

    Shahed-191 (Saegheh 2) drone

    Shahed-161:
    Shahed-161 is a 40% scale version of Shahed-171 drone. This drone uses a small and unannounced micro-turbojet engine. In the description provided for Shahed-161, the type of cargo is announced a seeker and warhead. This information strengthens the possibility that this variant is a suicide drone. If Shahed-161 is a suicide type of the Simorgh family, it must be said that this suicide drone is very a expensive one and therefor will be used to hit special targets such as air defense systems. The thermal seeker of Shahed-161 is installed on the wing and the right side of the engine, and when the UAV dives, it gets a better view of the ground.
    One of the characteristics of Shahed-161 is the possibility of different launch. Due to the lightness of this drone compared to other types, a pneumatic launcher has been used, which makes it possible to launch this drone faster from the vehicle. It is also possible to use this technique on other members of the Simorgh family that fly from the vehicle. This drone can also land with the help of a recovery parachute or skates.

    Shahed-161 specifications:
    Role: Reconnaissance and suicide
    Length: 1.9 meters
    Wingspan: 5.13 meters
    Height: 0.71 meters
    Combat range: 150 km
    Maximum range: 300 km
    Flight enduracne: 3 hours
    Flight ceiling: 25000 feet (7620 meters)
    Engine: HKS microjet
    Engine power: 40 kg of power
    Maximum speed: 350 km/h
    Cruise speed: 150 km/h
    Weight: Unknown
    Maximum take-off weight: 170 kg
    Maximum weight of fuel and cargo: 40 kg
    Cargo: Seeker and warhead
    Take off type: Pneumatic launcher
    Landing: By skate, recovery parachute

    Shahed-161 drone

    Shahed-141:
    Shahed-141 drone has not been officially unveiled yet. This drone is a 40% scale version of Shahed-171. According to the information provided at the IRGC achievements exhibition in Isfahan, Shahed-141 has a Wankel 783 engine with a power of 32 horsepower, and thanks to the capacity of carrying 90 kg of cargo, it can carry a high-quality camera and a 12-hour flight endurance for reconnaissance missions.

    Shahed-141 specifications:
    Role: Reconnaissance
    Length: 1.9 meters
    Wingspan: 5.13 meters
    Height: 0.4 meters
    Reconnaissance range: 1300 km
    Maximum range: 2600 km
    Flight endurance: 12 hours
    Flight ceiling: 15000 feet (4572 meters)
    Engine: Wankel 783 piston 32 hsp
    Maximum speed: 220 km/h
    Cruise speed: 150 km/h
    Weight: Unknown
    Maximum take-off weight: 200 kg
    Maximum weight of fuel and cargo: 90 kg
    Take off type: Pneumatic launcher
    Landing: By skate, recovery parachute

    Shahed-141 drone

    15% scale version of Shahed-171:
    Information and a picture of this variant are not available, but it can be pointed out that this variant is the first sample made during the reverse engineering of the RQ-170 UAV. Making a 15% scale version of RQ-170 has helped to better understand the flight structure of this drone, and this has accelerated the build process and use of the Shahed family of stealth drones.

    Samavat drone:
    The Samavat drone was showcased for the first time at the IRGC Achievements Exhibition in Birjand. This drone is equivalent to the Shahed-161 drone and is used for cloud seeding.
    According to published information, the Samavat drone can be used for surveillance and combat missions, and for this purpose, it is possible to separate the silver iodide holding rods from the drone. Except for the body length of 1.7 meters, which is given in the Samavat banner, the rest of the specifications are very similar to Shahed-161.

    Combat history
    The Shahed family of stealth drones have been widely deployed in the IRGC Air Force and have carried out a large number of reconnaissance and combat operations so far. But the first combat operation that has been officially confirmed is related to the use of Shahed 181 and 191 drones on June 18, 2017 in Operation Laylat al-Qadr against ISIS in Syria. It should be noted that due to the confidentiality and sensitivity, most of the missions of this category of drones are not officially announced.

    Shahed 171 And Shahed Stealth Drones Family – click to view full size

    Posters of “Shahed 171 And Shahed Stealth Drones Family” in Russian (Шахед 171), Arabic, Kurdish, Azeri (Şahid 171), Hebrew (שאהד-171), Chinese (见证者-171) and Persian:

  • Military Knowledge: Arash-2 suicide drone; World’s longest-range suicide drone!

    Military Knowledge: Arash-2 suicide drone; World’s longest-range suicide drone!

    Arash-2 suicide drone with a range of 2000 km is considered the longest-range suicide drone in the world. There is a smaller version of this drone called Arash-1 with a range of 150 km, which is designed to attack nearby targets on the battlefield. In fact, Arash-2 suicide drone is an upgraded and improved version of Arash-1.

    Arash-2 drone was unveiled and used for the first time in the Army drone exercise in January 7, 2021. In this exercise, this done was launched from the coast of Makran and after traveling a distance of about 1400 km, it hit its target in the general area of the exercise in Semnan province in the center of Iran.

    Arash-2 looks identical to Kian-2 drone and has a triangular wing. The main difference between these two drones is their engine. Kian uses a jet engine and Arash uses a piston engine. This engine difference has also had a great impact on their range.

    Kian-2 drone with jet engine

    So far, Arash-2 has been launched in exercises by two types of launchers. The first type by a JATO launcher and the other by a box launcher that can be mounted on the back of a truck. The box launchers will make the drone more difficult to identify and along with the high mobility, it will increase survivability of truck and the crew.

    Arash-2 long-range suicide drone launched from a box launcher with a rocket booster

    Arash-2 suicide drone was seen on the army drone fleet in July 2022. Therefore, the ability to use anti-ships and also attack from the sea to the shore can be considered for Arash.

    At the Army’s “1401 Achievements Exhibition”, the Arash-2 drone equipped with an infrared and electro-optical seeker was seen, which gives this bird additional capabilities. Arash-2 drone with infrared and electro-optical seeker will be able to destroy various targets with high accuracy. Therefore, with various seekers, in addition to fixed targets, this drone has the ability to target moving targets or targets that need to be accurately hit in the enemy’s area.

    Arash-2 suicide drone equipped with infrared and electro-optical seeker

    According to the published photos and the information of the permanent exhibition of the achievements of the Ministry of Defense, the Arash-2 drone engine is of the MD 550 or MDSO-4-520 tempest type with a power of 50 horsepower. Therefore, according to the type of engine, this drone will have a maximum speed of 185 km/h.

    Arash-2 suicide drone specifications:
    Length: ~ 4.5 meters
    Wingspan: ~ 4 meters
    Service ceiling: 3657 meters
    Engine: MD550 or MDSO-4-520 tempest with 50 horsepower
    Maximum speed: 185 km/h
    Range: 2000 km
    Weight: ~ 200 kg
    Origin: Iran

    Click to view full size

    More pictures of Arash-2 suicide drone

    Collection of posters of Arash-2 suicide drone in Russian (Дрон-камикадзе Араш-2), Persian (پهپاد انتحاری آرش-۲), Chinese (Arash-2 自杀式无人机), Hebrew (מזלט התאבדות ארש-2), Arabic (المسيرة الانتحارية آرش-2), Azeri (Arəş-2 Kamikadze Dronu) and Kurdish (درۆنی خۆکوژی ئارەش-2):

  • Military Knowledge: Mohajer-6 Reconnaissance Combat Drone

    Military Knowledge: Mohajer-6 Reconnaissance Combat Drone

    Mohajer-6 combat reconnaissance drone is a medium-class drone manufactured by the Iran’s Ministry of Defense. This drone was first officially unveiled in April 2017 during the visit of the President of Iran to the Defense Achievements Exhibition of the Ministry of Defense.

    Mohajer 6, as the newest member of the Mohajer drone family, has been deployed in the Ground and Naval Forces of the Islamic Revolutionary Guard Corps (IRGC), the Islamic Republic of Iran Army Ground Forces, and the FARAJA organization (the Law Enforcement Command of the Islamic Republic of Iran).

    Iran started marketing for the sale of Mohajer-6 drone at the MAKS 2019 International Exhibition in Russia.

    This drone can be considered as Iran’s most successful export drone. Mohajer-6 has been exported to Iraq (Hashd al-Shaabi) and Ethiopia. Mohajer-6 and Qaem bomb series have performed very well in Ethiopia.

    Read more: From where does Ethiopia procure its drones?

    Mohajer 6 UAV in the service of Iraq’s Hashd al-Shaabi

    Mohajer 6 UAV in the service of the Ethiopian army

    In Venezuela, a replica of Mohajer-6 was first seen, and then a sample of it was produced in this country. There is no information available about the Venezuelan sample.

    Mohajer 6 UAV replica with Qaem bomb series in Venezuela

    Mohajer-6 drone uses a rectangular body with a wide and sharp tip. Its simple rectangular wings are located on the upper part of the body and its tail has a High Boom Tail configuration. This drone is powered by a 3-blade Rotax 912 piston engine. The Mohajer-6 drone has a forward-looking camera at its tip, which enables continuous monitoring of the drone’s path independently of the camera below the drone.

    Camera in the nose of Mohajer-6

    So far, Mohajer-6 with Oghab-4 electro-optical system has been seen in two versions, H and D, both of which are equipped with a day vision camera with 36x optical zoom, a laser rangefinder and a cooling thermal camera.

    Oghab 4 optical systems in three types

    The Oghab 4H electro-optic system has a focal distance of 15 to 300 mm and weighs 18 kg, and the Oghab 4D system has a focal distance of 60 to 120 mm and weighs 19 kg. As a result, the Oghab 4 system in the H version has a better field of vision and resolution.

    Oghab 4H optic installed on Mohajer-6

    Oghab 4D camera installed on Mohajer-6

    Also, images of a new camera with 60x zoom for this drone have been released, which shows Iran’s progress in making advanced electro-optic systems for drones.

    Video of a new electro-optic with 60x zoom that can be installed on Mohajer-6. In the footage, due to the visible landing gear, this optic is probably being tested on Ababil-4.

    The guidance and control system of Mohajer-6 drone is placed on a truck, which allows it to be moved quickly.

    The control room of Mohajer-6 drone

    Interior view of Mohajer-6 control room

    Unfortunately, the weight information of Mohajer-6 has not been officially announced. In the early days of the introduction of this drone, due to the installation of two Qaem-5 bombs, its carrying capacity was stated by the media as 40 kg; But this number was not correct, because the weight of Qaem-5 has not been officially announced. Considering the similarity of dimensions and front wings of Qaem-5 bomb and Sadid-345 bomb, if the weight of its warhead has not changed, due to the presence of fixed rear wings, the weight of Qaem-5 bomb should be slightly heavier than Sadid-345 (34 kg).

    However, a poster of Mohajer-6 has been published in the permanent exhibition of the defense achievements of the Islamic Revolutionary Guard Corps, which stated that the weapons payload was 100 kg and the gross weight was 600 kg.

    Mohajer-6 poster in the permanent exhibition of the defense achievements of the Islamic Revolutionary Guard Corps

    Also, at the ARMY 2022 exhibition, the Ministry of Defense of Iran published a catalog of its defense products, which published the specifications of Mohajer-6 under the title M6, and stated that the weapons payload is 100 kg, and the maximum gross weight is 670 kg.

    Mohajer-6 catalog at the ARMY 2022 exhibition

    Therefore, according to the picture of Mohajer-6 with four Qaem-5 bombs, the weight of this bomb should not be more than 25 kg because the total weight of the bombs will be more than 100 kg. Also, a picture of Mohajer-6 drone has been seen in the Army’s 313 underground base (Strategic Drone Base 313) loading a Qaem-5 bomb along with a 3-tube launcher for Hydra rockets.

    The picture of Mohajer 6 in the Army’s 313 underground base

    The weight of each Hydra rocket is 6.2 kg, and if we assume that the rocket launcher is 15 kg (due to its small size and lightening), the weight of the whole package should be 33.6 kg. And if we consider the weight of Qaem-5 as 20 kg, it means a weight combination of 53.6 kg for one wing and 107.2 kg for both wings, which means a weight of more than 100 kg. Therefore, the maximum weapons payload for this drone is more than 100 kg, which has not been officially announced yet. So the maximum weapons payload can be considered 150 kg.

    Considering that the announced numbers in two official events are different, we can conclude that we are dealing with two types of Mohajer-6 with different powers. In addition, Mohajer-6 has undergone changes in the front and rear landing gear. There may have been some changes to reduce the weight of Mohajer-6. There is also a possibility that the type that has been provided to the army has increased its carrying capacity.

    Mohajer 6 front and rear landing gear

    The Mohajer-6 combat reconnaissance drone can carry a wide range of indigenous weapons. This drone has the ability to carry Qaem bombs series, Sadid bombs and missiles family, Almas missile and the ability to carry Hydra rockets, which gives this drone high firepower.

    Read more: Military Knowledge: Sadid Smart Bombs and Missiles

    Mohajer 6 drone has the ability of carrying Tiam 1400 systems with a weight of 5 kg and Taha 1400 systems with a weight of 6 kg. Tiam 1400 and Taha 1400 are detection and warning and electronic warfare systems. First, the Tiam 1400 radar detection and warning system performs detection and identification of the enemy’s radar waves, then the data about the radar is transferred to the Taha 1400 electronic warfare system so that the Taha 1400 acts to disrupt the enemy’s radar waves.

    Mohajer 6 with the installation of two systems Tiam 1400 and Taha 1400 and banners related to these two systems

    Also, an unknown pod has been spotted on Mohajer-6 drone at Army’s Strategic Drone Base 313, whose nature we do not know. This pod was also used in Kaman-12 drone.

    Unknown pod installed on Mohajer-6 drone

    The operational records of the Mohajer-6 drone are many, but only a few footage have been published in the media. As an example, we can refer to the operations against terrorists in the northwestern borders of Iran in July 2019.

    The use of Mohajer 6 against terrorists in the northwestern borders of Iran – July 2019

    The missions assigned to the Mohajar-6 combat reconnaissance drone include aerial reconnaissance and surveillance, destruction of fixed and mobile targets on land and sea and in all weather conditions day and night with high accuracy, monitoring and control of borders and coastal strip, and the possibility of carrying all kinds of Military cargo with the ability to land and take off conventionally from the runway and emergency recovery with a parachute.

    Mohajer-6 and the use of Qaem-5 bombs and the explanation of the Iran’s Minister of Defense about this drone

    Ammunition that Mohajer-6 can carry:
    Bombs: 4 Sadid-342 with a range of about 3 km, 2 Sadid-345 with a range of about 3 km, 4 Qaem-1 with a range of about 6 km, 4 Qaem 5 or 9 with a range of about 12 km

    Missiles: 2 Sadid-1 with a range of about 7 km (not seen but possible to install), 4 Akhgar missiles with a range of about 30 km (not seen but possible to install), 4 Almas missiles with a range of about 6 km (from In terms of weight, it is possible to carry more, but there is no proper hardpoints), 2 Qaem-114 missiles with a range of 8 km (not seen but it is possible to install)

    Rocket: 2x 3-tube rocket launchers for Hydra 70 mm rockets

    Electronic warfare systems:
    “Tiam 1400” radar wave detection and warning system and “Taha 1400” radar wave jamming system

    It is possible to use a combination of above weapons and systems.

    Some of the mentioned weapons have not been seen on Mohajer-6. But due to the nature of the weapon design and use on other Iranian drones, it is also mentioned here. Other weapons such as Azarakhsh and some weapons related to helicopters can also be installed, but in order to use these weapons, changes are needed, such as creating a proper fuselage to install heavy weapons on the drone.

    Mohajer-6 reconnaissance combat drone specifications:
    Length: 7.5 meters
    Wingspan: 10 meters
    Height: 1.9 meters
    Operational range: 2400 km
    Service ceiling: 5486 meters
    Endurance: 12 hours
    Engine: Rotax 912 115 hp
    Speed: 200 km/h
    Hardpoints: 2, with the possibility of converting to 4
    Gross weight: 670 kg
    Weapons payload: ~ 150 kg
    Origin: Iran

    Click to view full size

    Mohajar-6 combat reconnaissance drone posters in Russian, Chinese, Hebrew, Arabic, Azeri, Kurdish and Persian:

    More Images of Mohajer-6 combat reconnaissance drone:

  • Iran Army Tests Drones in Large-Scale Exercise + Video

    Iran Army Tests Drones in Large-Scale Exercise + Video

    On August 24, the 1401 joint drone exercise of the Islamic Republic of Iran Army began with the presence of the Army’s Ground Force, Navy, Air Force and Air Defense Force in the north, south, west and center of the country and with the participation of more than 150 drones.

    On the first day of this exercise, the surveillance and reconnaissance drones successfully performed the operation of monitoring the country’s borders and identifying the desired targets in the general area of the exercise.

    According to Rear Admiral Seyed Mahmoud Mousavi, the spokesman of the joint military drone exercise, the Yasir, Sadeq, Pelikan, Ababil 3, Yazdan and Mohajer 6 drones were sent to identify targets and also to monitor the desired areas on the borders and international waters.

    Iran Army’s 1401 joint drone exercise

    In the continuation of the main stage and on the second day of this exercise, Kaman, Mohajer and Ababil drones, using indigenous accurate and pinpoint weapons, including Qaem bombs, Almas missiles and MK-82 bombs, targeted the simulated positions of enemy like the command and control centers, fuel tanks, ammunition dumps, radar and missile systems and gathering places with high accuracy.

    Iranian military experts and technicians have in recent years made substantial headways in manufacturing a broad range of indigenous equipment, making the armed forces self-sufficient in the arms sphere.

    Iranian officials have repeatedly underscored that the country will not hesitate to strengthen its military capabilities, including its missile power, which are entirely meant for defense, and that Iran’s defense capabilities will be never subject to negotiations.

    Iran Army’s 1401 joint drone exercise
